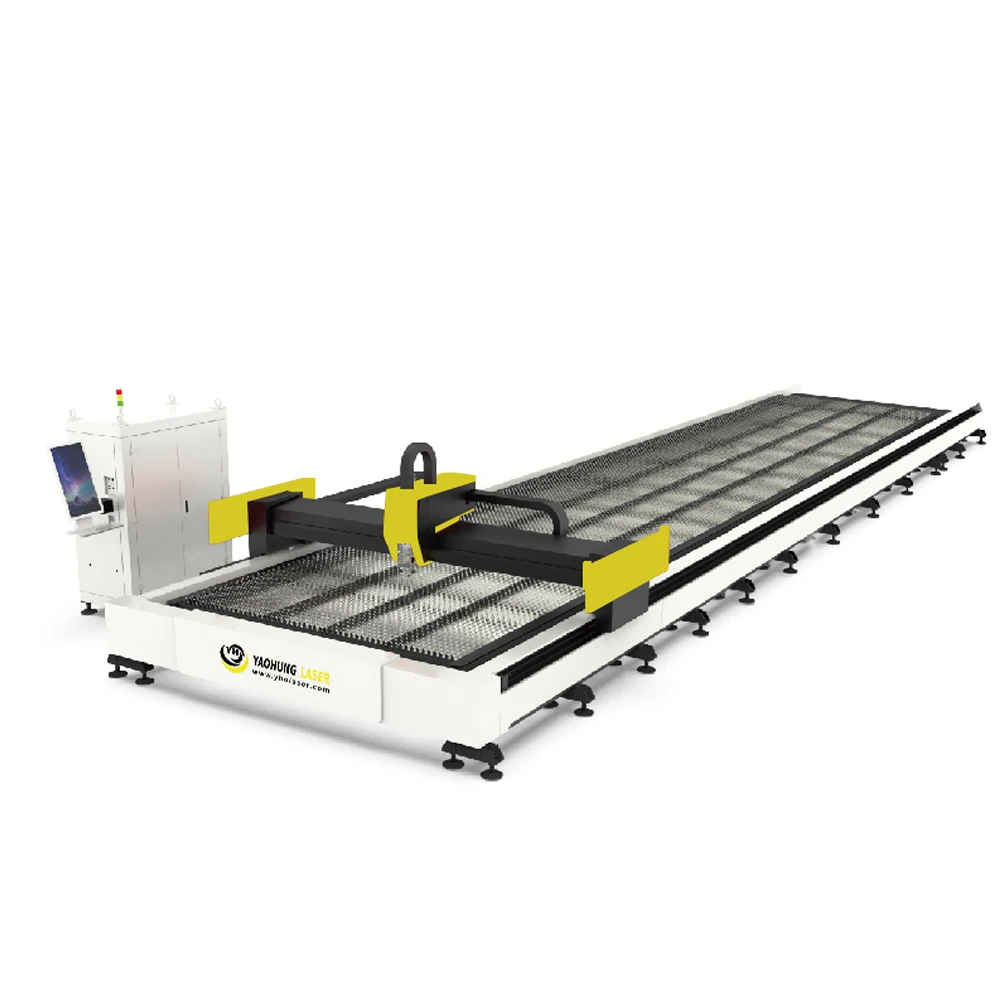

Large Sheet Metal Cutting Machine - Floor-Track Model

YH-FCM3060LD / YH-FCM3560LD

Applicable materials and industry applications

Suitable for various metals and alloys.
Widely used in industries such as sheet metal processing, mechanical equipment, electrical appliances, steel structures, enclosures for electronic devices, elevator manufacturing, shipbuilding, and metal signage.

CATALOG

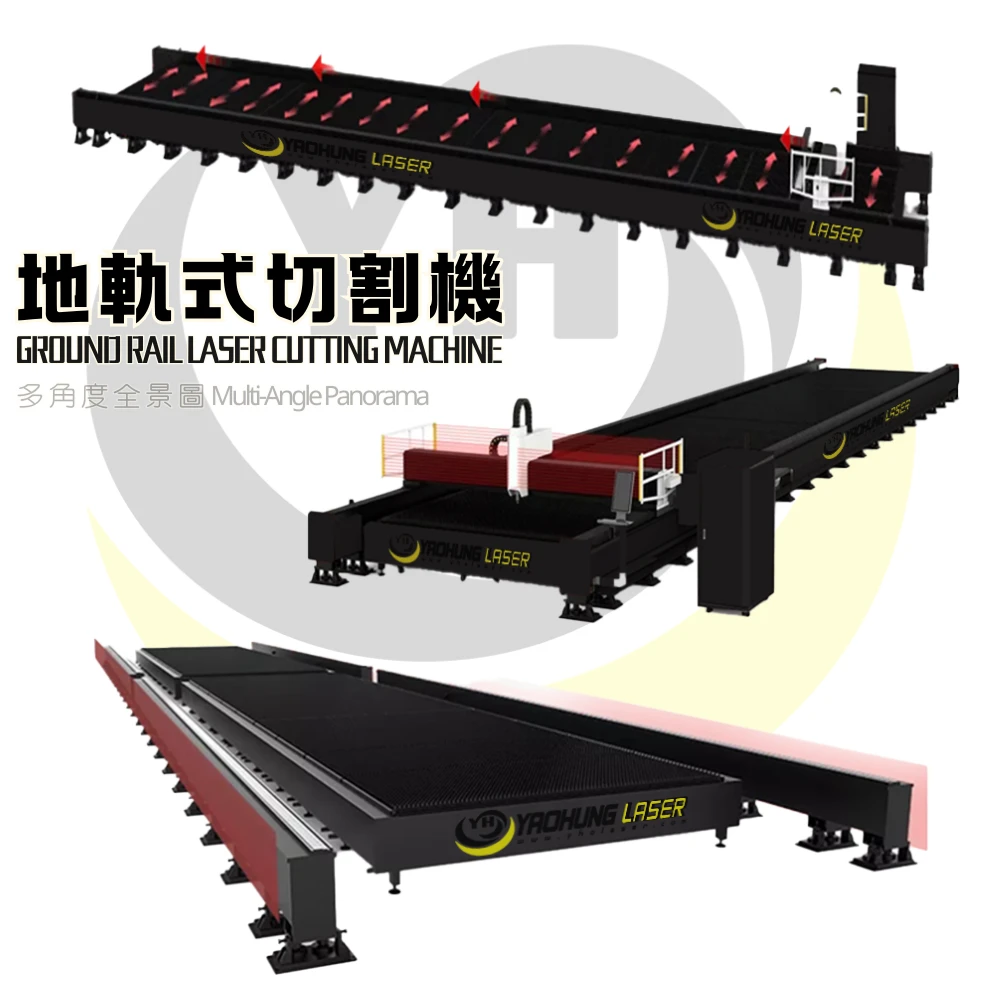

Large Format Rail-Type Fiber Laser Cutting Machine

Heavy-Duty Gantry Module and Bed Design

The heavy-duty gantry modular machine tool, with a bed and worktable modular design, ensures high dynamic performance and an extended service life. Stability is increased by 65% compared to similar products, meeting the load-bearing requirements for thicker plates.

Precise Safety Grating and Smoke Extraction Design

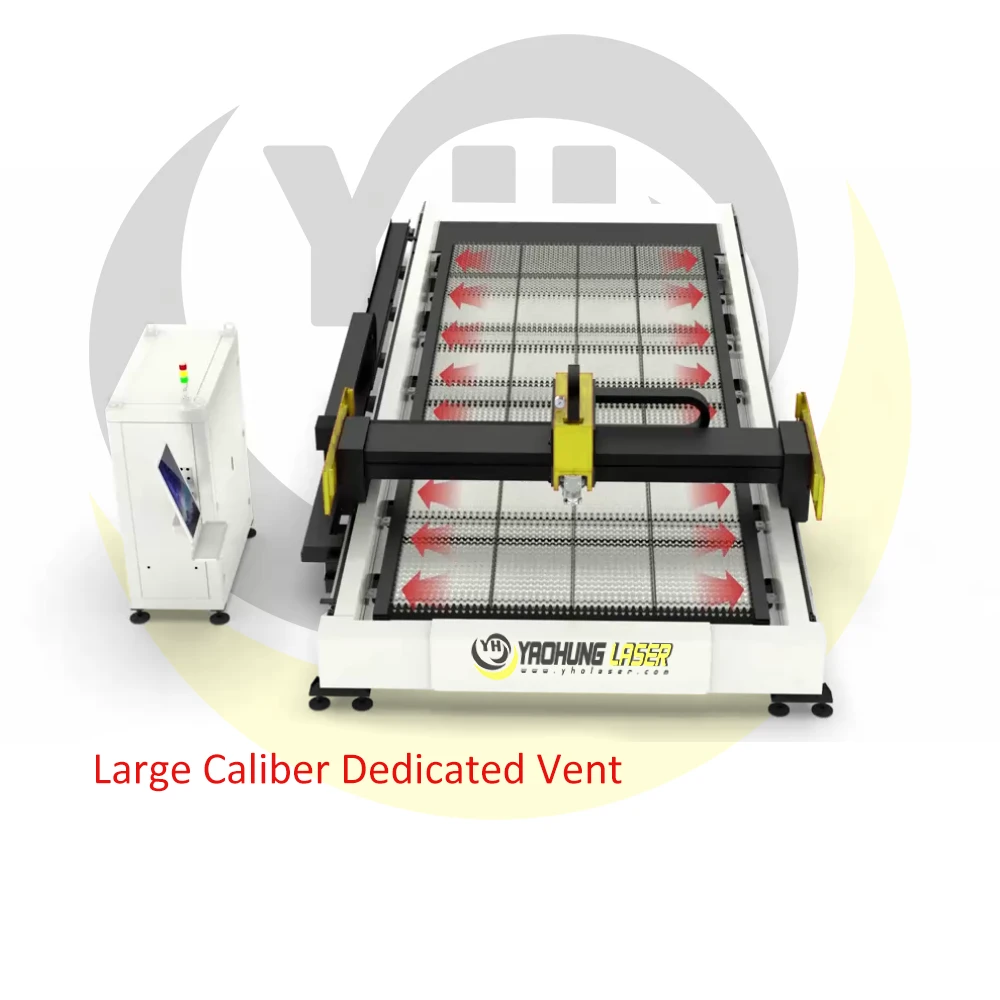

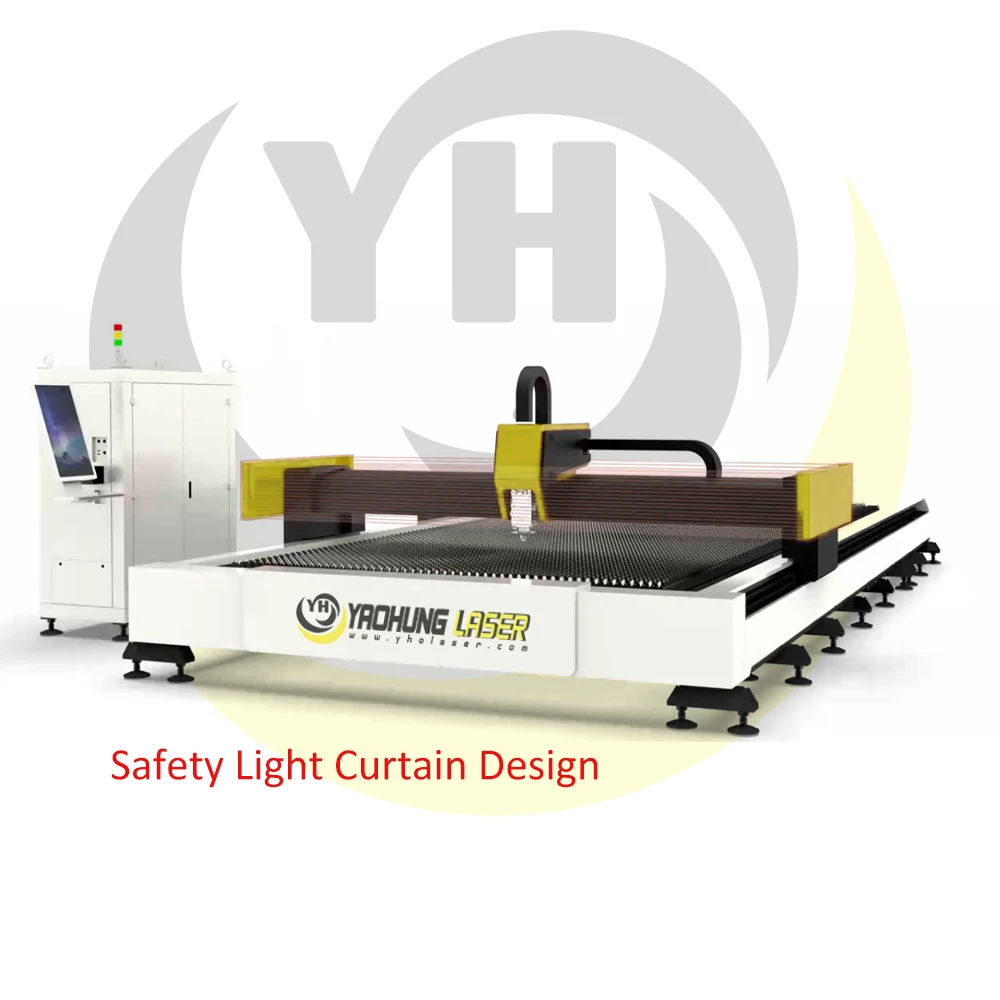

The machine is equipped with a safety grating design, with additional beams in the front and rear to protect operators from collisions with the cutting beam. Each section of the bed features a large-diameter specialized exhaust port, which automatically closes following the cutting head. This ensures precise and powerful smoke extraction, maintaining a clean and safe working environment.

High-End Laser Source and Stable Cutting Head

Featuring a high-end stable laser source with high electro-optical conversion efficiency and anti-reflective capabilities, the optical path remains constant for 24-hour continuous operation. The cutting head is equipped with lens contamination monitoring and protective lens positioning monitoring, providing real-time IO alarms to ensure a stable and reliable cutting process.

High-Precision Control System and User-Friendly Interface

The machine is equipped with a professional CNC system that offers sensitive and high-precision mechanical control. The user interface is simple and intuitive, making it easy for operators to get started, improving production efficiency.

Premium Components and System Support

Laser power can be adjusted according to material thickness, paired with a premium fiber laser and high-power laser-specific control software, ensuring real-time monitoring of the equipment's operating status for stable and efficient performance. Precision ground-grade gear racks, dust-proof steel belt guide rails, and planetary reducers guarantee high precision and long service life.

High-Efficiency AC Servo Motors and Drive System

The machine utilizes a bus servo system, featuring fast response and real-time monitoring capabilities. It offers stable and reliable operation with a long lifespan. Paired with an intelligent dual-temperature, dual-control constant temperature cooling system, it is ideal for long-term high-intensity operations, providing stable production support for enterprises.

Large Format Rail-Type Fiber Laser Cutting Machine

aircuttingeffect-largebedrail-typecuttingmachine

oxygencuttingeffect-largebedrail-typecuttingmachine

nitrogencuttingeffect-largebedrail-typecuttingmachine

Operational Demonstration

【YaoHung耀鋐科技】地軌式雷射切割機-加重型龍門模組式機床　#machine #cnc #metal #cuttingmachine #industrial #precision

耀鋐科技｜雷射板金切割機｜雷射設備_板金切割實錄

Large Sheet Metal Cutting Machine - Floor-Track Model Technical Specifications
Model	YH-FCM3060LD	YH-FCM3560LD
Processing Area	3020mm×6050mm	3520mm×6050mm
Positioning Accuracy	± 0.04 mm
Maximum Travel Speed	≤ 100 m/min
Maximum Acceleration	≤ 1.2 G
Cutting Head Focal Length	Depends on the wattage
Table Load Capacity (per table)	≤ 6 tons	≤ 7 tons
Laser Power	12000 W
Total Power of Machine	12000W (380V_75KW)
Standard Safety Devices	Laser Abnormal Alarm, Cutting Anomaly Alarm, Water Chiller Abnormal Alarm, Low Gas Pressure Alarm, Automatic Rail Lubrication Feature, Automatic Dust Removal System
Laser Head	Auto-Focus / Manual Focus
Cutting Gas	Oxygen / Nitrogen / Air (self-provided)
Screen Size	17～21 inches
WIFI Remote Functionality	Optional
Control Operating System	Baichu Operating System (other systems optional)
Bed Material	Welded bed
Machine Dimensions LengthWidthHeight ±3% (mm)	460088001700	410088001700
Total Machine Weight ±3%	7 tons	8 tons
Machine Size Configuration	Customizable cutting machine configurations available
