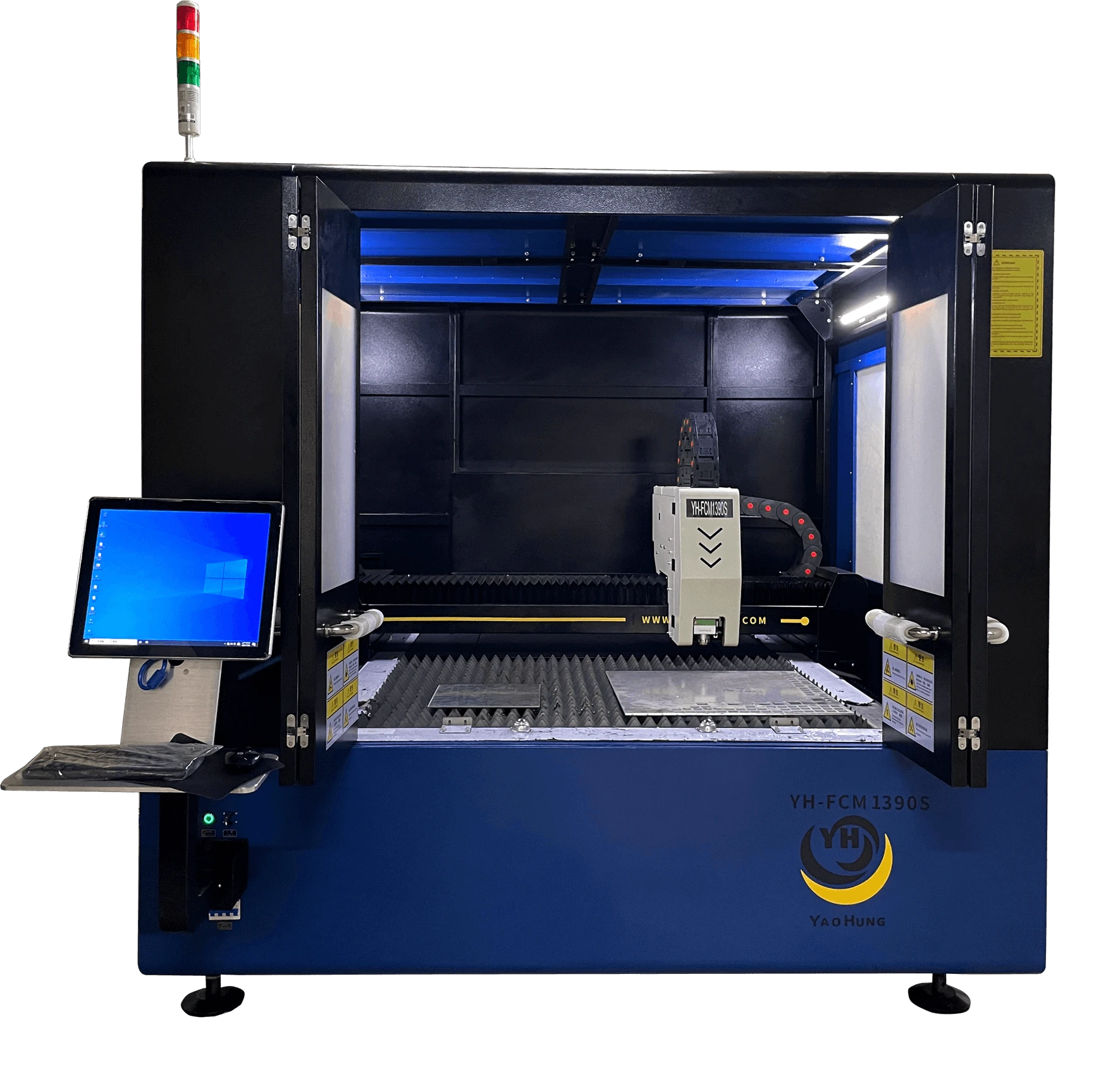

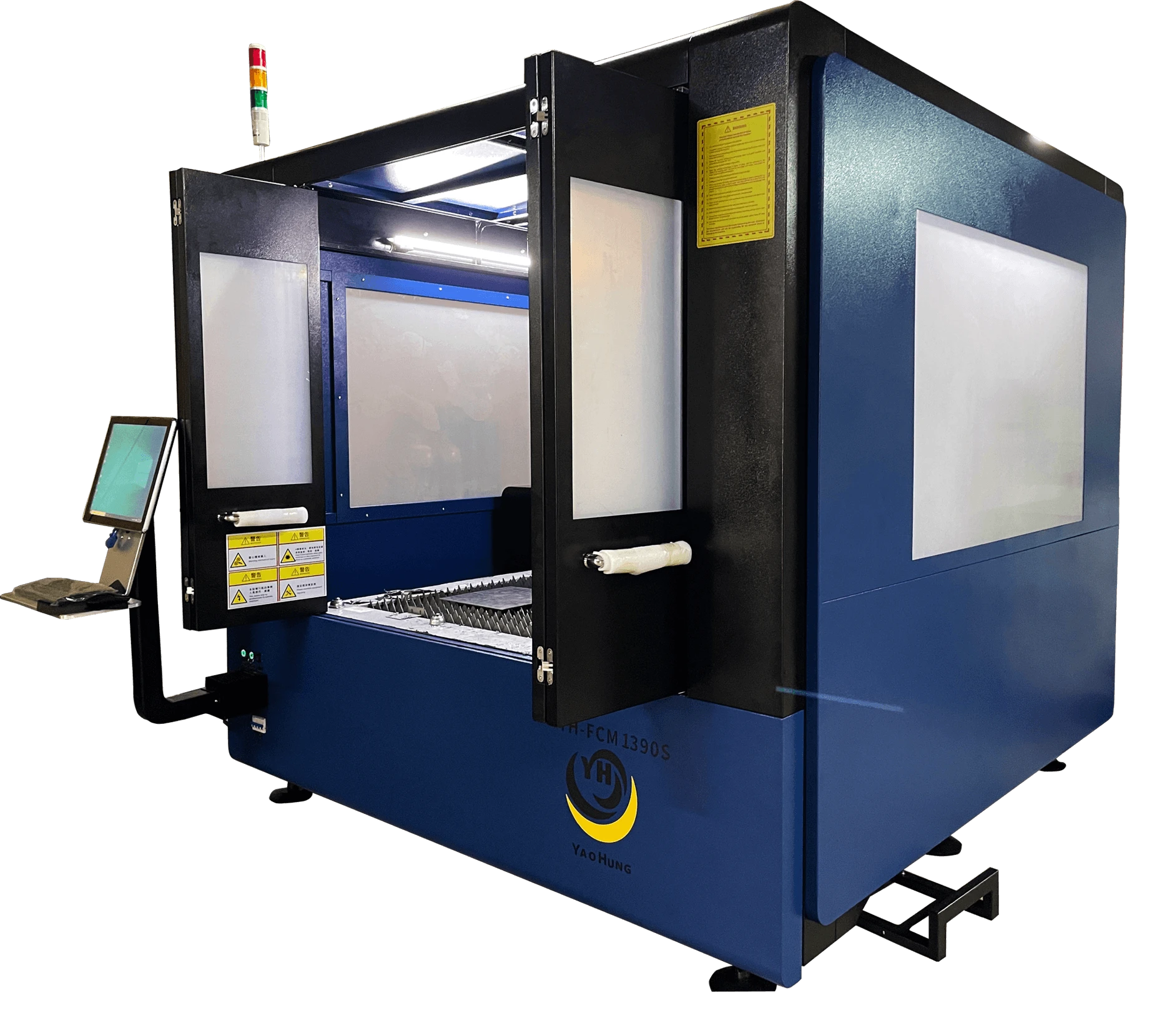

Mid-Size Sheet Metal Cutting Machine - Tabletop Model

YH-FCM6060S / YH-FCM9060S / YH-FCM1390S

Applicable materials and industry applications
  • Suitable for various metals and alloys.
  • Widely used in metal crafts, hardware products, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys and advertising industries.

Machine Features

  • Good casting performance, cutting performance, not easy to deform, long service life.

  • The material has high carbon content, good shock absorption, and facilitates high-speed movement during processing. It can achieve various types of high-speed cutting under the condition of meeting the accuracy.

Product Advantages

  • High precision, fast speed, narrow slit, small light spot, smooth cutting surface without barb, no contact between the laser head and plate material, no scratches, no deformation. The efficiency of Sheet Metal Laser Cutter is twice as high as CO2 Laser Cutter with the same power, and the photoelectric conversion efficiency is three times higher.

Sample display
Operational Demonstration
Technical Specifications
Model YH-FCM6060S YH-FCM9060S YH-FCM1390S
Processing Range 600*600 mm 900*600 mm 1300*900 mm
Positioning Accuracy ±0.02 mm
Max Movement Speed 60-70 m/min
Max Acceleration 1.6 G
Focal Length of Cutting Head 125 mm

Table Load Capacity (Single Table)

90kg 100kg 200kg
Laser Power 1500W ~ 3000W
Total Machine Power 1500W (220V_17KW)
2000W (220V_19KW)
3000W (380V_28KW)
Standard Safety Protection Fully Enclosed
Standard Safety Devices Laser Abnormal Alarm, Cutting Anomaly Alarm, Water Chiller Abnormal Alarm, Low Gas Pressure Alarm, Automatic Rail Lubrication Feature, Automatic Dust Removal System
Laser Head Auto-Focus / Manual Focus
Cutting Gas Oxygen / Nitrogen / Air (Self-Supplied)
Screen Size 17~21 inch
WIFI Remote Function Optional
Control Operating System Baichu Operating System (Other Systems Optional)
Bed Frame Material Welded Bed Frame
Machine Dimensions
L*W*H ±3% (mm)
2080*1530*2030 2080*1830*2030 2380*2230*2030
Total Machine Weight
±3%
1200kg 1500kg 1800kg
Machine Size Configuration Customizable Cutting Machine Available
