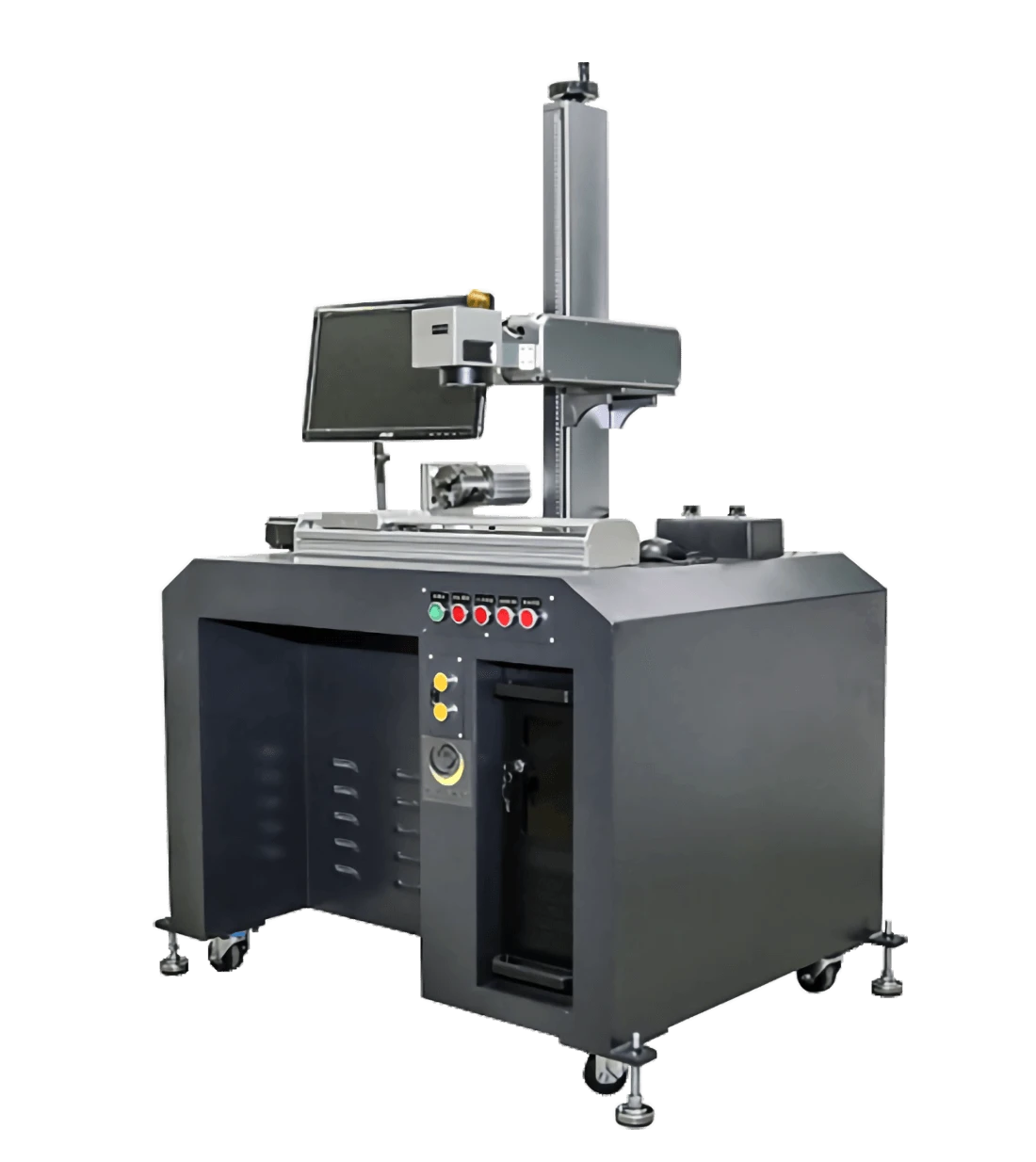

Laser-marker-01

Multifunctional CO2 laser marking machine-SYNRAD

YH-03_LECG / YH-06_LECG / YH-08_LECG

Applicable materials:
  • Can be engraved a variety of non-metallic materials, widely used in acrylic, wood, leather, fabric, EVA, paper, rubber, textiles, fabrics, bamboo products, plastics, tiles, marble, jade, crystal, shells and other non-metallic products.
INQUIRE
VIDEO
CATALOG

Machine Features

  • Can be used with automated production line operations, custom specifications for easy operation.。

  • Compatible with CorelDRAW, AutoCAD SAF, DXF, AI, and other formats for drawing software output.

  • It can replace LOGO, batch number, text, graphics, serial number, 2D barcode, etc. on various materials.

Product Advantages

  • Air cooled cooling system.

  • Chinese interface.

  • Clear marking, not easy to wear, high engraving efficiency, environmental protection, energy saving.

  • Marking precision is high, speed is fast, engraving depth can be controlled, not easy to wear

  • High laser power. Applicable to a variety of materials for engraving.

Sample display

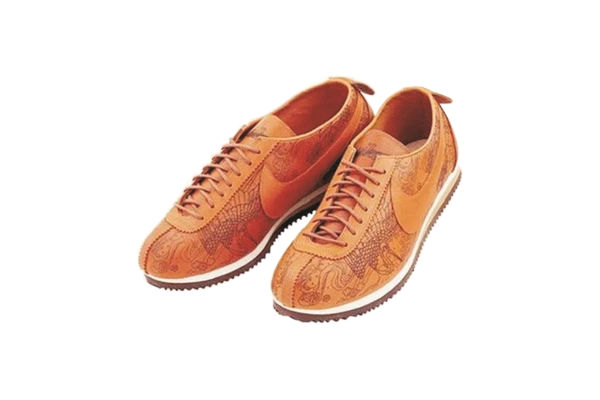

co2-01

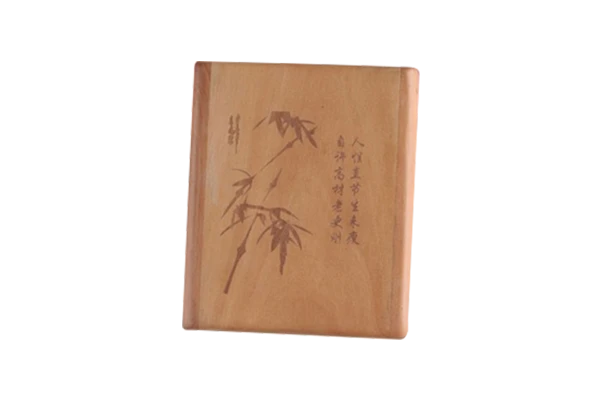

co2-02

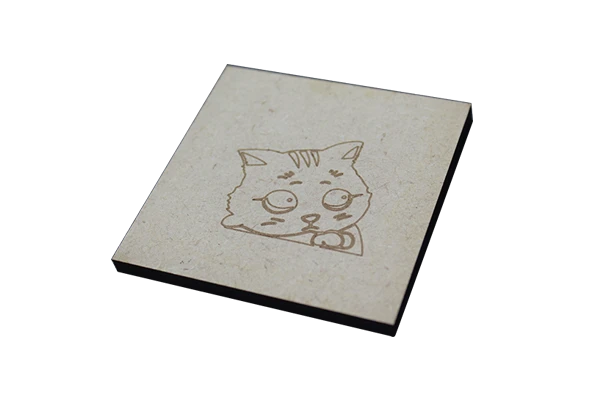

co2-03

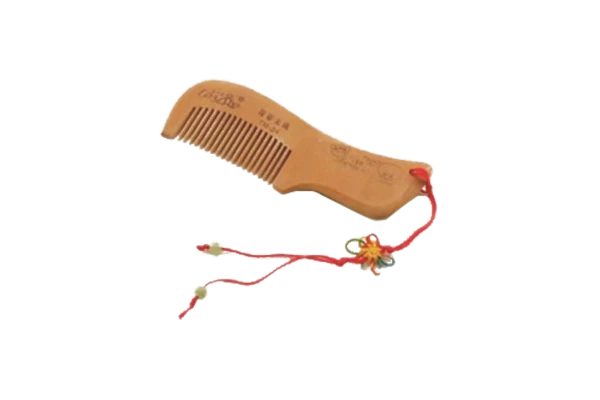

co2-04

SYNRAD-American New Talent
Model YH-03_LECG YH-06_LECG YH-08_LECG
Laser Power 30W ～ 80W（Customizable High Wattage）
Laser wavelength 10.6μm
Beam quality <1.3
Marking range 70×70mm
110×110mm
(Various options)		 70×70mm
110×110mm
150×150mm
(Various options)		 110×110mm
150×150mm
200×200mm
(Various options)
Engraving depth ≦0.3mm　 (depending on material and focusing lens)
Engraving line speed ≦ 3000 mm/s
Minimum line width 0.08 mm
Minimum characters 0.15 mm
Repeat accuracy ±0.02
Exclusive operating software
  1. Can control X, Y, Z motion axes and rotation axes, FPK, PPK, R05 first pulse suppression.
  2. 1 set of IO communication ports, which can communicate with PLC.
  3. Supports 1-axis encoder input and can perform flight marking function.
  4. Built-in DSP, marking operation does not occupy computer CPU time.
  5. The input signal is 24V and can be directly connected to PLC.
  6. Provide MARKING READY, MARKING END, MARKING BUSY and other signals.
  7. Provides offline marking control, which can control the marking preview and counting of 16 files, 64 layers, and a total of 1024 graphics.
  8. It has functions such as scalable large picture surface, 2.5D, 3D, XY platform control, large picture splicing, and automatic visual alignment.
Power supply 220V / 60Hz
Power consumption of the whole machine 650W-850W
Model size (±5) Small cabinet is about 760*600*1600mm (800mm Z axis)
The large cabinet is about 1000**1000*1600mm (800mm Z axis)
Unit weight (±5) Small cabinet is about 110kg / large cabinet is about 150kg
Supported file formats All fonts/fonts in Windows operating system fonts
