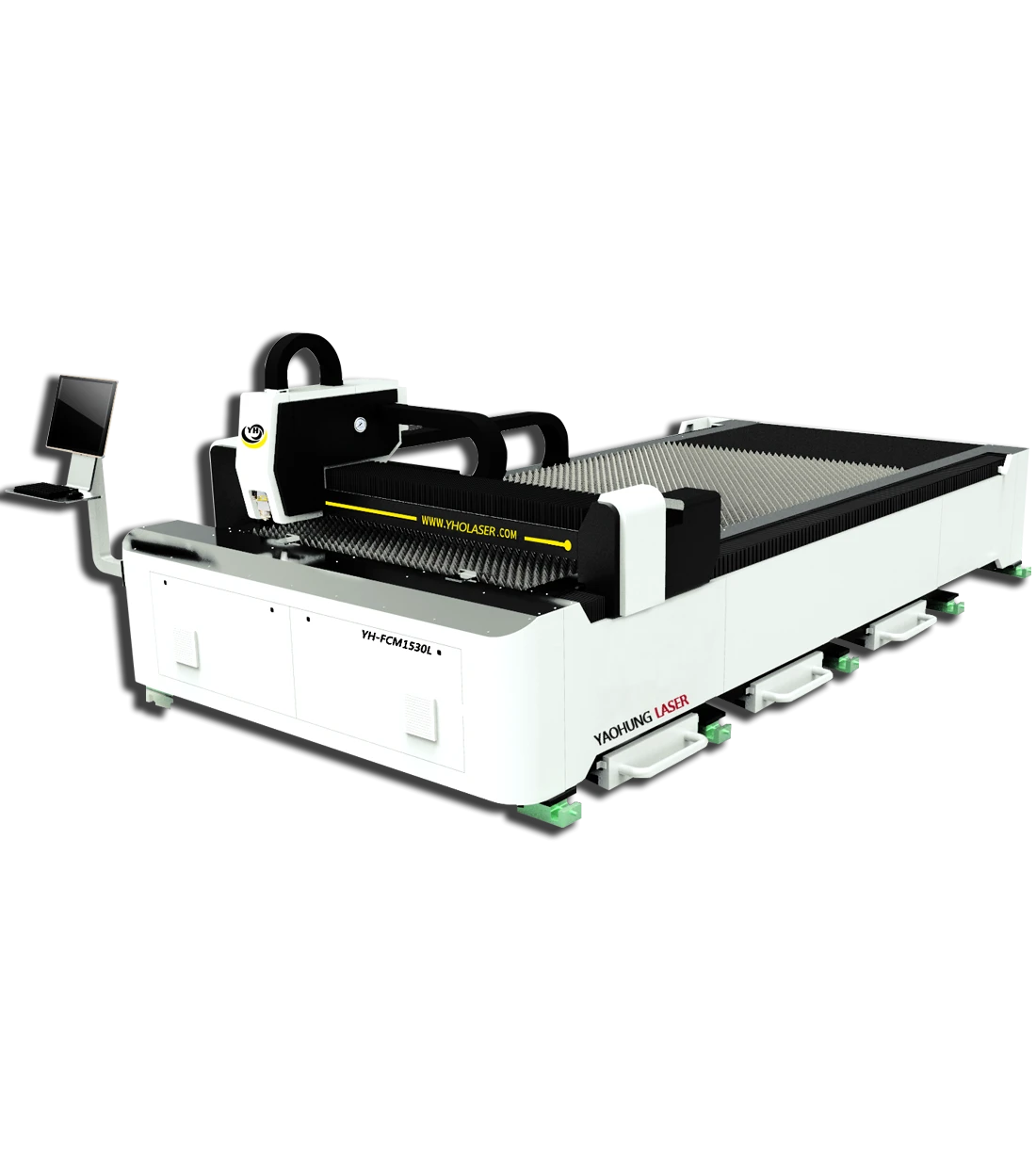

Large Sheet Metal Cutting Machine - Single Bed

YH-FCM1325L / YH-FCM1530L / YH-FCM2040L

Applicable materials and industry applications
  • Suitable for various metals and alloys.
  • Widely used in metal crafts, hardware products, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys and advertising industries.
INQUIRE
CATALOG

Machine Features

  • The machine can be equipped with autofocus laser head, the focal spot can be automatically adjusted. It's convenient and accurate.
  • The cutting copper nozzle on the laser head can be quickly replaced for cutting different thickness plates.
  • The cutting table designed for large-area engraving and cutting allows users to cut or engrave on materials of different thicknesses at will.
  • It's an economical equipment with stable performance and easy operation, achieving high-quality and high-performance processing results for various industries.

Product Advantages

  • High precision, fast speed, narrow slit, small light spot, smooth cutting surface without barb, no contact between the laser head and plate material, no scratches, no deformation. The efficiency of Sheet Metal Laser Cutter is twice as high as CO2 Laser Cutter with the same power, and the photoelectric conversion efficiency is three times higher.

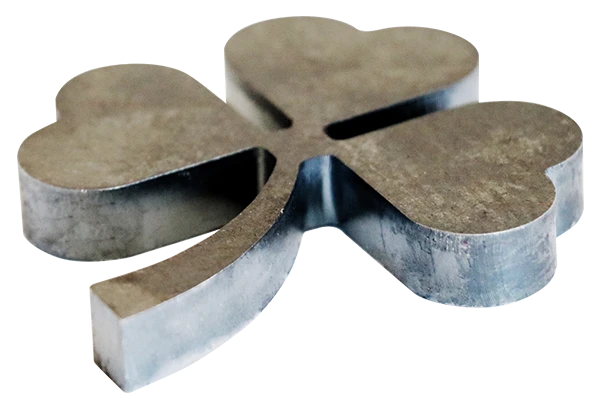

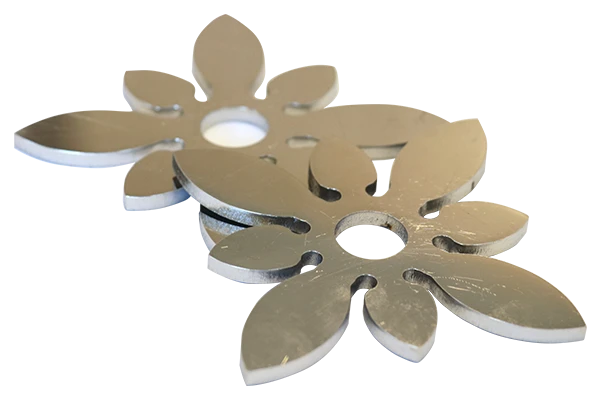

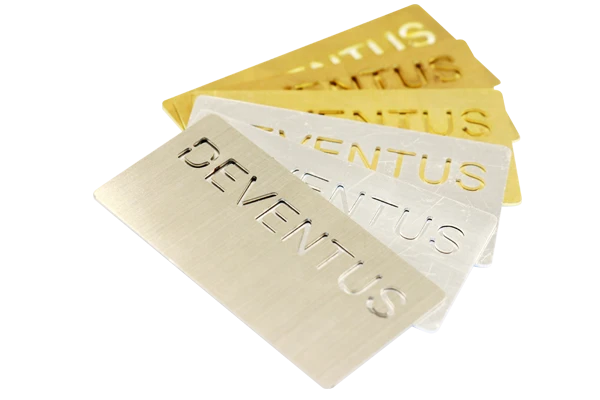

Sample display
1
2
3
4
Operational Demonstration
youtube-y-gzigg18eg

耀鋐科技｜雷射板金切割機｜雷射設備_板金切割實錄

youtube-2hmetabwnme

耀鋐科技｜雷射板金切割機｜應用_鍍鎳鋼切割


Large Sheet Metal Cutting Machine - Single Table Technical Specifications
Model YH-FCM1325L YH-FCM1530L YH-FCM2040L
Processing Range 1300*2500mm 1500*3000mm 2000*4000mm
Positioning Accuracy ± 0.03 mm
Maximum Travel Speed 60-110 m/min
Maximum Acceleration 1.2 ~ 1.5 G
Focal Length of Cutting Head 125 mm

Table Load Capacity (per table)

 1200kg 1500kg 1800kg
Laser Power 1500W to 12000W
Total Machine Power 1500W (220V_17KW)
2000W (220V_19KW)
3000W (380V_28KW)
6000W (380V_38KW)
12000W (380V_66KW)
Standard Safety Devices Laser Abnormal Alarm, Cutting Anomaly Alarm, Water Chiller Abnormal Alarm, Low Gas Pressure Alarm, Automatic Rail Lubrication Feature, Automatic Dust Removal System
Laser Head Auto-Focus / Manual Focus
Cutting Gas Oxygen / Nitrogen / Air (self-provided)
Screen Size 17～21 inches
WIFI Remote Function Optional
Control Operating System Baichu Operating System (Other systems optional)
Bed Material Welded bed
Machine Dimensions
Length*Width*Height ±3% (mm)		 3980*2600*1500 4480*2800*1500 5480*3300*1500
Total Machine Weight
±3%		 2500kg 3000kg 4000kg
Machine Size Configuration Customizable cutting machine sizes available
