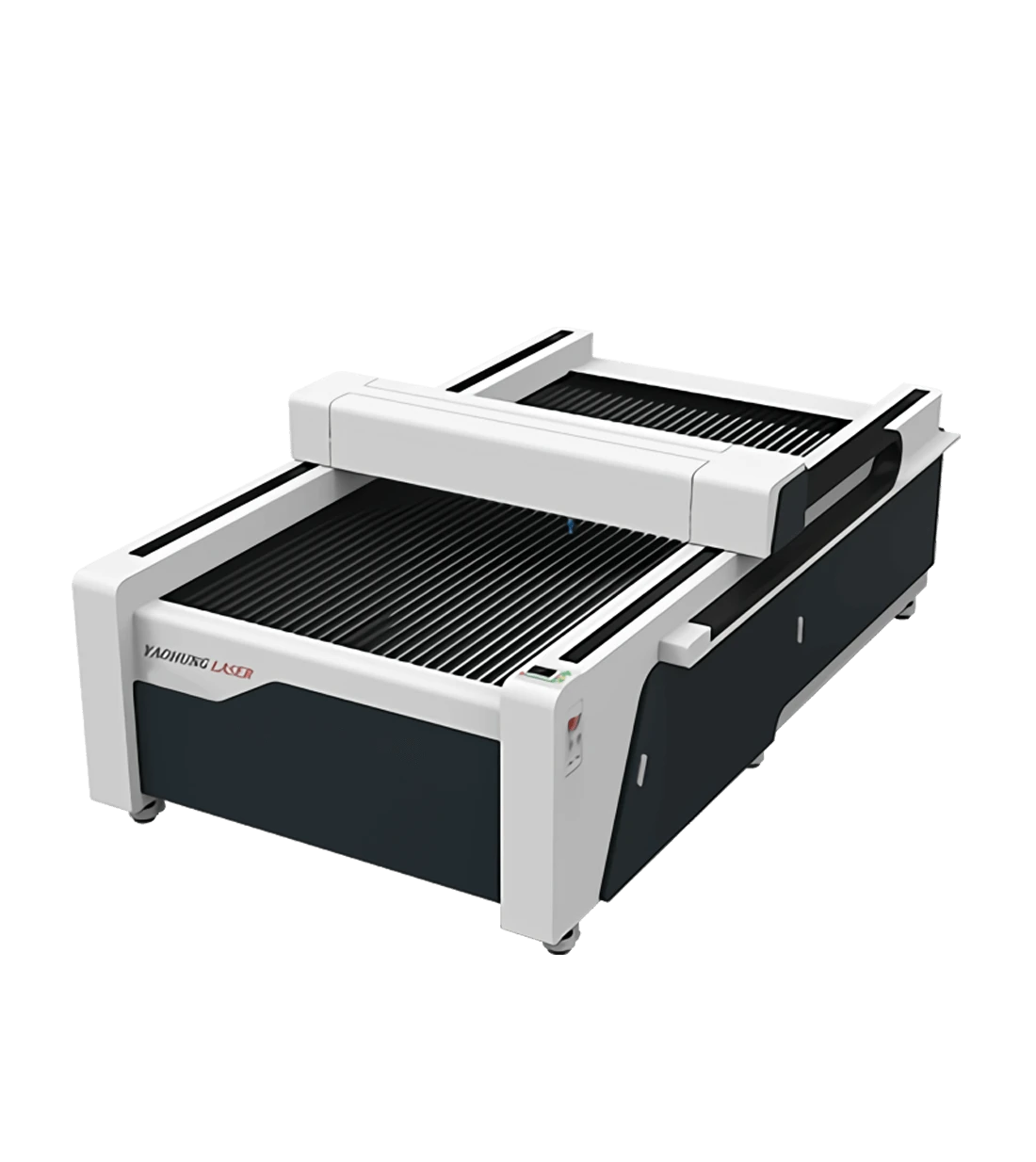

Laser-Cutting-L

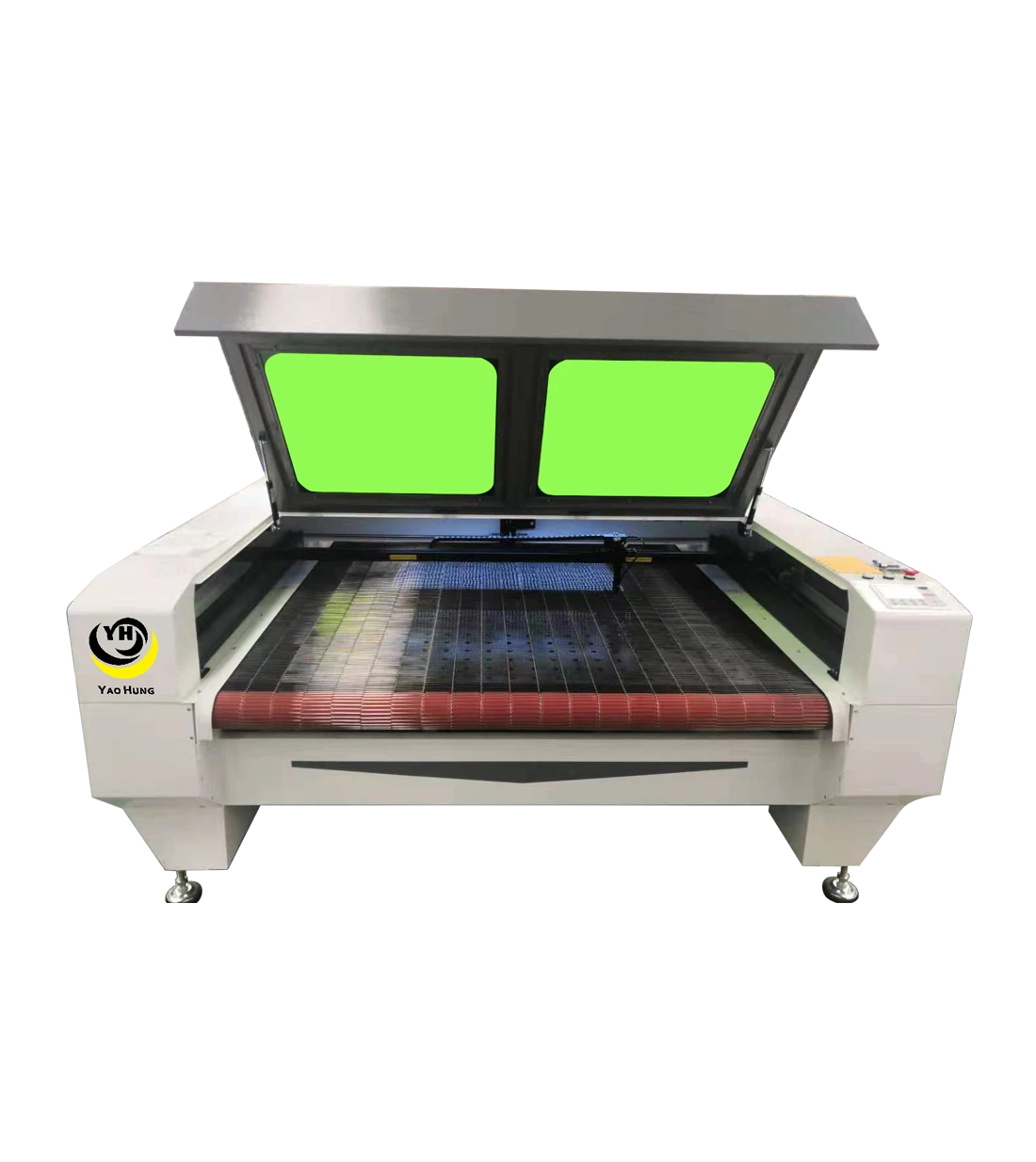

Lasercutting-L-2

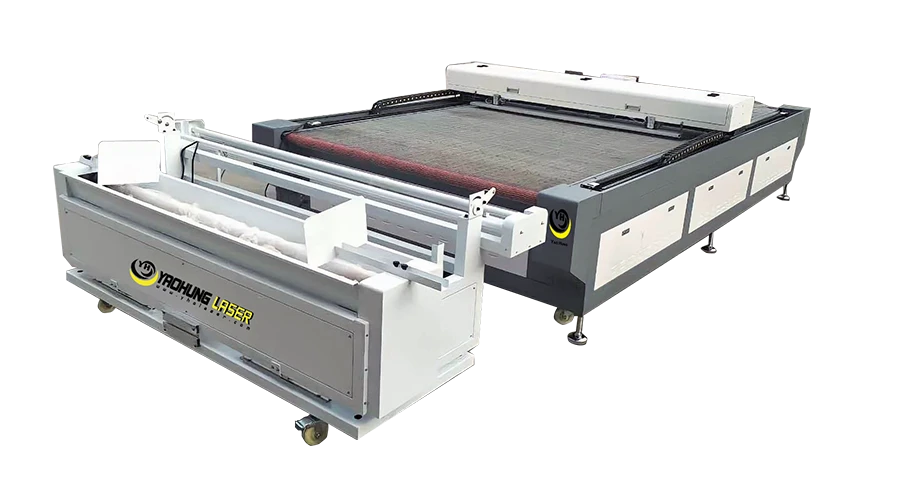

1625Automaticfeeding

Large bed automatic feeding cutting machine

YH-CM1815AF／YH-CM1325AF／YH-CM1625AF

Applicable materials
  • Suitable processing materials, including PC, PE, ABS, EVA, wood, bamboo, plexiglass, glass, wine glass, leather, cloth, paper, rubber, shell, buttons, plastic, rubber, tile, crystal, jade and other non-metal materials .
INQUIRE
CATALOG
Machine features

  • Custom specifications are easy to operate.

  • Compatible with CorelDRAW, AutoCAD SAF, DXF, AI, and other formats for drawing software output.

  • Economical equipment, stable and easy to operate, to achieve high-quality and high-performance processing results for various industries.

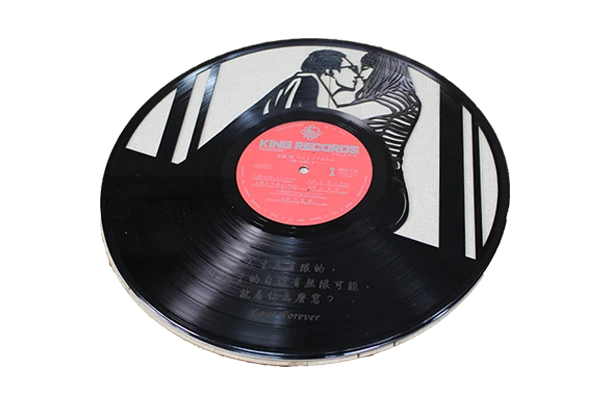

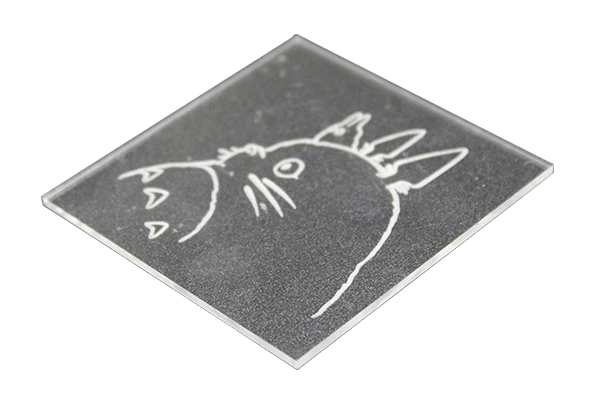

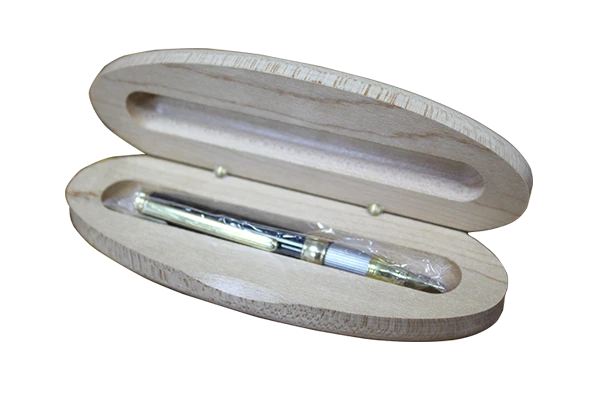

Sample display

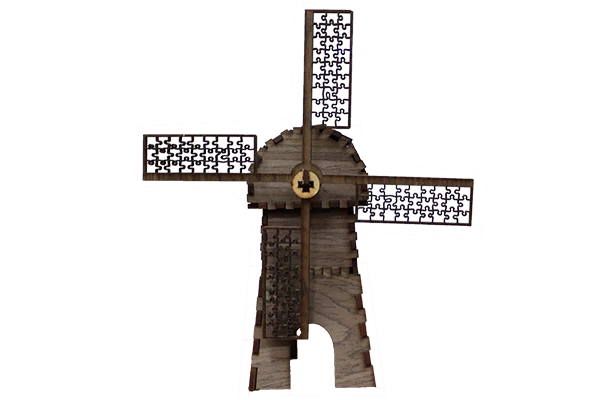

01

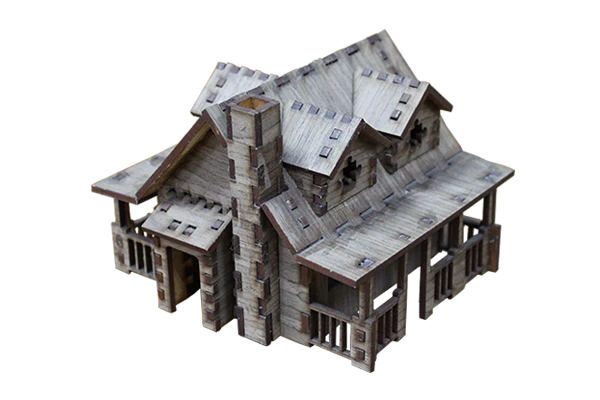

02

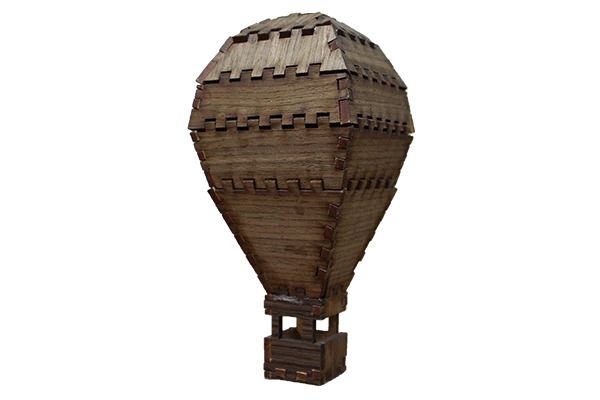

03

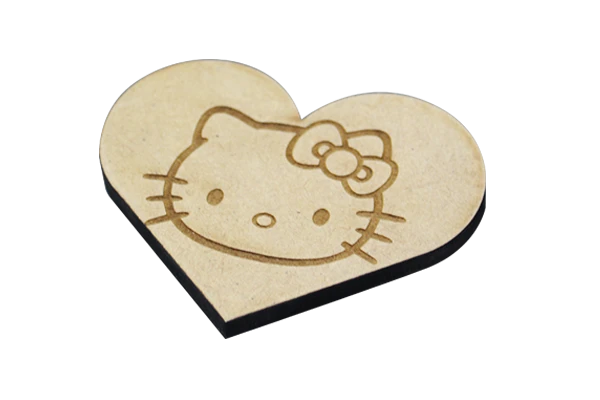

04
05
06
07

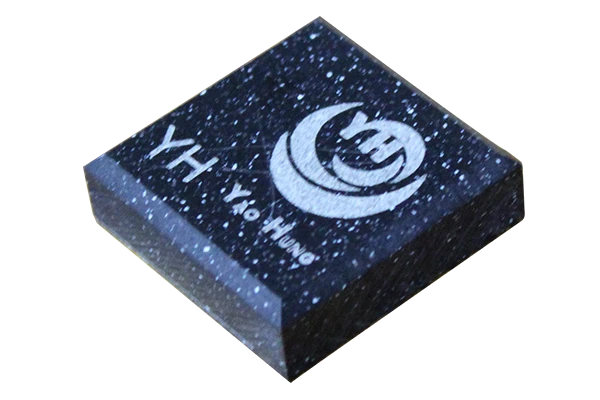

08

Large Bed Automatic Feeding Cutting Machine
Model YH-CM1815AF YH-CM1325AF YH-CM1625AF
Laser Type Sealed CO2 Laser Tube
Laser Power 100W / 130W / 150W / 180W
Engraving Area 1800×1500mm 1300×2500mm 1600×2500mm
Engraving Speed 0～60,000 mm/min
Positioning Accuracy ±0.03 mm
Repeat Positioning Accuracy ±0.01 mm
Operating Voltage AC220V ±10, 60Hz
Total Power ＜1,650W
Minimum Formed Text English 1 x 1 mm
Supported Graphic Formats PLT, AI, DXF, DST, DSB, BMP, JPG, GIF, PNG, MNG, etc.
Cooling Method Forced Water Cooling and Protection System
Auxiliary Devices Exhaust Fan and Smoke Pipe
Control Software 32-bit DSP Control System
Compatible Software

CorelDraw／AutoCAD／EngraveLab／Illustrator／GCad
Machine Dimensions
Length*Width*Height ±3% (mm)		 1930*1850*1120
(Material Rack Approx. 1000*1850*900)		 3180*2020*1250
(Material Rack Approx. 1000*2020*900)		 3180*2320*1250
(Material Rack Approx. 1000*2320*900)
Total Machine Weight
±3% (kg)		 Approx. 700 kg Approx. 1050 kg Approx. 1150 kg
Machine Configuration Options Customizable Cutting Table Available
