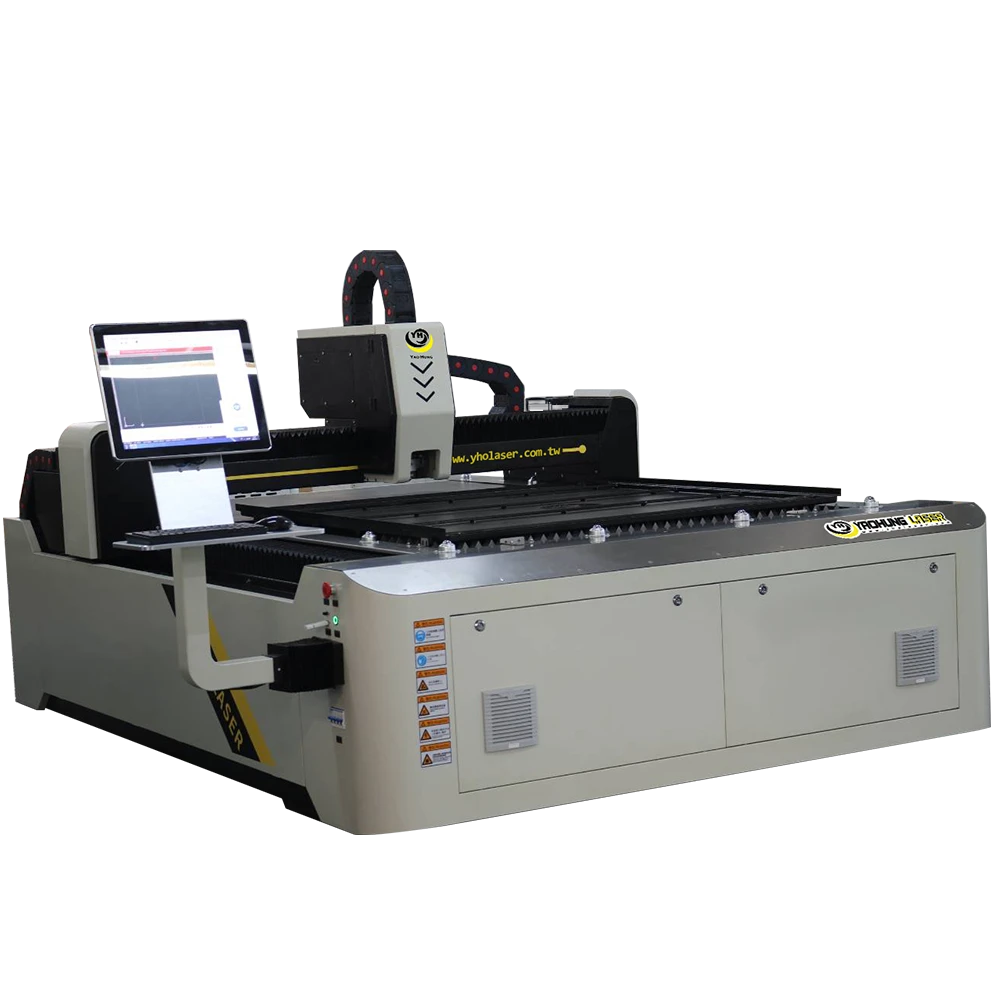

Medium-Sized Sheet Metal Cutter - Tabletop Design

YH-FCM1390L / YH-FCM1313L / YH-FCM1515L

Applicable materials and industry applications

Suitable for various metals and alloys.
Widely used in metal crafts, hardware products, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys and advertising industries.

Good casting performance, cutting performance, not easy to deform, long service life.
The material has high carbon content, good shock absorption, and facilitates high-speed movement during processing. It can achieve various types of high-speed cutting under the condition of meeting the accuracy.

High precision, fast speed, narrow slit, small light spot, smooth cutting surface without barb, no contact between the laser head and plate material, no scratches, no deformation. The efficiency of Sheet Metal Laser Cutter is twice as high as CO2 Laser Cutter with the same power, and the photoelectric conversion efficiency is three times higher.

Sample display

Operational Demonstration

耀鋐科技｜雷射板金切割機｜雷射設備_板金切割實錄

耀鋐科技｜雷射板金切割機｜應用_鍍鎳鋼切割

Medium Sheet Metal Cutting Machine - Table Type
Model	YH-FCM1390L	YH-FCM1313L	YH-FCM1515L
Processing Area Range	1300*900 mm	1300*1300 mm	1500*1500 mm
Positioning Accuracy	±0.02 mm
Max Movement Speed	60-70 m/min
Max Acceleration	1.6 G
Cutting Head Focal Length	125 mm
Table Load Capacity (Single Table)	200 kg	250 kg	280 kg
Laser Source Power	1500W ～ 3000W
Total Machine Power	1500W (220V_17KW) 2000W (220V_19KW) 3000W (380V_28KW)
Standard Safety Protection	Table Type
Standard Safety Devices	Laser Abnormal Alarm, Cutting Anomaly Alarm, Water Chiller Abnormal Alarm, Low Gas Pressure Alarm, Automatic Rail Lubrication Feature, Automatic Dust Removal System
Laser Head	Automatic Focusing / Manual Focusing
Cutting Gas	Oxygen / Nitrogen / Air (self-provided)
Screen Size	17～21 inches
WIFI Remote Function	Optional
Control Operating System	Bochu Operating System (Other systems optional)
Machine Bed Material	Welded Bed
Machine Dimensions LWH ±3% (mm)	238022301500	238026301500	258028301500
Total Machine Weight ±3%	1600 kg	1800 kg	2000 kg
Machine Size Customization	Customizable Cutting Machines Available
