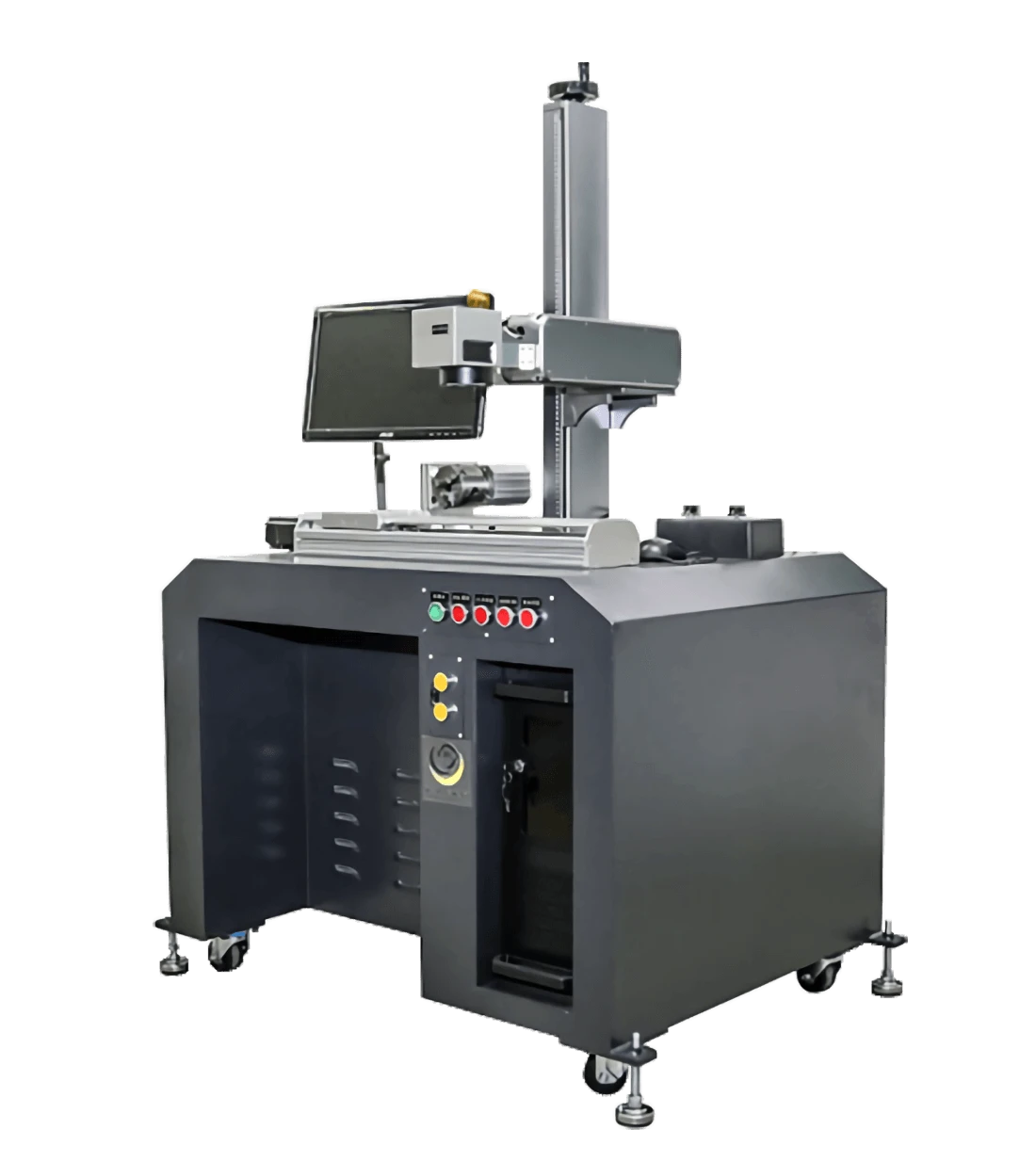

Fiber Laser-FS series

YH-FS20W / YH-FS30W / YH-FS40W

Applicable Materials and Industry Applications:

The FS Series Fiber Laser Marking Machine is designed for high precision needs, capable of engraving on metal materials and some dark, high-hardness plastics, ensuring depth, smoothness, and fine detail in the engravings.
It is suitable for electronic components, precision hardware, eyewear and watches, anodized engraving, hand tool engraving, deep engraving on aluminum parts, black marking on stainless steel surfaces, IC surface engraving, and more, achieving precise processing without damaging the substrate.
Whether it's complex patterns, micro text, or precise surface treatment, the FS Series provides efficient and eco-friendly solutions.

Supported by UK SPI Technology

The FS Series Fiber Laser Marking Machine utilizes advanced laser technology from UK SPI, offering superior beam quality, making it particularly suitable for industrial applications that require high precision. Whether it's micro text or intricate pattern engraving, the FS Series ensures clarity and consistency while guaranteeing long-term durability, making it ideal for various industrial environments.

Powerful Laser Capabilities

With powerful laser capabilities, it easily handles engraving needs for various metals and high-hardness plastics. This not only significantly improves production efficiency but also ensures high product quality, making it the ideal choice for industrial marking, especially in applications requiring high precision and durable marking.

Eco-friendly and Productive

During the marking process, the FS Series requires no chemical consumables, fully complying with international environmental standards. This not only reduces the environmental burden on companies but also reflects their commitment to corporate social responsibility, achieving a win-win situation for both production and the environment.

High-efficiency Automation System

The FS Series Fiber Laser Marking Machine supports seamless integration with automated production lines and offers flexible customization options to meet various industrial application needs. Designed with ease of operation in mind, it increases production efficiency by reducing manual intervention, helping companies save costs and achieve efficient operations.

Maximized Production Efficiency

Equipped with an advanced cooling system, it ensures the equipment does not overheat during long periods of operation and maintains consistent processing quality. The automated operation system further reduces the risk of human error, allowing companies to achieve higher efficiency and stability in production.

Wide and Versatile Applicability

The FS Series is compatible with various design software such as CorelDRAW, AutoCAD, SAF, DXF, AI, and more, meeting diverse marking needs and suitable for various industrial application scenarios. This equipment is an ideal replacement for traditional inkjet coding and is suitable for creating logos, batch numbers, text, graphics, serial numbers, barcodes, and more.

Intuitive and Easy-to-use Interface

The intuitive Chinese interface is suitable for users of all levels, allowing both beginners and professional technicians to quickly master operations, thus improving overall operational efficiency and reducing employee training time.

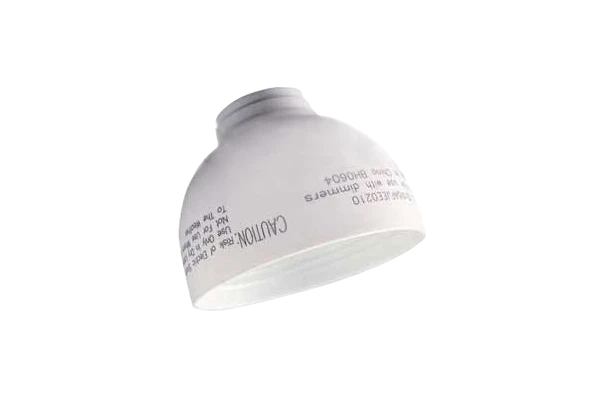

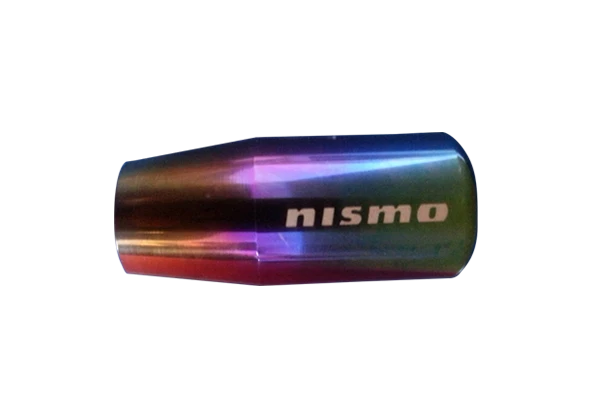

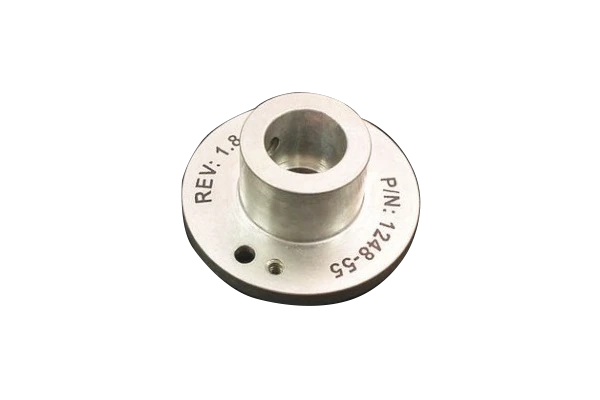

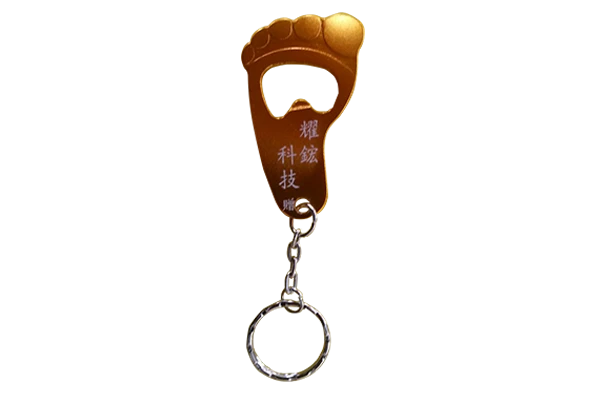

Sample display

Operational Demonstration

耀鋐科技｜雷射打標機｜應用_這是你在找的?

耀鋐科技｜雷射打標機｜應用_漆面冰霸杯客製化雕刻

Technical Parameters

Fiber Laser - FS Series (SPI UK)
Model	YH-FS20W	YH-FS30W	YH-FS40W
Laser Wavelength	1064nm
Repetition Frequency	1 – 1000 KHZ
Beam Quality	M² ≦ 1.3 - 2.0		M² ≦ 1.6 - 3.5
Marking Area	70 × 70mm 110×110mm 150×150mm 200×200mm 300×300mm (Multiple Options Available)
Engraving Depth	(Depends on Material and Focusing Lens)
Minimum Line Width	0.08mm		0.04mm
Minimum Character Size	0.15mm
Repeat Positioning Accuracy	±0.02 mm
Dedicated Software	Controls X, Y, Z motion axes and rotation axis; supports FPK, PPK, R05 first pulse suppression. One IO communication port for PLC communication. Supports one-axis encoder input for flying marking. Built-in DSP; marking operations do not occupy computer CPU time. 24V input signal, can be directly connected to PLC. Provides MARKING READY, MARKING END, MARKING BUSY signals. Supports offline marking control, capable of managing 16 files, 64 layers, and previewing and counting up to 1024 patterns. Expandable to support large-area marking, 2.5D, 3D, XY platform control, large image stitching, and visual automatic alignment.
Power Supply	220V / 60Hz
Total Power Consumption	650W		750W
Machine Dimensions LWH ±3% (mm)	760 x 600 x 1300 mm (500mm Z-axis) Small Cabinet 760 x 600 x 1600 mm (800mm Z-axis) Small Cabinet 1000 x 1000 x 1300 mm (500mm Z-axis) Large Cabinet 1000 x 1000 x 1600 mm (800mm Z-axis) Large Cabinet 580 x 560 x 620 mm (500mm Z-axis) Desktop Model
Overall Machine Weight ±3%	Small Cabinet Approx. 110kg / Large Cabinet Approx. 150kg / Desktop Model Approx. 60kg
Supported File Formats	All fonts and styles in the Windows operating system font library
