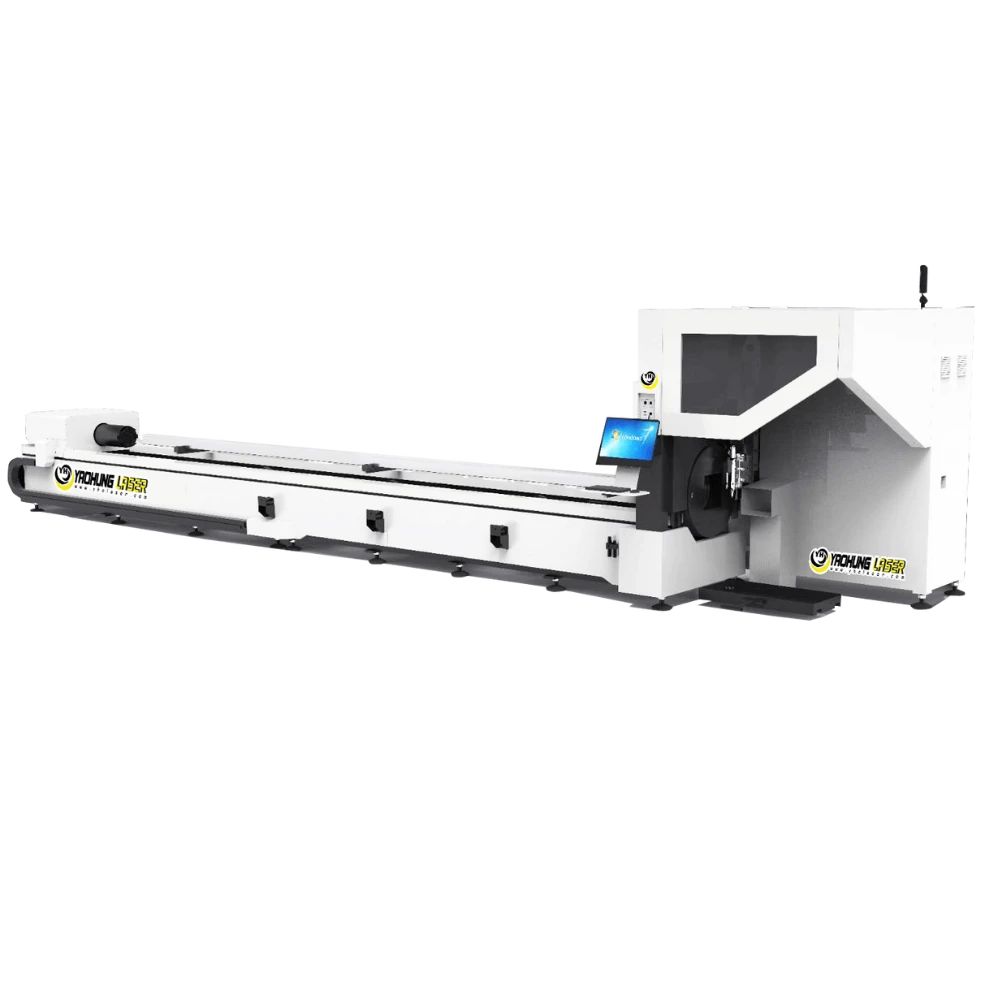

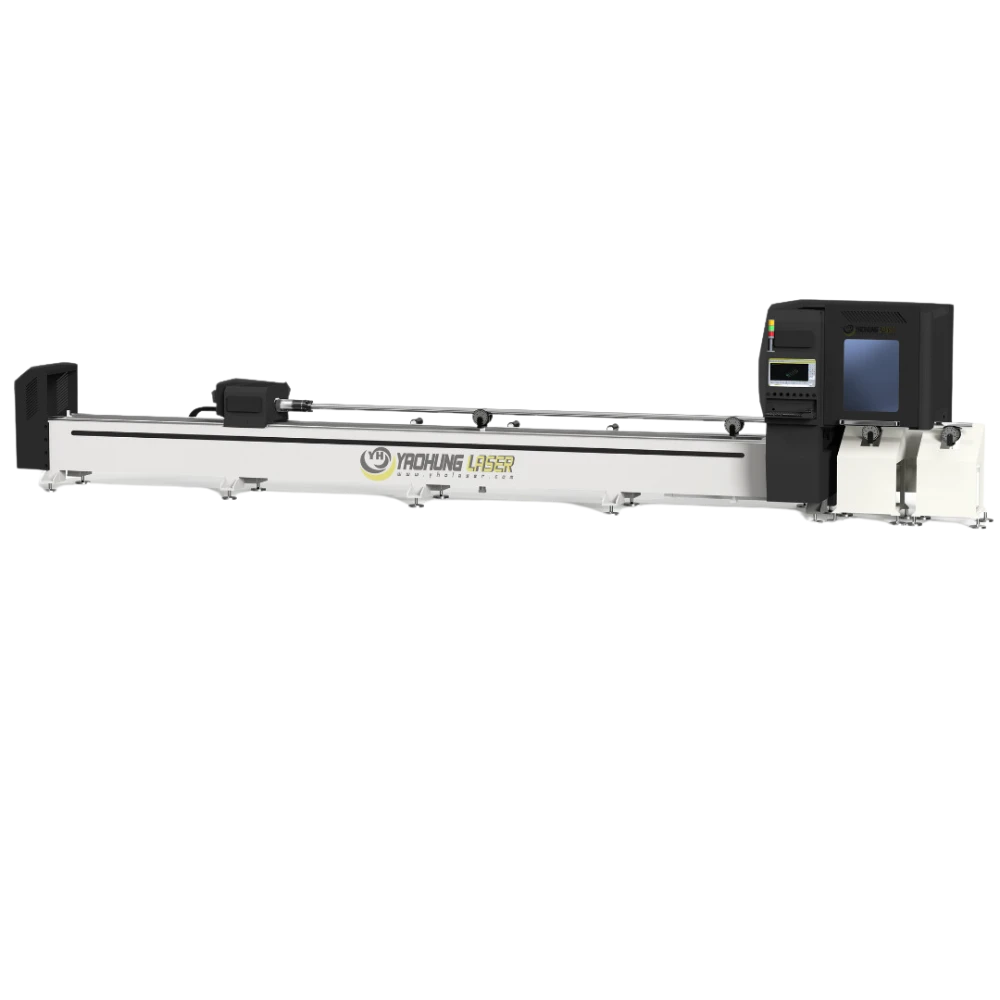

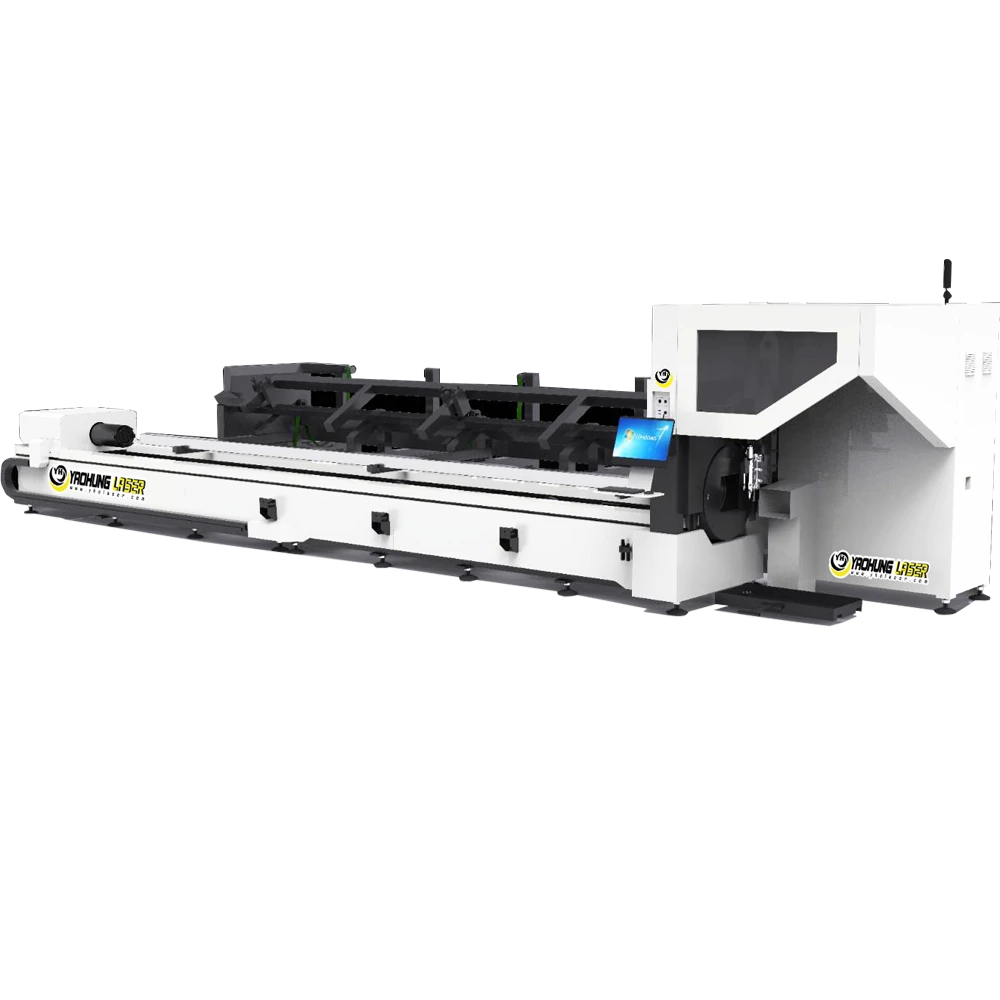

Laser Tube Cutting Machine

YH-FPC60（AF）／YH-FPC62AF

Applicable materials and industry applications

This equipment is suitable for various metal tubes, such as carbon steel, stainless steel, aluminum, brass, and shaped tubes, offering versatile cutting applications.

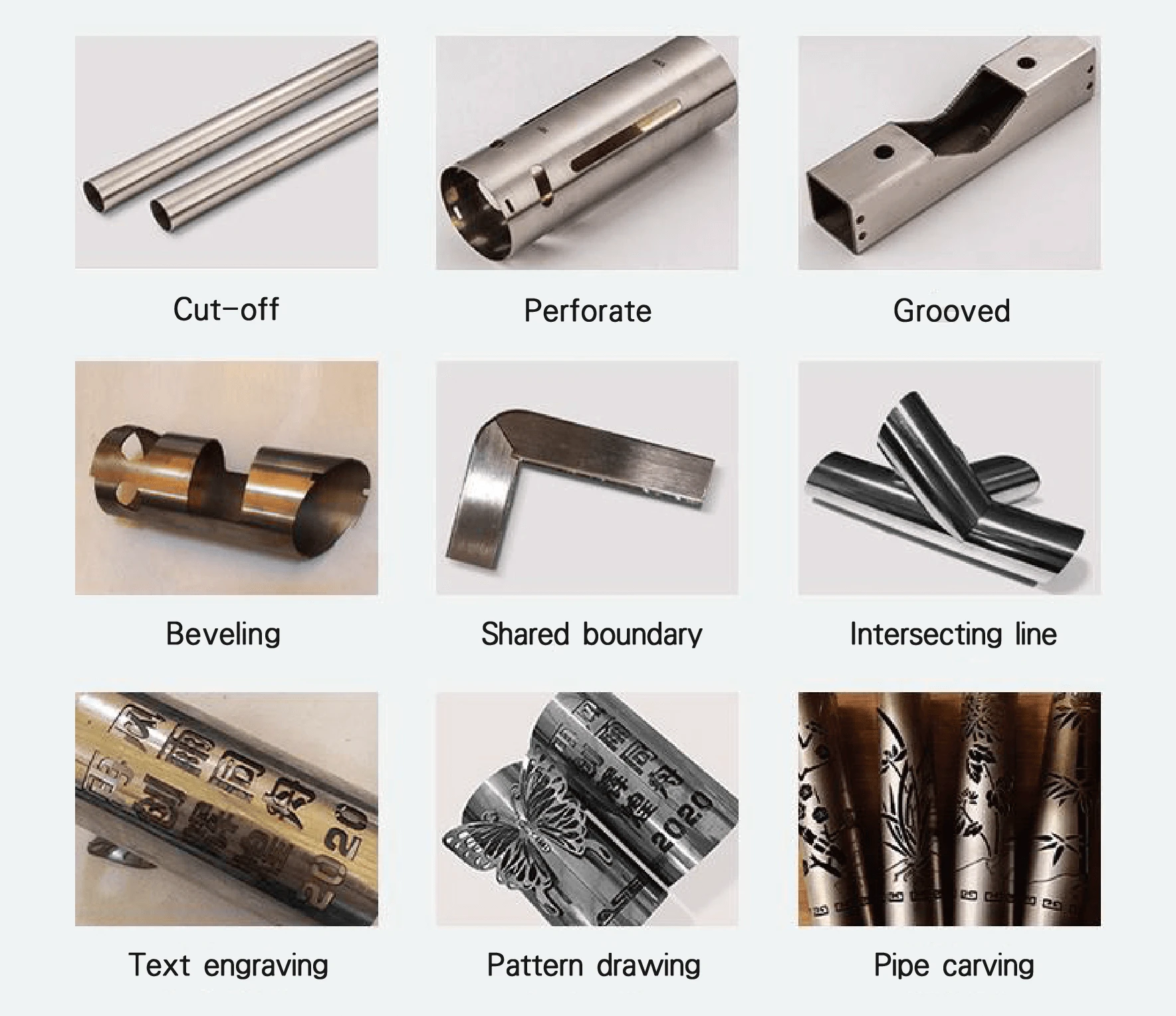

Supports a variety of processing techniques, including cutting, punching, slotting, beveling, edge-sharing, intersection, text engraving, and pattern drawing to meet diverse production needs.
Widely used in industries such as automotive, aerospace, construction, elevators, and home appliances, especially suited for high-precision, large-scale manufacturing requirements.
Customizable design options are available to configure functions based on customer requirements, flexibly adapting to different production scenarios, and supporting fully automated or semi-automated loading systems to further enhance production efficiency.

INQUIRE

CATALOG

High-Speed Precision Multi-Process Laser Tube Cutting Machine

Stable Structure and High-Performance Design Integration

The machine bed undergoes rigorous welding and heat treatment, providing excellent stability and precision with no deformation during long-term operation.

1.6G High Acceleration to Boost Production Efficiency

With acceleration reaching 1.6G, this machine is 5-6 times more efficient than traditional tube cutting machines, making it suitable for high-speed mass production.

Optimized Design of the Auto-Focus Laser Head Structure

Optimized structural design, fully enclosed optical path, and almost zero chance of lens contamination.

Minimized Tail Material Waste to Save Production Costs

Tail material waste is reduced to only 60-75mm, significantly reducing material wastage and improving production efficiency.

High-Efficiency Cooling and Dust-Proof Technology to Protect Equipment

Highly dustproof, paired with an efficient water-cooling system that provides precise temperature control, preventing condensation damage to the lens and extending equipment life.

Intelligent Servo System with Precision Error Compensation Technology

The servo system supports real-time deviation compensation, reducing the need for strict tube clamping, and significantly enhancing piercing accuracy.

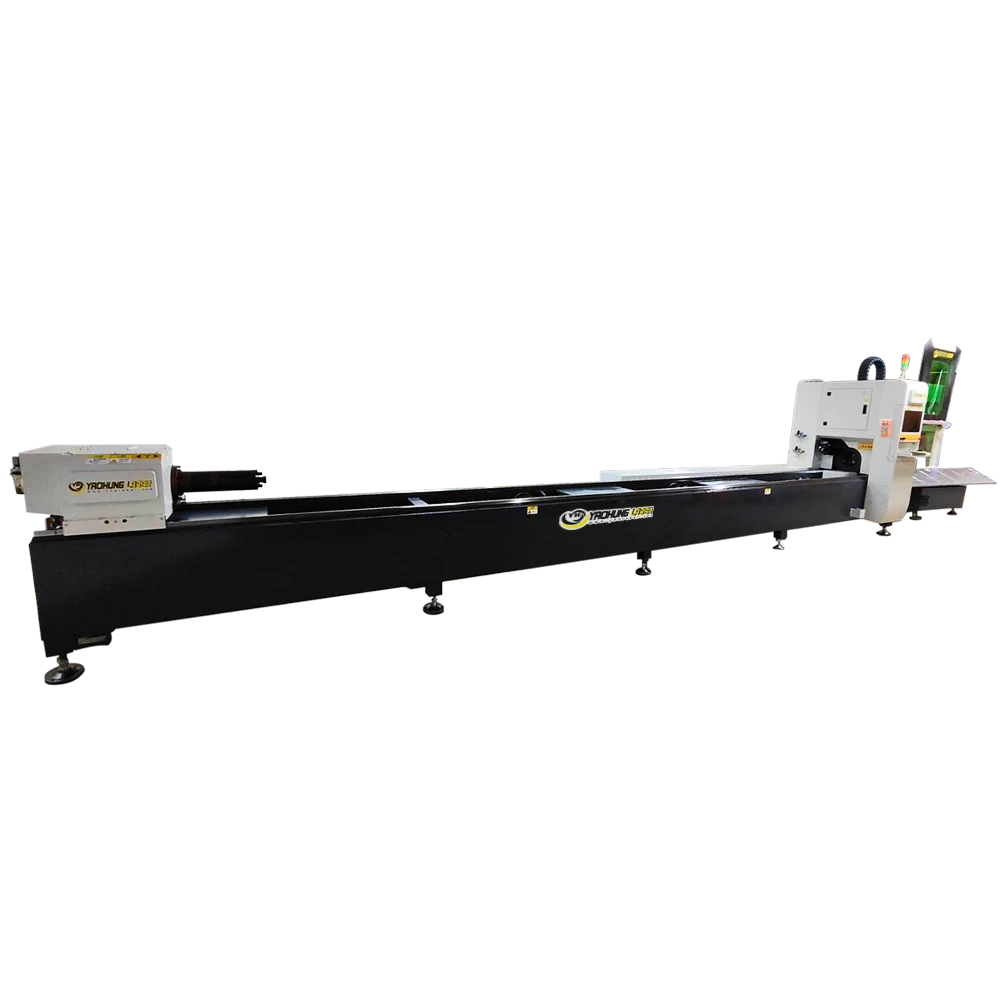

Flexible Fully Automatic and Semi-Automatic Loading System

Supports fully automatic, semi-automatic, and manual loading systems, flexibly meeting different production demands and improving production efficiency.

Multi-Functional and Customized Solution Integration

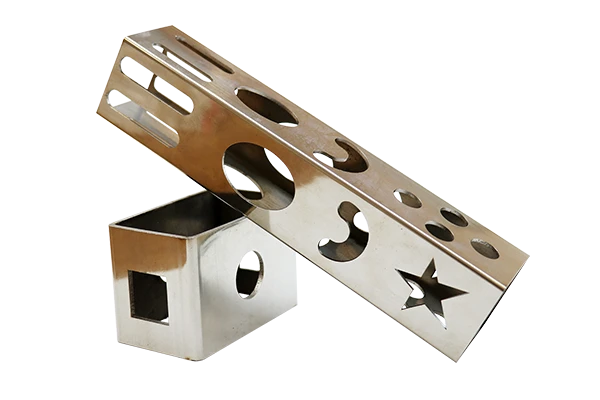

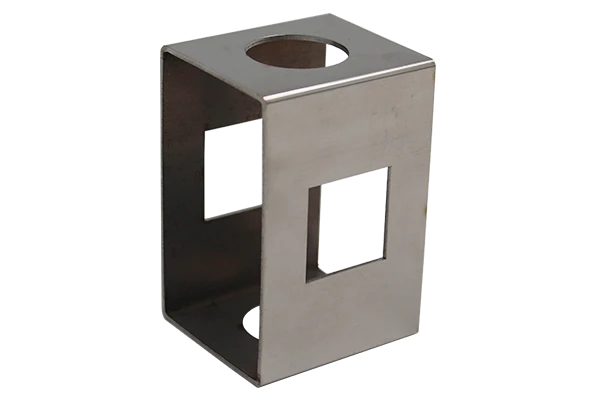

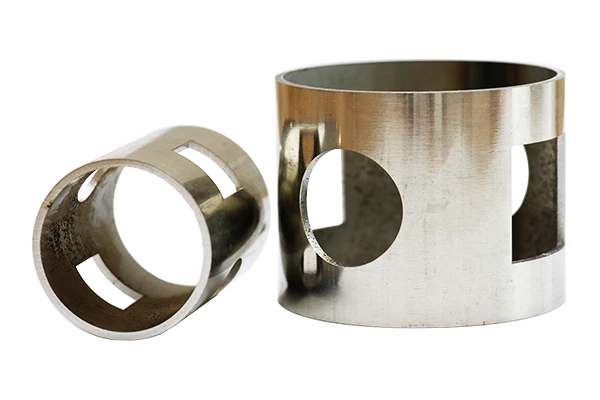

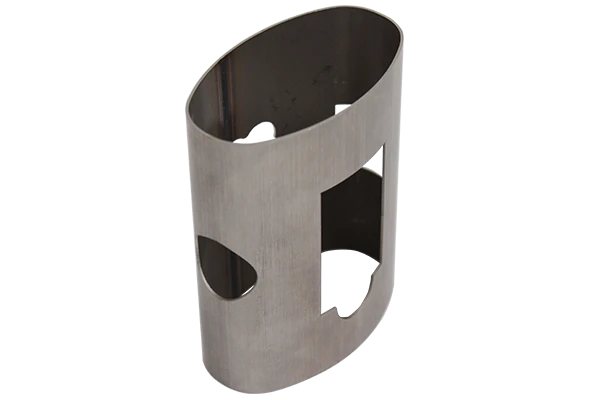

Supports multi-process cutting for various tube types: round tubes, square tubes, oval tubes, and special-shaped tubes, providing personalized production solutions.

High-Speed Precision Multi-Process Laser Tube Cutting Machine

Operation Demonstration

【YaoHung耀鋐科技】客製全自動化大型雷射切管機！鋁管切割演示　#雷射切管機 #光纖雷射切割 #多軸定位 #自動化生產 #LaserTubeCutting

【YaoHung耀鋐科技】雷射切管全自動氣動收料系統　#fiberlaser #tubecuttingmachine #自動化 #metalcutting

【YaoHung耀鋐科技】光纖裁管切割機｜配置簡易說明｜YH-FPC60AF

【YaoHung耀鋐科技】光纖裁管切割機｜軟體操作演示｜YH-FPC60AF

Technical Parameters

Model	YH-FPC60 (AF)	YH-FPC62AF
Tube Types	Round Tubes, Square Tubes
Tube Size (Round)	Φ8 ～Φ65 mm Φ16 ～Φ85 mm (AF)	Φ20 ～Φ350 mm
Tube Size (Square)	Φ10×10 -Φ60×60 mm Φ10×10 -Φ60×60 mm (AF)	Φ20×20 -Φ350×350 mm
Maximum Tube Length	6000 mm	4000 mm - 6000 mm 4000 mm - 6200 mm (Square Tubes)
Minimum Cutting Length	1 mm
Minimum Residual Material	40 mm - 60 mm
Positioning Accuracy	±0.05 mm
Maximum Acceleration	1.6 G
Total Power	1500W (220V_18KW) 2000W (220V_20KW) 3000W (380V_29KW)
Electrical Proportional Valve	Japan SMC
Servo Motor	Japan YASKAWA or equivalent
Guide Rail	Domestic brand (HIWIN/PMI/ABBA) or equivalent
Rack	Domestic rack (YYC, KH, APEX) or equivalent
Control System	Bochu Operating System (other systems optional)
Laser Head	Auto-focus/Manual focus
Standard Safety Devices	Laser alarm / Cutting alarm / Water cooling alarm / Gas low-pressure alarm / Automatic rail lubrication / Automatic dust removal
Cutting Gas	Oxygen / Nitrogen / Air (customer-supplied)
Screen Size	17 - 21 inches
WIFI Remote Function	Optional
Cooling System	Thermostatic chiller according to power configuration
Machine Dimensions LengthWidthHeight ±3% (mm)	11632 x 1265 x 2172 (Body adjusted based on chuck size)
Total Machine Weight ±15%	3000～4000 kg (Body adjusted based on chuck size)
