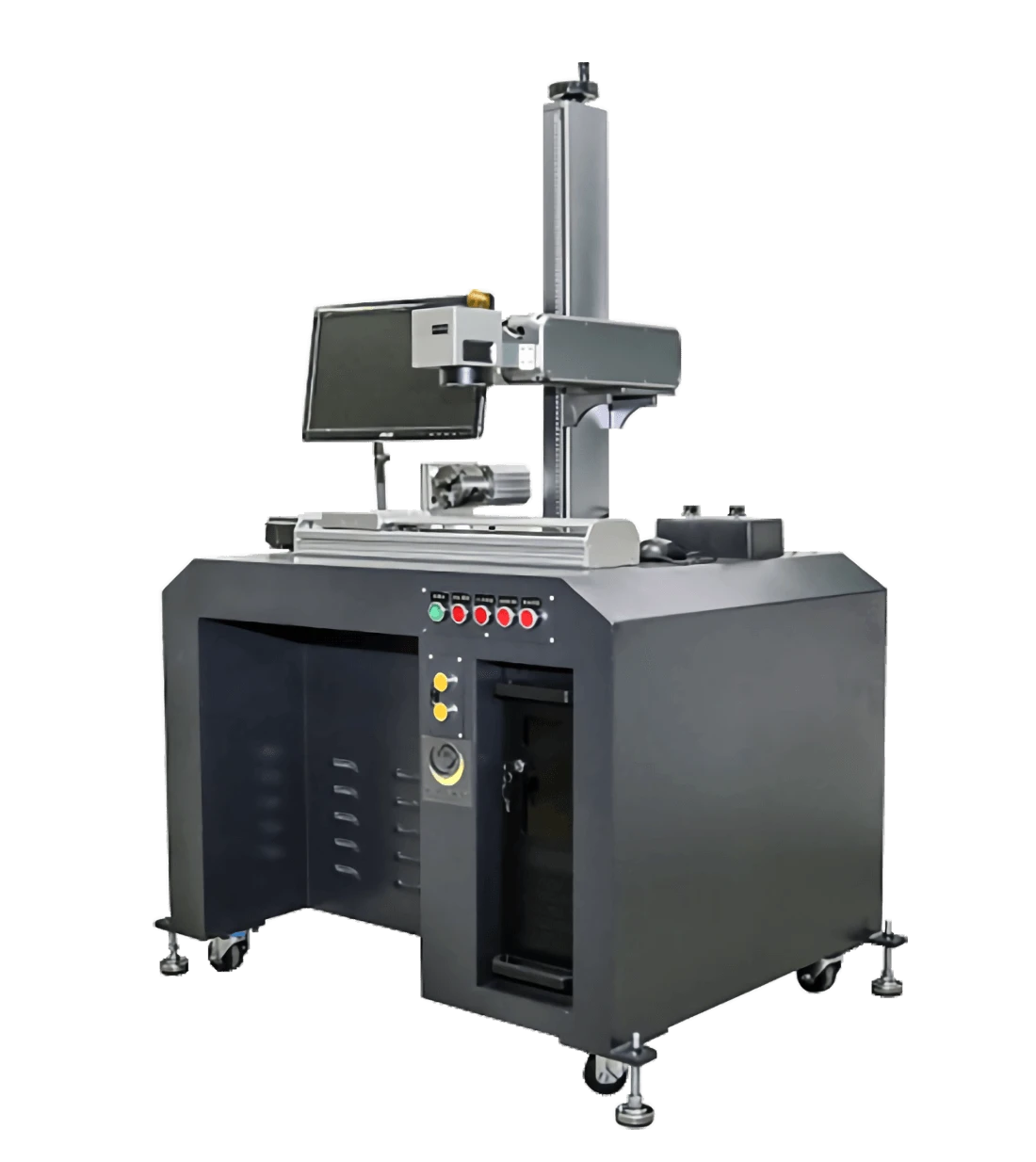

Fiber laser-FJ series

YH-FJ30W / YH-FJ60W / YH-FJ80W

Applicable Materials and Industry Applications:

The FJ Series Fiber Laser Marking Machine is designed for high precision needs, capable of engraving on metal materials and some dark, high-hardness plastics, ensuring engraving depth, smoothness, and fine detail.
It is suitable for electronic components, precision hardware, eyewear and watches, anodized engraving, hand tool engraving, deep engraving on aluminum parts, black marking on stainless steel surfaces, IC surface engraving, and more, achieving precise processing without damaging the substrate.
Whether it's complex patterns, micro text, or precise surface treatment, the FJ Series offers efficient and eco-friendly solutions.

MOPA Technology Support

The FJ Series Fiber Laser Marking Machine incorporates advanced MOPA technology, enabling multi-color marking and offering greater design flexibility for industrial applications.

Powerful Laser Capabilities

The FJ Series is equipped with powerful laser capabilities, effectively handling engraving needs for various high-hardness materials. This equipment not only significantly enhances production efficiency but also ensures consistent quality with every operation, making it the ideal choice for high-performance and precision in industrial marking, especially in demanding production environments.

Eco-friendly and Productive

The operation process requires no chemical consumables, making the equipment compliant with strict international environmental standards, reducing the environmental impact of production. It supports the company’s sustainable development goals and demonstrates a commitment to social responsibility, providing an eco-friendly and efficient solution for industrial production.

High-efficiency Automation System

The FJ Series Fiber Laser Marking Machine supports seamless integration with automated production lines, allowing it to flexibly meet various production needs. The equipment also offers diverse customization options to meet the specific requirements of different industries. The precise automation design reduces manual intervention and helps companies lower costs while improving competitiveness, making it suitable for high-performance production environments.

Maximized Production Efficiency

Equipped with a precise cooling system, it ensures stability during long-term operation. This system prevents the equipment from overheating and maintains consistent processing quality. The automated operation system further reduces the risk of human error, maximizing production efficiency and supporting companies in achieving efficient operations.

Wide and Versatile Applicability

Compatible with CorelDRAW, AutoCAD, SAF, DXF, AI, and other design software, the FJ Series delivers precise and consistent marking for logos, batch numbers, text, graphics, serial numbers, and barcodes. This equipment is an ideal replacement for traditional inkjet coding technology and is suitable for a wide range of industrial applications.

Intuitive and Easy-to-use Interface

The intuitive Chinese interface is designed for users of all levels, allowing both beginners and experienced technicians to quickly master the operation. This simple operation method not only improves equipment usage efficiency but also shortens training time, helping companies quickly start production and enhance overall productivity.

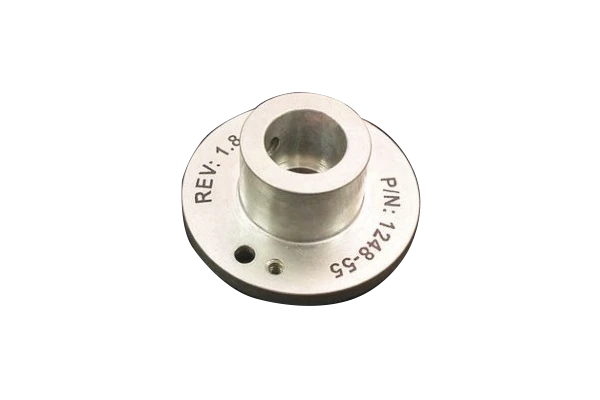

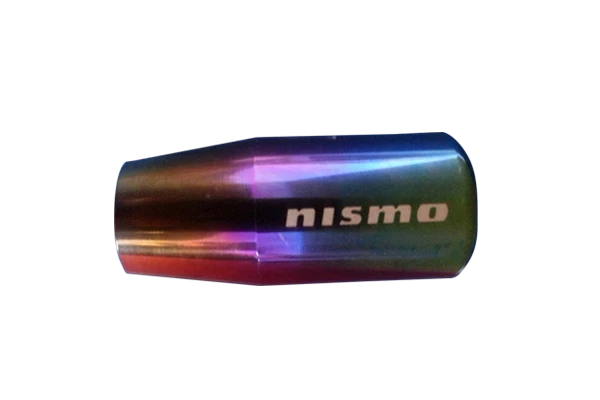

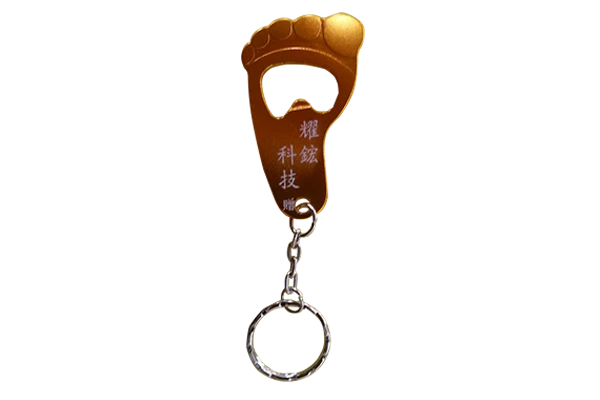

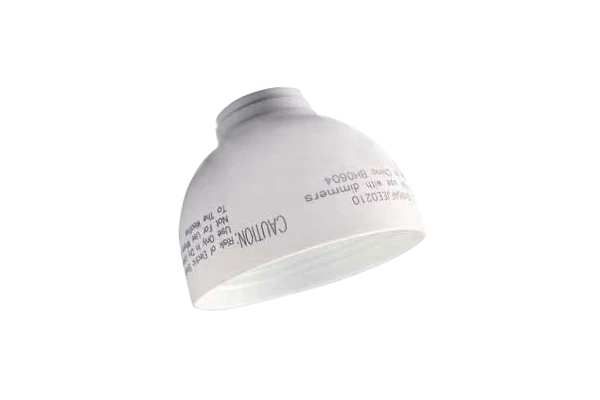

Sample display

Operational Demonstration

耀鋐科技｜雷射打標機｜應用_不鏽鋼彩雕

耀鋐科技｜雷射打標機｜雷射設備_CCD視覺辨識系統

Technical Parameters

Fiber Laser - FJ Series (MOPA)
Model	YH-FJ30W	YH-FJ60W	YH-FJ80W
Laser Wavelength	1064nm
Repetition Frequency	1 - 4000 KHZ
Beam Quality	M² ≦ 1.3	M² ≦ 1.8	M² ≦ 1.8
Marking Area	70× 70mm 110×110mm 150×150mm 200×200mm 300×300mm (Multiple Options Available)
Engraving Depth	(Depends on Material and Focusing Lens)
Engraving Speed	4.0m/s
Minimum Line Width	0.04mm
Minimum Character Size	0.15mm
Repeat Positioning Accuracy	±0.02 mm
Dedicated Software	Controls X, Y, Z motion axes and rotation axis; supports FPK, PPK, R05 first pulse suppression. One IO communication port for PLC communication. Supports one-axis encoder input for flying marking. Built-in DSP; marking operations do not occupy computer CPU time. 24V input signal, can be directly connected to PLC. Provides MARKING READY, MARKING END, MARKING BUSY signals. Supports offline marking control, capable of managing 16 files, 64 layers, and previewing and counting up to 1024 patterns. Expandable to support large-area marking, 2.5D, 3D, XY platform control, large image stitching, and visual automatic alignment.
Power Supply	220V / 60Hz
Total Power Consumption	600W	650W	750W
Machine Dimensions LWH ±3% (mm)	760 x 600 x 1300 mm (500mm Z-axis) Small Cabinet 760 x 600 x 1600 mm (800mm Z-axis) Small Cabinet 1000 x 1000 x 1300 mm (500mm Z-axis) Large Cabinet 1000 x 1000 x 1600 mm (800mm Z-axis) Large Cabinet 580 x 560 x 620 mm (500mm Z-axis) Desktop Model
Overall Machine Weight ±3%	Small Cabinet Approx. 110kg / Large Cabinet Approx. 150kg / Desktop Model Approx. 60kg
Supported File Formats	All fonts and styles in the Windows operating system font library
