Trolley-Type

YH-WAT200W / YH-WAT300W

Applicable Materials & Industries

Trolley-Type Laser Cleaning Machine features a wheeled main unit and a tilted control screen, supporting single-person fast deployment and inspection operations.
Suitable for treating surface contaminants on carbon steel, stainless steel, aluminum alloy, galvanized sheet, mold steel, and copper, including oxide layers, oil stains, rust, and old coatings.
Common application scenarios include hardware repair, mold maintenance, workshop cleaning, pre-paint treatment, and rapid on-site resolution of high-contamination anomalies.

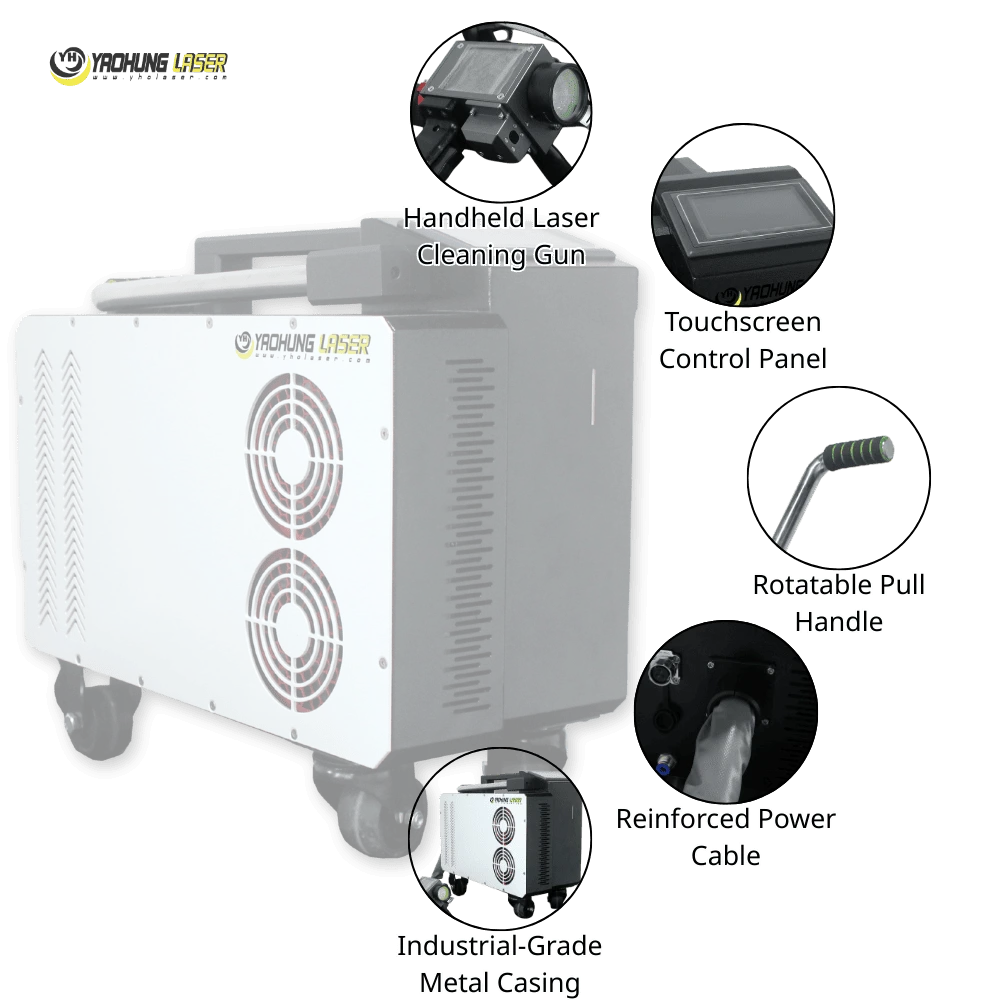

Suitcase-Style Main Unit × One-Person Mobility and Deployment

The main unit adopts a suitcase-style structure with an integrated trolley handle and wheel system. It can be moved and positioned quickly on-site without lifting or hanging, saving deployment time and reducing labor burden.

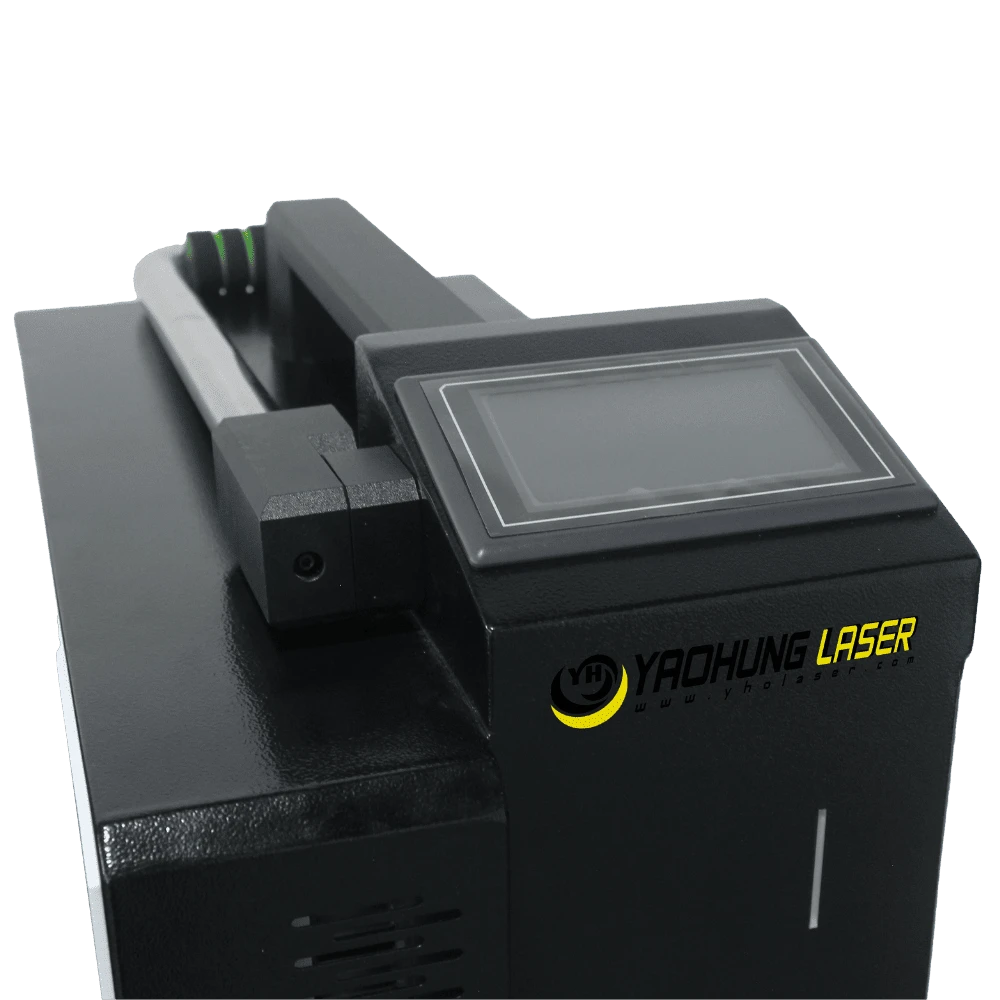

30° Tilted Screen × Ergonomic Operation

The screen features an angled viewing design, allowing clear visibility whether standing or bending. It includes both buttons and a rotary interface, meeting both safety and efficiency requirements on-site.

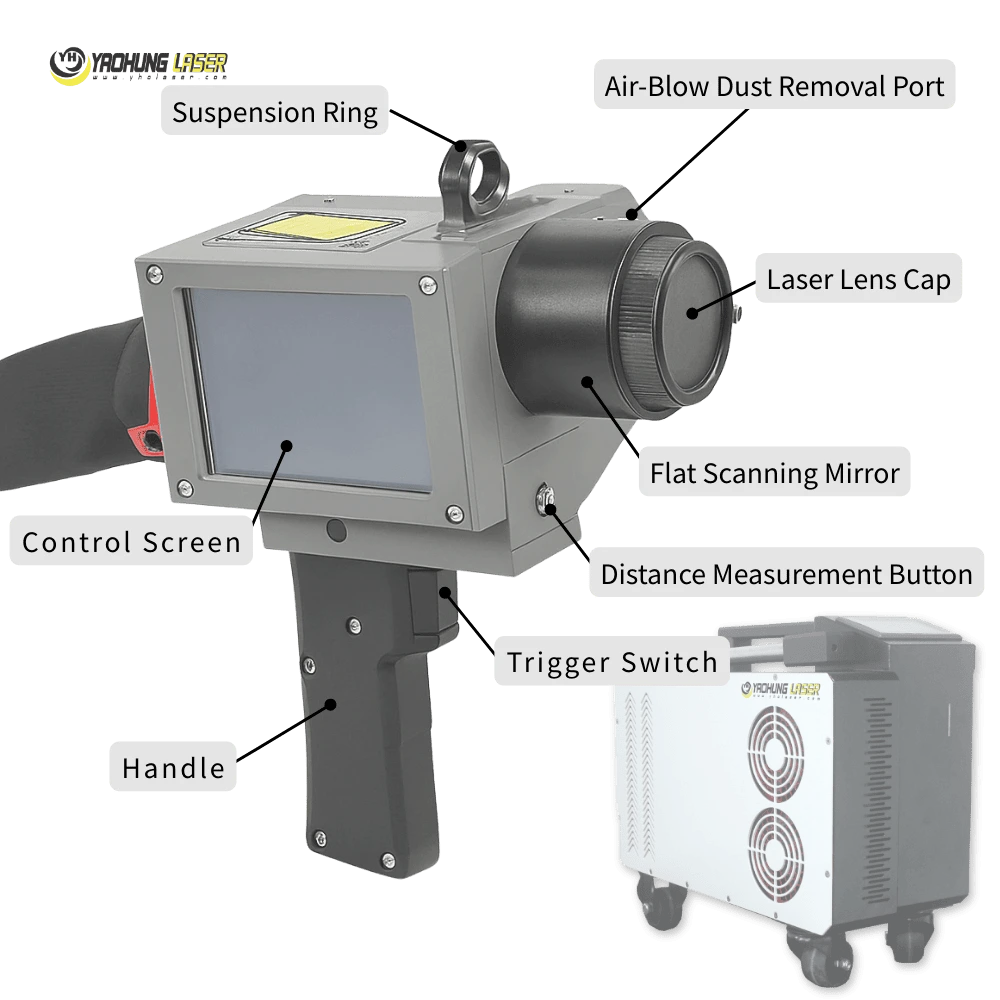

Lightweight Cleaning Gun × Long-Time Use Without Fatigue

The cleaning gun weighs less than 1.25 kg and is equipped with a balanced center of gravity, allowing for extended handheld use. It is especially suitable for inspection and maintenance of medium to large workpieces.

Air Curtain Dust Shield × Clean Lens Without Interruptions

The cleaning head features a blowing-style dust-proof air curtain and a sealed lens protection design, which blocks dust, oil mist, and adhesive residues, prevents optical path interference, and extends the life of the optical system.

Anti-Interference Housing × Stable Output Without Deviation

Combines multi-layer signal suppression with a metal protective structure to minimize electromagnetic and dust interference, ensuring consistent and stable cleaning paths every time.

Chemical-Free Cleaning × ESG-Compliant Green Process

The entire cleaning process is performed using a non-contact dry method with no chemicals or water rinsing required, making it suitable for production lines and factories with environmental regulations or those pursuing green process transformation.

Operation Demo

Understand the actual working process and operation method of the equipment

耀鋐科技｜雷射清洗機｜應用_藝品清洗

耀鋐科技｜雷射清洗機｜雷射設備_雷射清洗焊道

Technical Specifications

Item	YH-WAT200W	YH-WAT300W
Laser Wavelength	1064nm
Laser Power	200W	300W
Pulse Energy	2mj / 5mj	2mj / 5mj / 15mj
Frequency Range	1 ～ 3000KHz
Cleaning Range	105mm
Cleaning Width	105mm
Scanning Speed	20000 mm/s
Cleaning Modes	9 types
Cooling Method	Air cooling

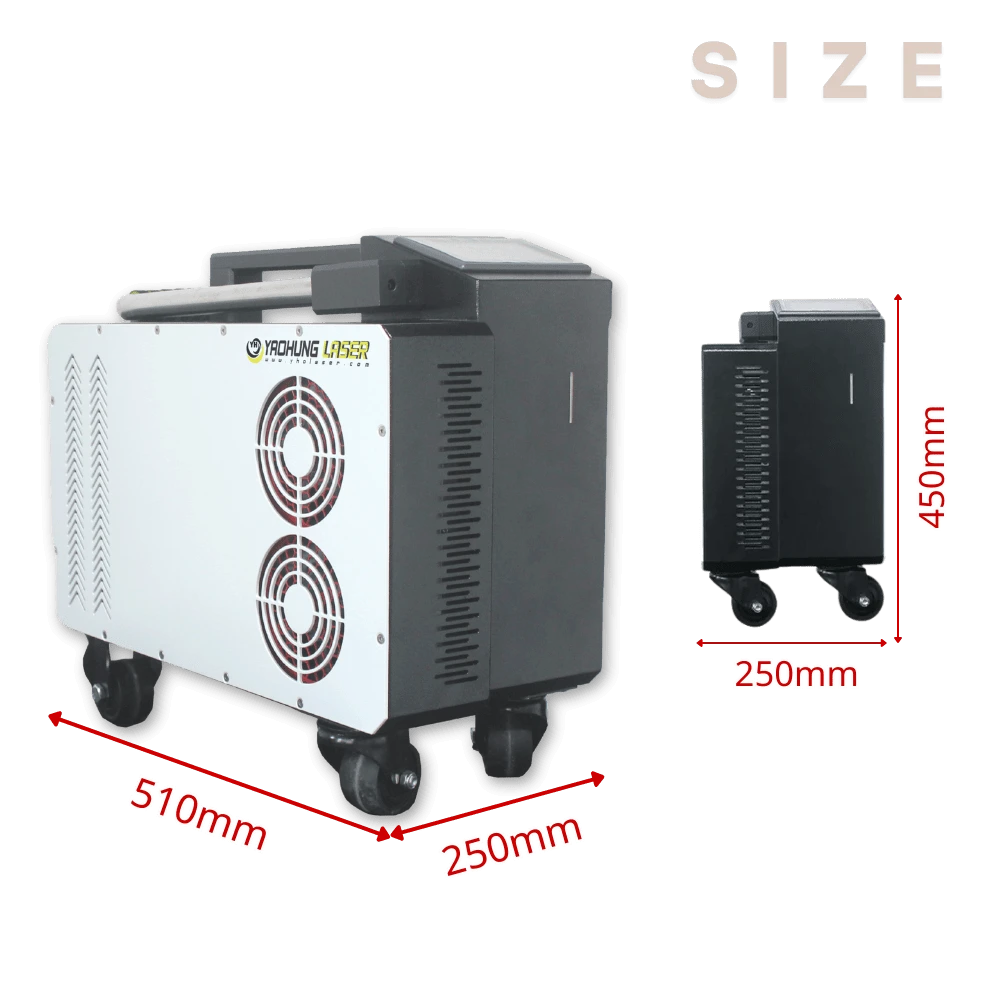

Machine Dimensions (±3%)	L560 × W240 × H485mm
Machine Weight (±3%)	30kg	35kg
Power Consumption	<1500W / 220V	<2500W / 220V
Standard Accessories	Protective Goggles
