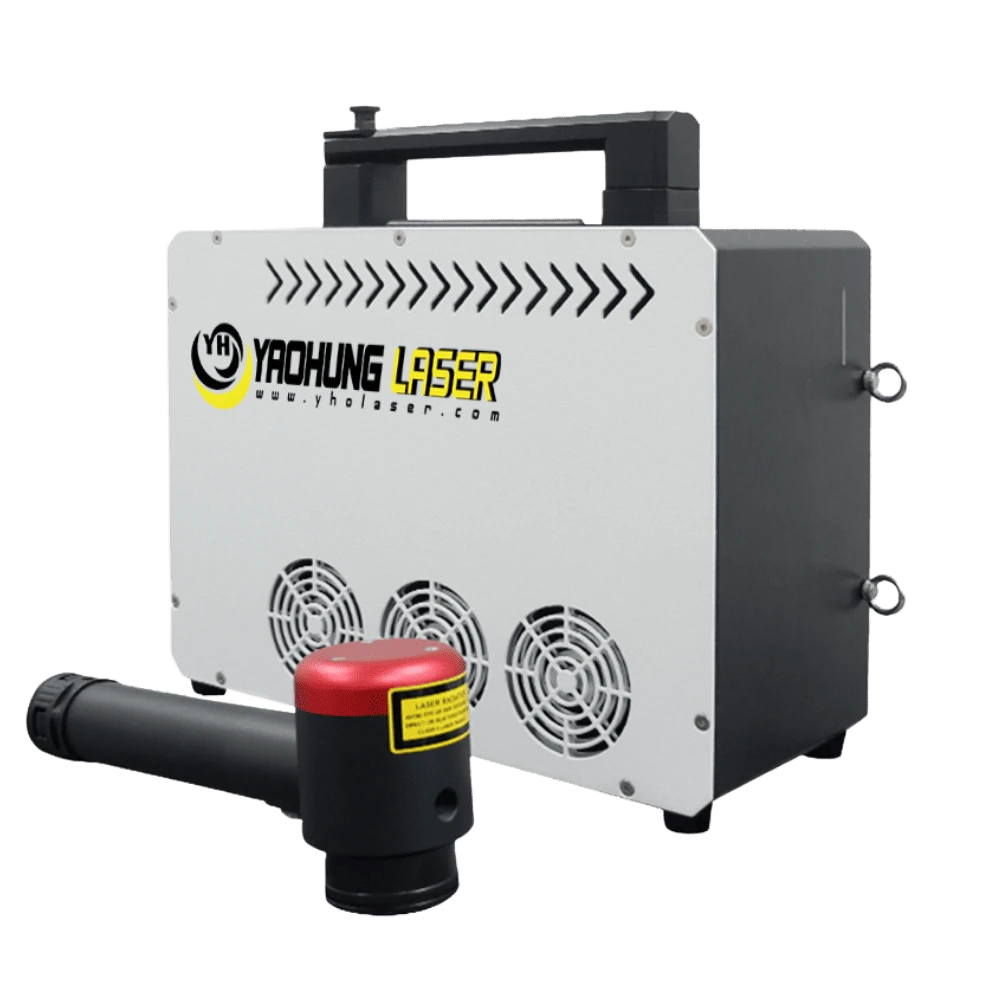

Handheld Backpack-Type

YH-WAB100W / YH-WAB200W

Applicable Materials & Industries

Handheld Backpack-Type uses a wearable main unit and a lightweight cleaning gun, making it especially suitable for elevated areas, stairwells, and equipment corners. No placement constraints, offering exceptional flexibility in narrow environments.
Capable of removing contaminants from iron, stainless steel, aluminum alloy, and coated plastics, including rust, coatings, oxides, and adhesive residues. The cleaning process is non-contact, low-heat, and preserves the original surface.
Ideal for mold rework, cultural heritage restoration, electronics maintenance, and aerial inspections. Even in dusty or high-frequency cleaning environments, it ensures stable output, with rapid deployment and immediate activation on site.

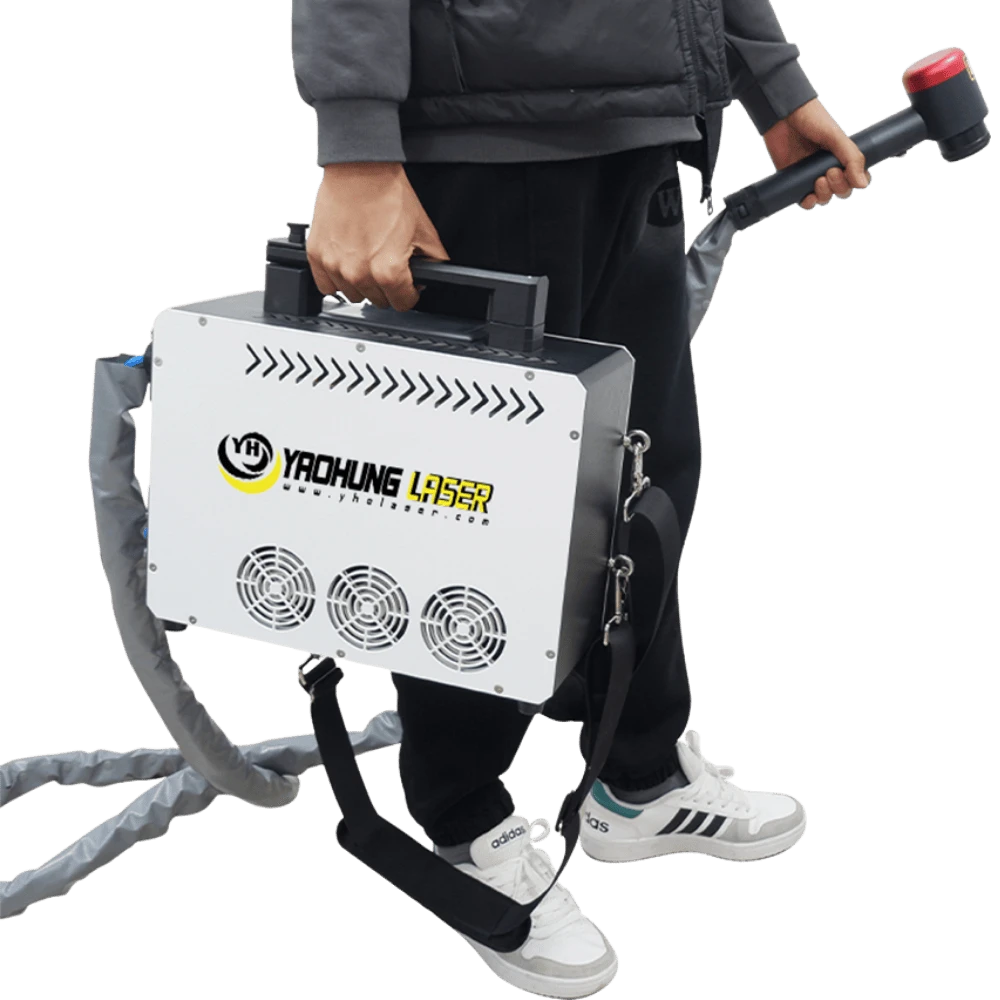

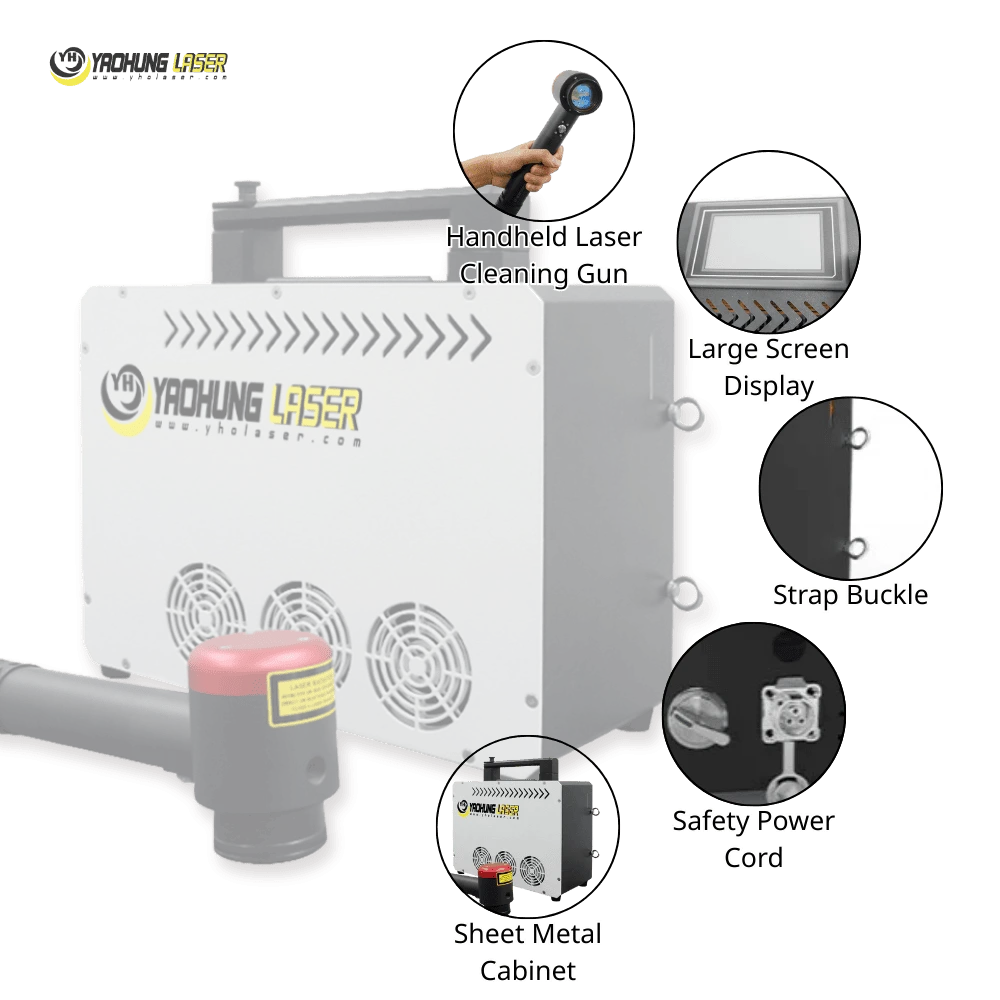

Backpack Design × Flexible Cleaning in Tight Spaces

The main unit adopts a wearable structure, paired with a cleaning gun weighing less than 0.75 kg, allowing easy access to spaces like staircases, narrow gaps, and inside vehicle frames. Deployment requires no trolley or power setup.

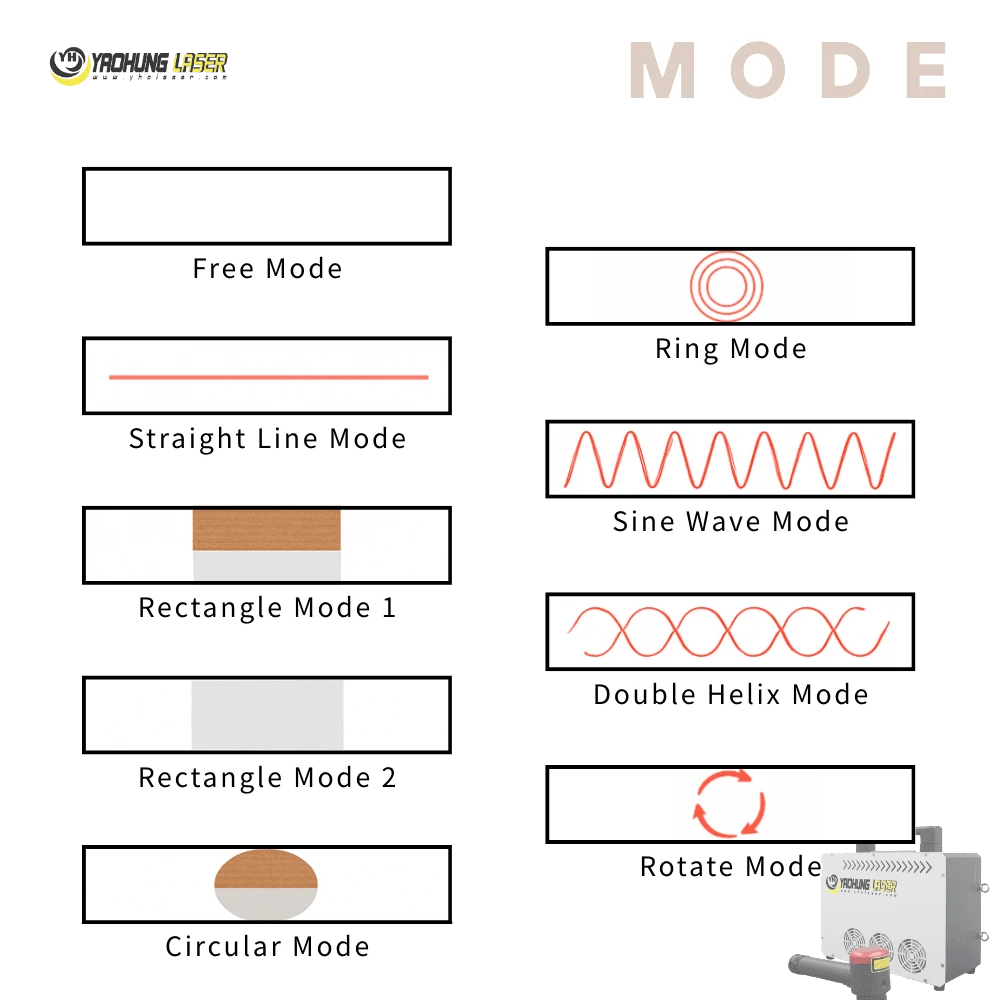

9 Scan Modes × Adaptable to Various Contaminants

Equipped with 9 built-in scan patterns (e.g., linear, spiral, sine wave, bell curve, etc.), adjustable based on material and contamination type, effectively handling rust, coatings, adhesive residues, and other surface pollutants.

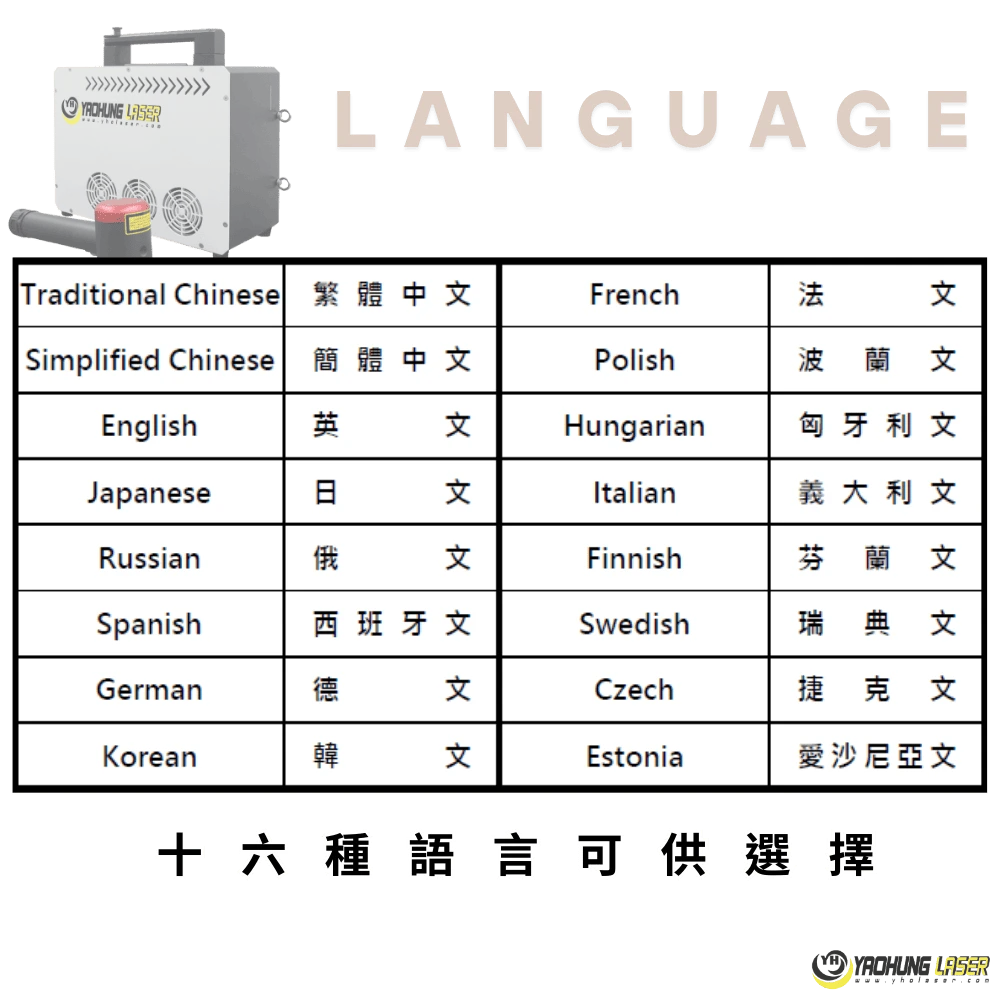

Multilingual Interface × Quick Operation & Deployment

The user interface supports 16 languages and features an intuitive graphical workflow. No engineering background is required to perform cleaning tasks, making it ideal for rentals, cross-border maintenance, and emergency response.

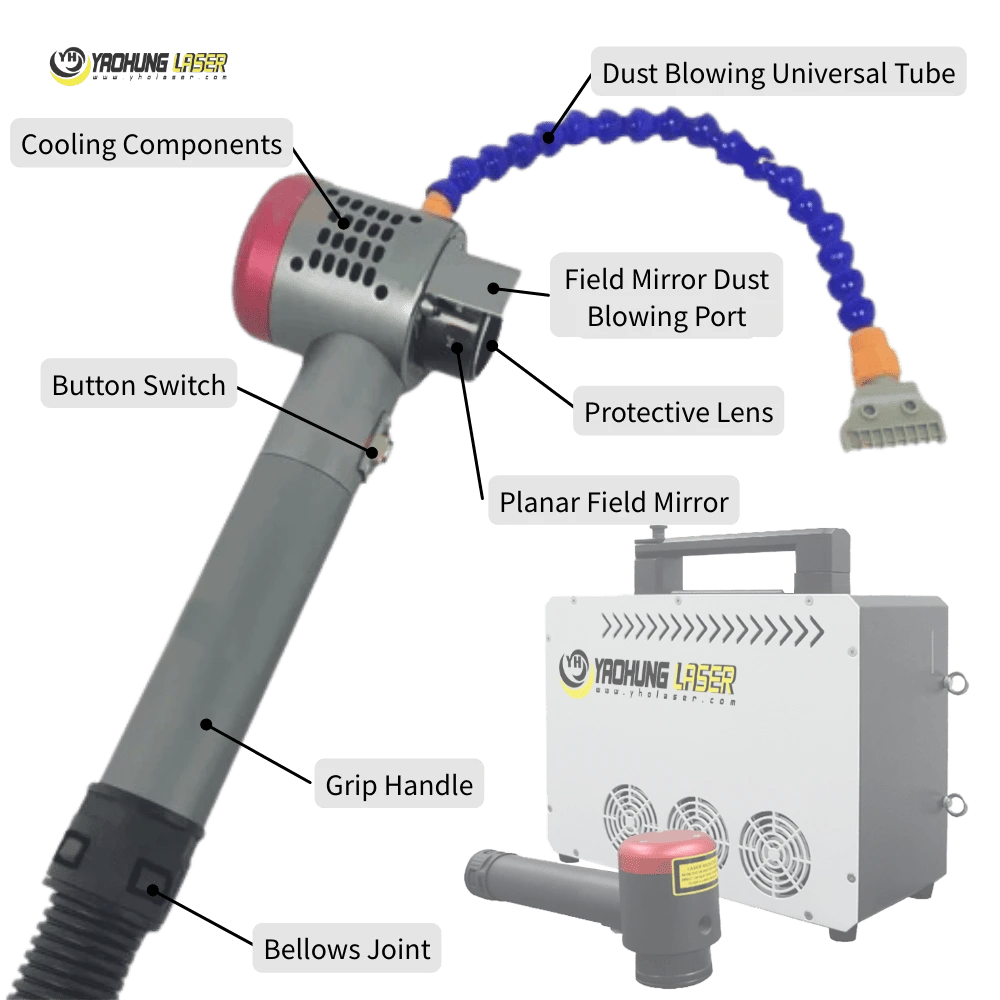

Cleaning Head Protection × Stable Laser Output

The cleaning head features a front-facing dust-blowing air curtain, a dust-resistant lens structure, and a metal interference-shielding housing, enabling stable laser output in dusty or electromagnetically noisy environments while extending the lifespan of the optical module.

Top Choice for Elevated & Localized Cleaning

Capable of reaching into mold corners, architectural crevices, and mechanical angles for detailed cleaning—tasks that conventional platform systems struggle to handle—with exceptional deployment agility.

ESG-Oriented Process × Dry Cleaning with No Chemicals

The cleaning process requires no chemicals and produces no wastewater, generating no heat damage or secondary pollution on the workpiece—ideal for green manufacturing transformation and cultural heritage preservation under high-standard requirements.

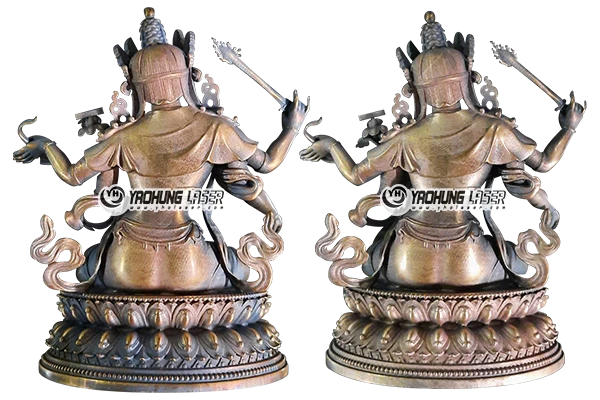

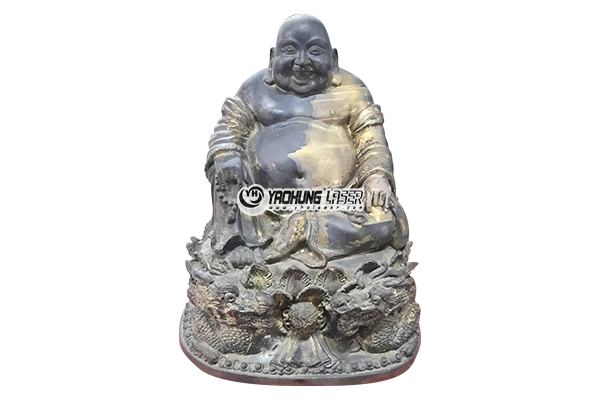

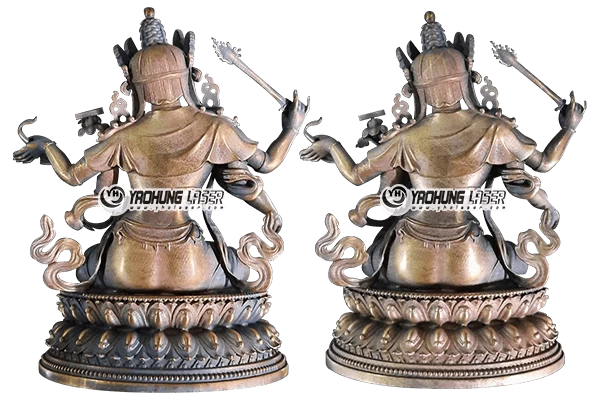

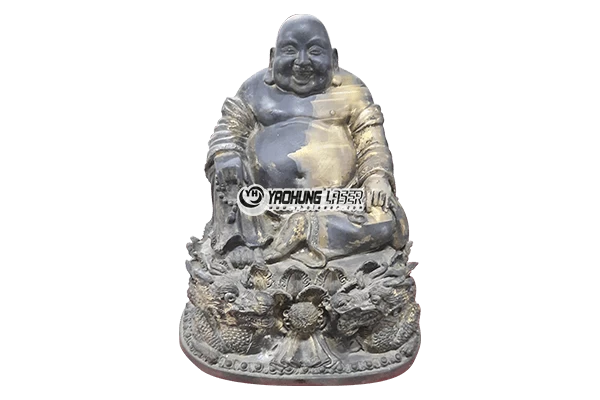

Sample Showcase

Demonstrating the actual results of laser cleaning

Operation Demo

Learn the actual workflow and operation method of the equipment

耀鋐科技｜雷射清洗機｜雷射設備_清洗機應用場景示範

耀鋐科技｜雷射清洗機｜雷射設備_多種清洗路徑

Technical Specifications

Item	YH-WAB100W	YH-WAB200W
Laser Wavelength	1064nm
Laser Power	100W	200W
Pulse Energy	1.5mj	2mj / 5mj
Frequency Range	1 ～ 3000KHz
Cleaning Range	1 ～ 105mm
Cleaning Width	1 ～ 105mm
Scanning Speed	20000 mm/s
Cleaning Modes	9 types
Cooling Method	Air cooling

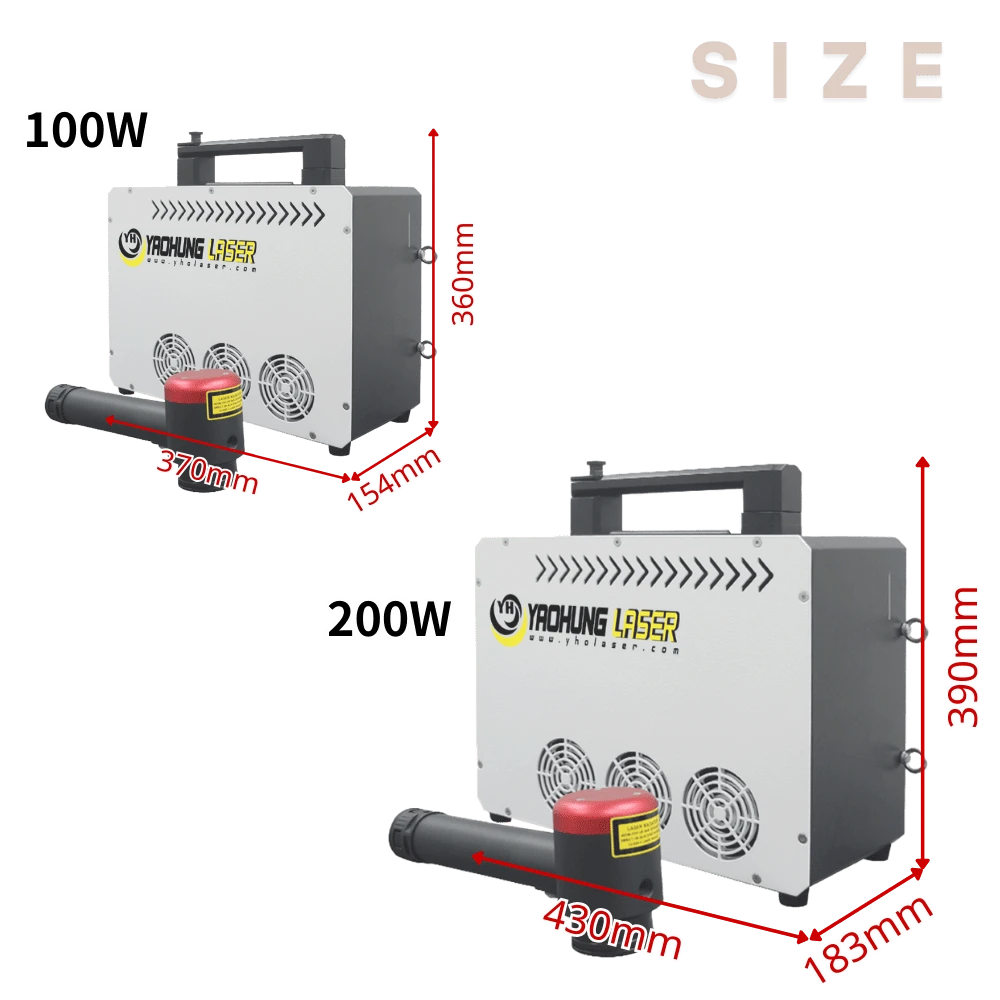

Machine Dimensions (±3%)	370×154×360mm	430×154×360mm
Machine Weight (±3%)	14kg	22kg
Power Consumption	<1000W / 220V	<1500W / 220V
Standard Accessories	Protective Goggles
