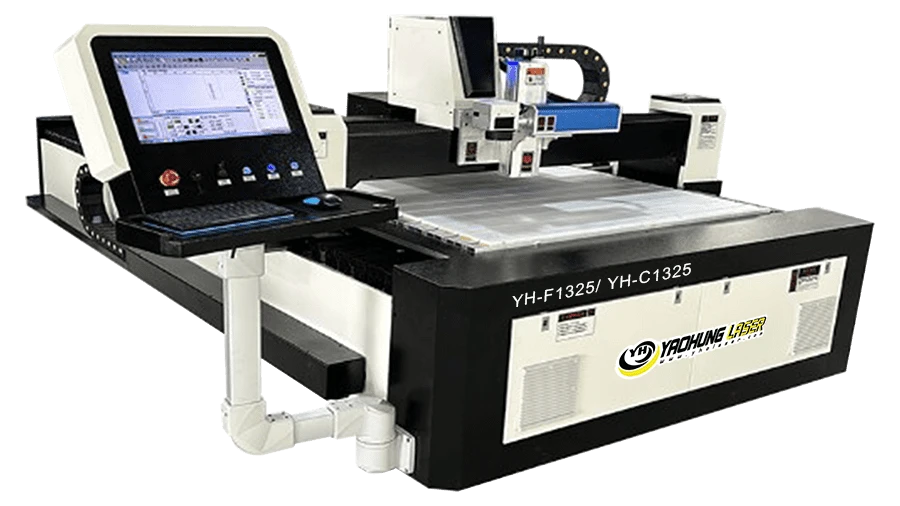

Large format marking machine

YH-F1325 / YH-C1325 / YH-U1325

Applicable materials, industry applications:

It can engrave metal materials and some dark high-hardness plastics, mainly in areas with high requirements for depth, smoothness and fineness.
Applicable to electronic parts, precision hardware, glasses and clocks, anodized engraving, hand tool engraving, aluminum deep carving, stainless steel surface engraving, IC table engraving, etc.

Use advanced and efficient simultaneous large-format laser marking machines.
Using high-precision linear modules and heavy-duty machine tools.
Can be used with optical fiber, CO2, and UV to meet the marking and engraving of various materials.

Stainless steel whitening, mirror paint removal and other bottom surfaces are uniform.
The photoelectric conversion rate is as high as 30%, which is more energy-saving and low-carbon.
Thin plate cutting can be combined with an air compressor to use air as the auxiliary gas for cutting without consuming oxygen and nitrogen, which is more convenient and economical.
The laser has high power and is suitable for engraving on a variety of materials.

Sample display

Operational Demonstration

【YaoHung耀鋐科技】雷射大幅面拼接技術：實現創意無限延伸　#lasermachine #metalengraving #lasermarkingmachine

耀鋐科技｜雷射打標機｜應用_這是你在找的?

Technical Parameters

Model	YH-F1325	YH-C1325	YH-U1325
Laser Output Power	10 ~ 300W
Laser Source	1064nm / CO2-10.6μm / 355nm
Standard Engraving Area	1300mm × 2500mm / 1500mm × 3000mm
Engraving Depth	≦ 1 mm
Total Power Consumption	Depends on Laser Source/Power
Minimum Line Width	0.03mm
Repeatability Accuracy	±0.02
Power Supply	AC220V-60Hz / AC380V-60Hz
Engraving Speed	600~1000 characters/s
Cooling System	Air Cooling / Water Cooling
Overall Dimensions	Customized Bed Specifications
