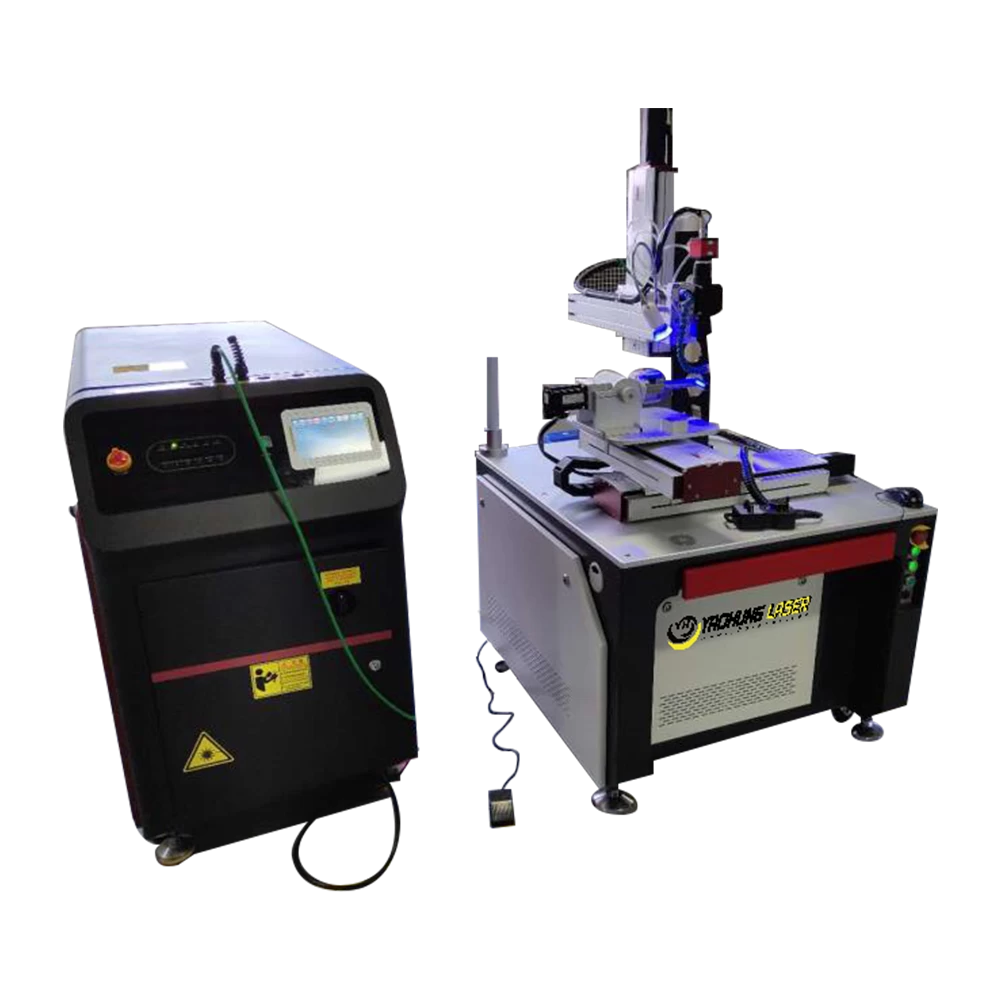

fiber transmission yag automatic welding machine 1

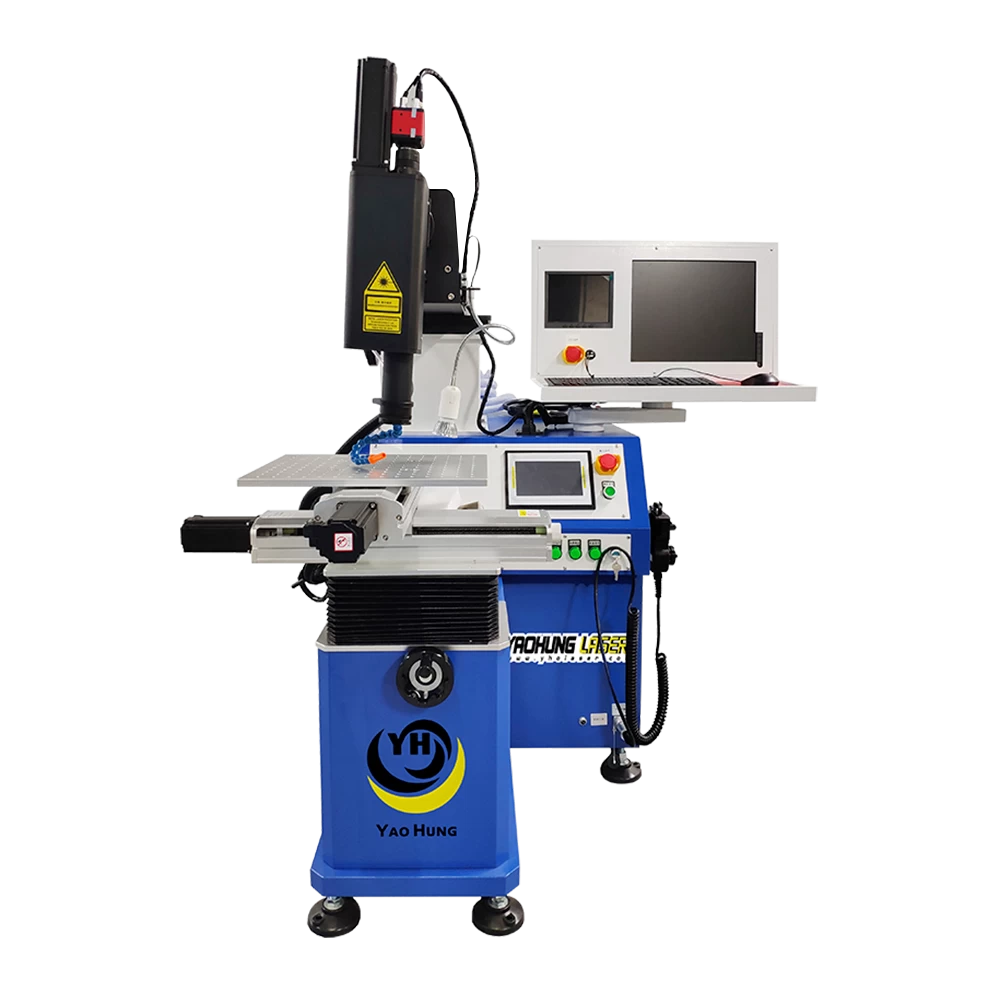

fiber transmission yag automatic welding machine 2

Fiber transmission YAG automatic welding machine

YH-WF200W / YH-WF300W / YH-WF400W / YH-WF500W / YH-WF600W

Applicable materials and industry applications
  • Various metals and alloy materials.
  • Mobile phone communications, jewelry crafts, electronic components, sensors and meters, precision machinery, hardware, automotive parts, etc.
INQUIRE
CATALOG
Machine features

  • The Z-axis of the worktable can be moved up and down to focus, controlled by an industrial computer.

  • Ceramic condenser cavity imported from the United Kingdom, resistant to corrosion and high temperature, with a life of 8-10 years.

  • The split chiller system is set to automatically control cooling to ensure the safe operation of the equipment.

  • Production welding has high efficiency and fast speed, and can be automatically and mass-produced in assembly line.

  • Complete automatic or semi-automatic spot welding, butt welding, overlay welding and seal welding.

  • The monitoring system uses a microscope, red light, and CCD. Configure external cooling system.

Operation Demonstration
youtube-8cccbpyi4ia

耀鋐科技｜雷射焊接機｜雷射設備_雷射自動焊接

youtube-elxqd6vfdli

耀鋐科技｜雷射焊接機｜應用_焊接多元使用(2)

Technical Specifications
Model YH-WF200W YH-WF300W YH-WF400W YH-WF500W YH-WF600W
Maximum Laser Power 200 W 300 W 400 W 500 W 600 W
Laser Wavelength 1064 mm
Spot Adjustment Range 0.3 ～ 2 mm 0.3 ～ 3 mm
Beam Splitting Method Energy splitting or time splitting (supports up to four light paths)
Closed-loop Control Mode Arbitrary waveform real-time power feedback control
Energy Fluctuation ≤ ±3%
Supported Systems Selectable support systems based on product configuration:
Galvo welding workstation, robotic arm, automatic welding workstation
Positioning Method Red light positioning (Optional: CCD or microscope)
Cooling Method Water Cooling
Total Power Consumption 7 KW 14 KW 16 KW 18 KW 22 KW
Power Requirements

AC 380V  50／60 Hz
Machine Dimensions
(Slight variations based on laser power)		 Length 1300mm × Width 2100mm × Height 2100mm　±3%　(Main Unit + Accessories)
Total Machine Weight
(Slight variations based on laser power)		 400 kg　±3%
