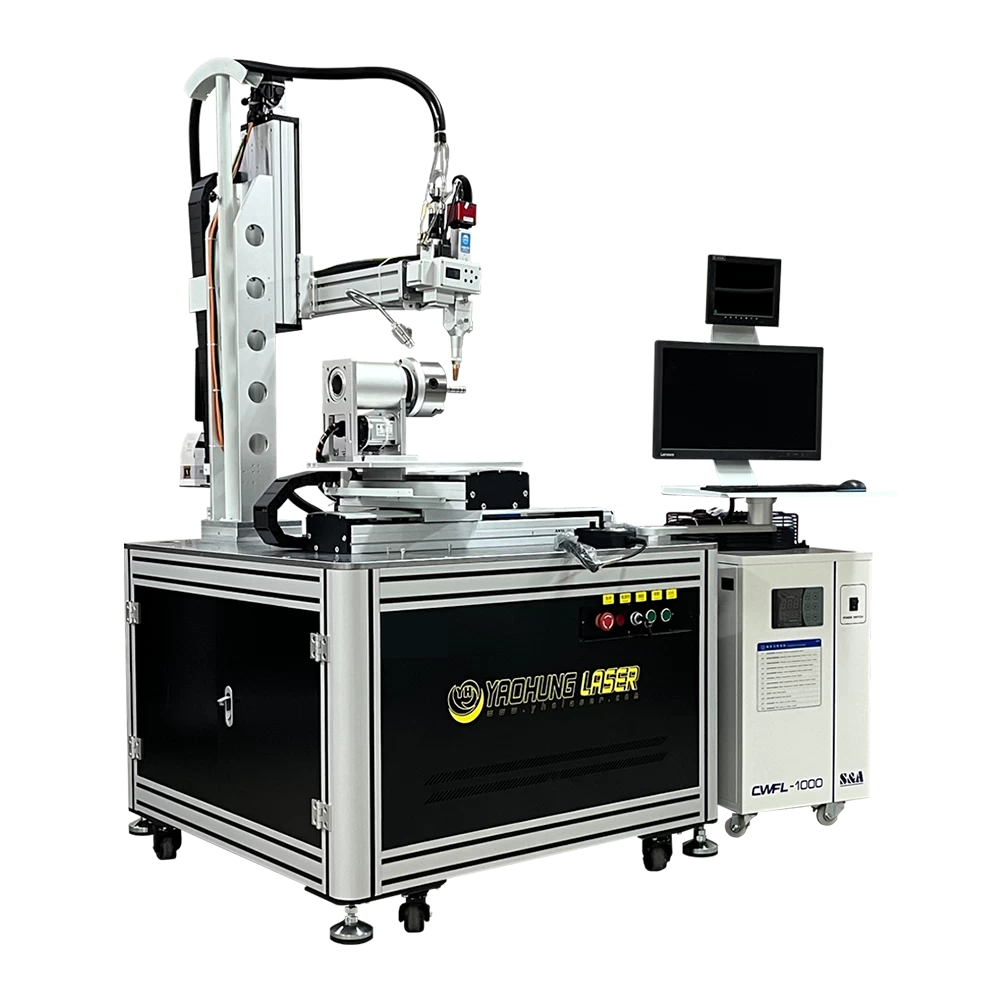

Multi-axis Fiber Laser Welding Machine

YH-10_LWLE4_OF / YH-15_LWLE4_OF / YH-20_LWLE4_OF / YH-30_LWLE4_OF

High-Precision Welding Multi-Axis Laser Welding
Applicable materials and industry applications
  • Various metals and alloy materials.
  • Mobile phone communications, jewelry crafts, electronic components, sensors and meters, precision machinery, hardware, automotive parts, etc.
INQUIRE
VIDEO
CATALOG
Product Advantages

Energy Feedback Fiber Laser Welder

Energy feedback technology ensures consistent laser delivery with high beam quality—ideal for precision welding with minimal variation.

High-Speed Welding × Efficient Production

Fast welding speeds help manufacturers complete orders quickly while maintaining excellent quality and repeatability.

Multi-Material Compatibility × Consistent Results

Capable of welding aluminum, stainless steel, copper, and other challenging materials with uniform, clean joints.

All-in-One Design × Stable Operation

The integrated structure with forced air cooling improves space efficiency and ensures stable performance over long production runs.

Simple Cleanup × Labor-Saving

High beam stability means less cleanup—just light finishing is needed, lowering operator fatigue and downstream time.

Automation-Ready × Smart Integration

Easily integrates with robotic arms, vision alignment, and AOI inspection systems—enabling continuous, automated production.

Sample Showcase

Explore the appearance and craftsmanship of laser-welded samples.

Fiber laser welding curved surface sample

Curved Surface Welding

Fiber laser welding medical blade sample

Medical Blade Welding

Fiber laser welding airtight valve sample

Airtight Valve Welding

Operation Demonstration

Learn the actual workflow and operation method of the equipment

Fiber laser automatic welding machine multi-axis precision demo

Laser Automatic Welding Machine – Welding Demonstration

Fiber welding machine demo on coin-size parts

Multi-Axis Automatic Precision Welding Demonstration

Technical Specifications
Model YH-10_LWLE4_OF YH-15_LWLE4_OF YH-20_LWLE4_OF YH-30_LWLE4_OF
Laser Power 1000W ～ 3000W（Customizable High Wattage）
Laser Wavelength 1080 ± 10 nm
Output Power Stability ＜±1.5%
Maximum Modulation Frequency 5 khz
Operating Mode Continuous / Modulated
Power Adjustment Range 10% ～ 100%
Welding Depth
(Stainless Steel 304)		 1.5 mm 2.0 mm 4.0 mm 5.0 mm
Welding Depth
(Pure Aluminum)		 1.0 mm 1.5 mm 2.0 mm 3.0 mm
Welding Depth
(Copper)		 0.5 mm 1.0 mm 2.0 mm 2.5 mm
Beam Quality ＜ 1.2 M²
Fiber Length 15m (customizable)
Total Power Consumption 7 KW 9 KW 10 KW 15 KW
Cooling Method Water Cooling
Power Supply Input AC 220V 50／60 HZ
Machine Dimensions
(Slight variations based on laser power)
Length*Width*Height ±3% (mm)		 1100 * 1500 * 2100 (Main Unit + Accessories)
Total Machine Weight ±3%
(Slight variations based on laser power)		 250 kg

FAQ

Yes. The equipment is equipped with a multi-axis linkage control system, enabling precise welding of irregular structures, multi-angle joints, and curved surfaces. It can easily process complex geometries and multi-surface assemblies.

Compared with conventional single-axis machines, it significantly improves curved surface stability and weld seam consistency, making it ideal for electronic components, hermetic structures, and medical sensor modules where strict welding quality is required.

The machine provides a positioning accuracy of up to ±0.02mm. With integrated optical modules and temperature control systems, it ensures reliable control of weld width and energy output.

It is suitable for medical-grade hermetic housings, high-frequency connectors, and aluminum packaging parts. The welds can pass hermeticity, tensile, and surface quality tests, meeting the demanding standards of medical manufacturing, electronic packaging, and precision sealing.

Yes. It supports integration with robotic arms, AOI optical inspection, and vision positioning platforms. It can also connect to MES systems and modular conveyor equipment, making it suitable for automated loading/unloading and multi-station workflows.

■ Learn More: Laser Welding and Robotic Automation

In addition, we also provide Mould Mending Machines and Jewellery Spot Welding Machines for flexible applications such as mould repair and jewelry welding.
