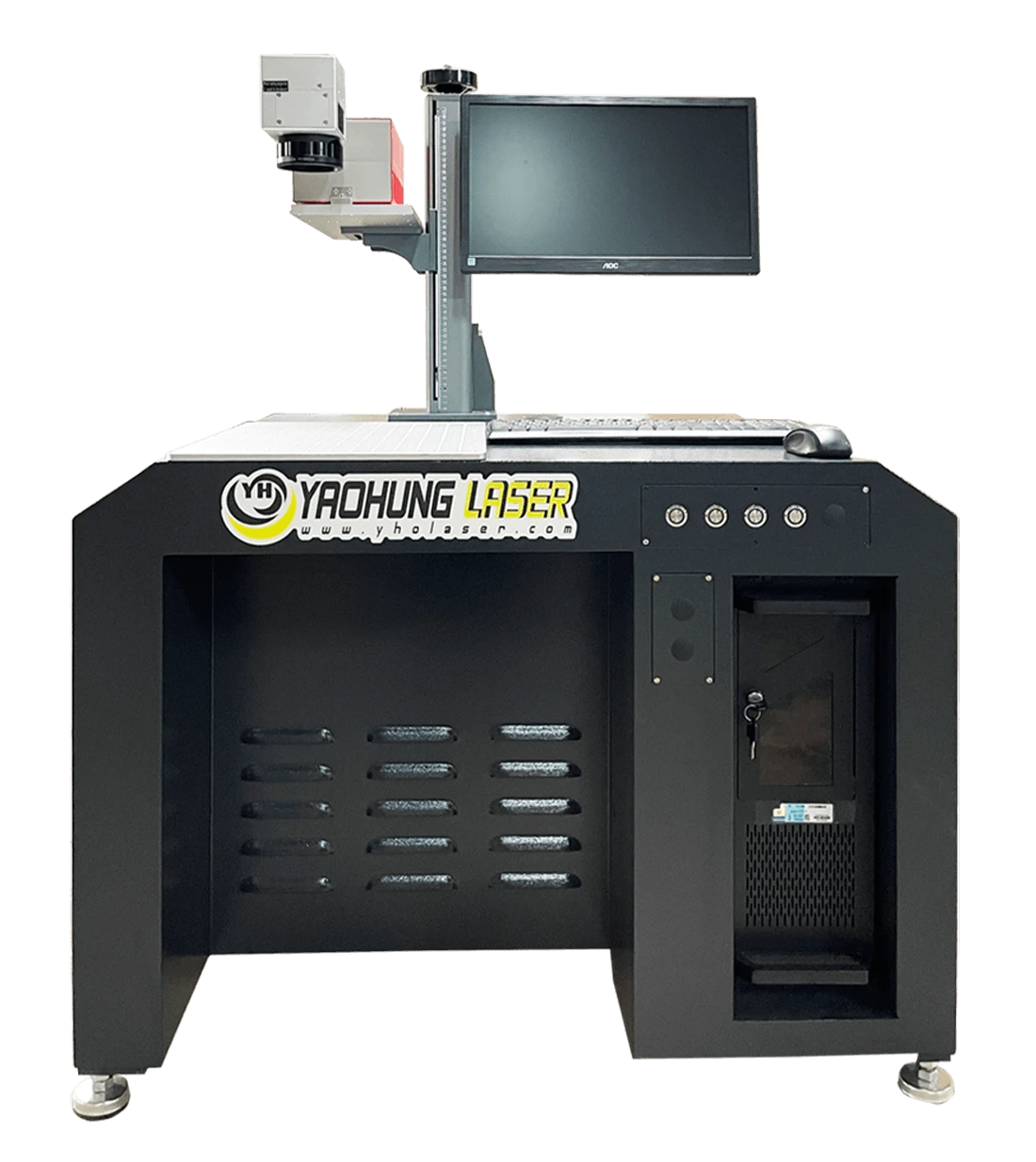

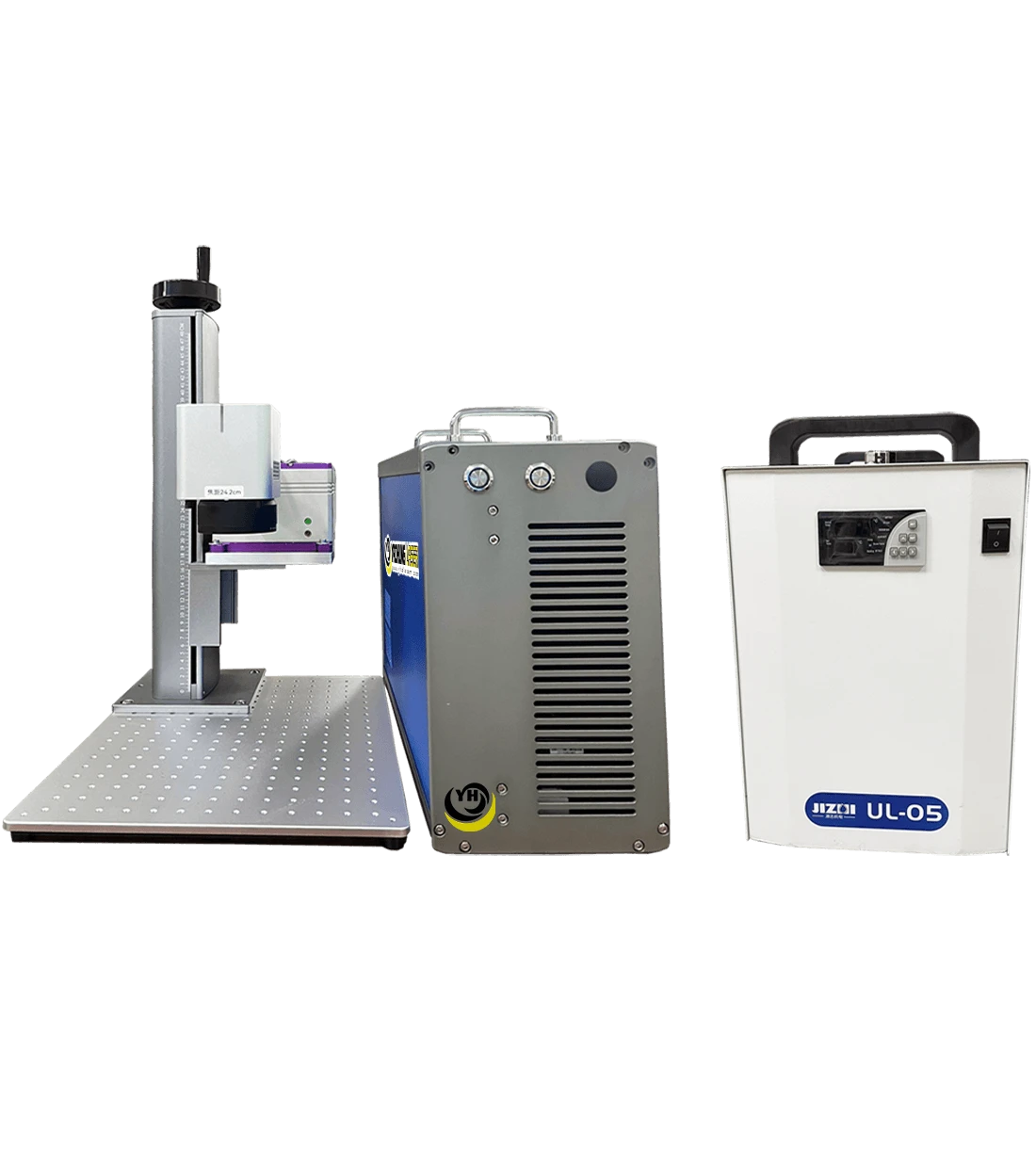

UV laser marking machine-water-cooled (cabinet type/desktop type)

YH-FU5W / YH-FU10W

Applicable materials:
  • Glass engraving, special plastics, PCB boards, rubber, precision electronic parts, non-metallic materials, wafer cutting, some hardware metal materials.
INQUIRE
CATALOG

Machine Features

  • It can be customized with automatic production line operation, easy to operate.

  • Compatible with CorelDRAW, AutoCAD SAF, DXF, AI and other output formats of drawing software.

  • It can replace ink jet coding on a variety of materials with high reflectivity for processing with less thermal impact, engraving LOGO, batch number, text, graphics, serial number, QR code, etc.

  • Water-cooled cooling system.

Product advantages

  • Chinese user interface.

  • Clear marking, permanent marking is not easy to wear.

  • High marking accuracy and fast speed.

  • No smoke, no pollution, no damage to the surface of the material.

  • You can choose desktop/cabinet type according to your needs.

Technical Specifications
Model YH-FU5W YH-FU10W
Laser Power 5W 10W
Laser Wavelength 355 nm
Marking Area 110×110mm (Various options available)
Engraving Line Speed ≦ 3000 mm/s ～ 7000 mm/s
Minimum Line Width 0.02 mm
Minimum Character Size 0.2 mm
Repeat Accuracy ± 0.02
Metal Engraving Depth 0.1 mm
Exclusive Software
  • Controls X, Y, Z axes, and rotary axis, supports FPK, PPK, and R05 first pulse suppression.
  • 1 RS232 communication port for PLC communication.
  • Supports 1-axis encoder input for on-the-fly marking.
  • Built-in DSP for marking computation without using CPU time.
  • Input signal at 24V, directly connects to PLC.
  • Provides MARKING READY, MARKING END, MARKING BUSY signals.
  • Offline marking control for up to 16 files, 64 layers, and 1024 marking graphics preview and counting.
  • Supports expanded marking area, 2.5D, 3D, XY platform control, large area splicing, and visual auto-alignment.
Power Requirements 220V / 60Hz
Total Power Consumption 650W ～ 850W
Cooling System Water Cooling
Supported File Formats All fonts in Windows operating system
Machine Dimensions
Length*Width*Height ±3% (mm)		 Desktop Type: Length 580mm × Width 560mm × Height 620mm
Small Cabinet: Length 760mm × Width 600mm × Height 1300mm
Large Cabinet: Length 1000mm × Width 1000mm × Height 1600mm
Total Machine Weight
±3%		 Desktop Type: Below 60 kg / Cabinet Type: Below 150 kg
