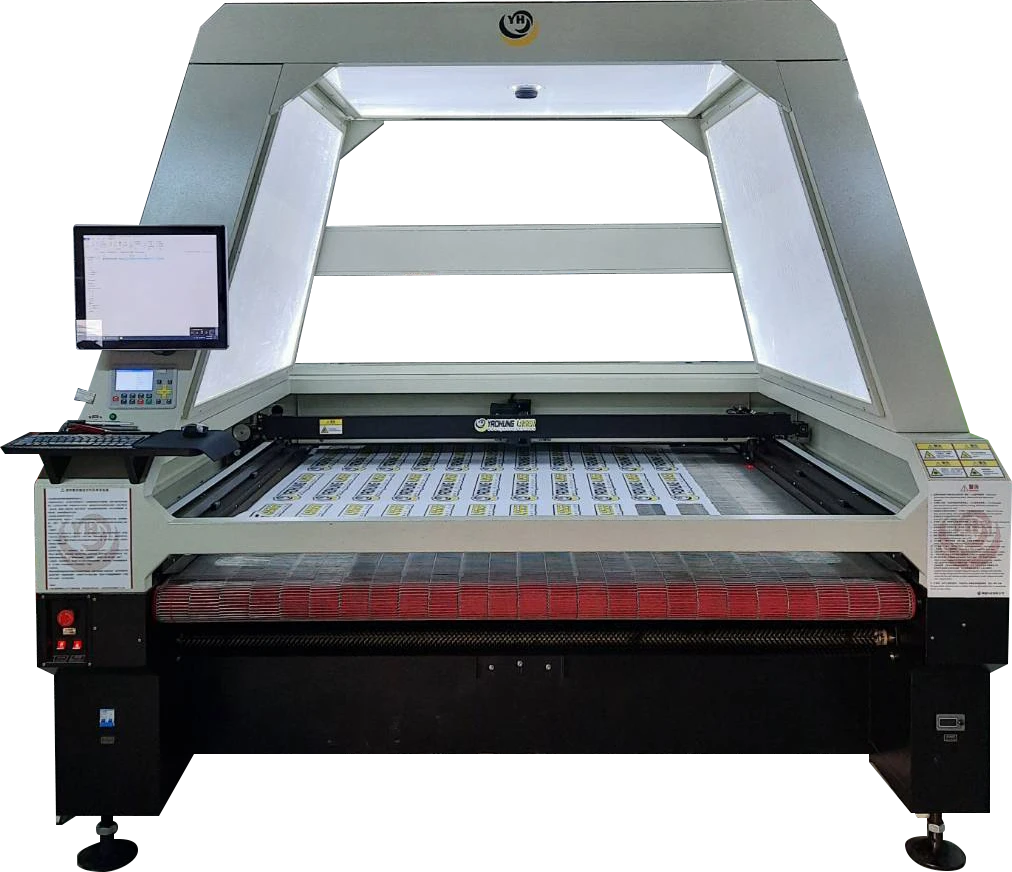

Large bed CCD automatic alignment/feeding cutting machine

YH-CM1610AFC／YH-CM1810AFC／YH-CM1815AFC

Applicable materials

Suitable for various processing materials, including PC, PE, ABS, EVA, wood, bamboo and wood products, plexiglass, glass, wine glasses, leather, cloth, paper, rubber, shells, buttons, plastic, rubber, ceramic tiles, crystal, jade, Non-metallic materials such as acrylic.

Machine features

Custom specifications are easy to operate.
Compatible with CorelDRAW, AutoCAD SAF, DXF, AI, and other formats for drawing software output.
Economical equipment with stable performance and easy operation, achieving high-quality and high-efficiency processing results for various industries.

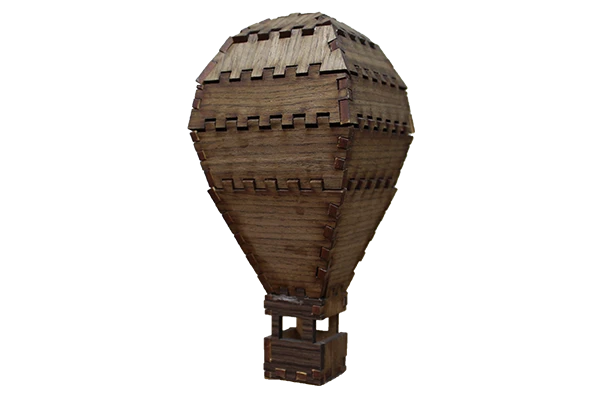

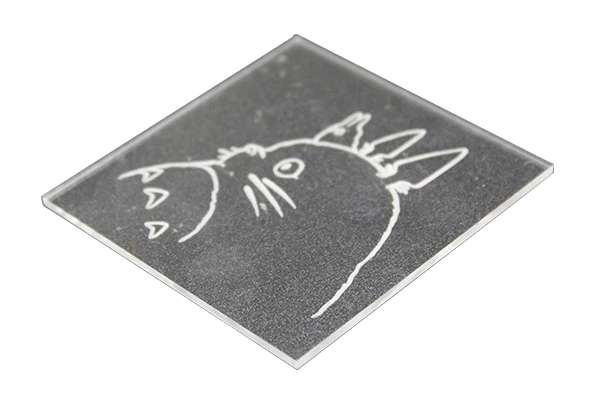

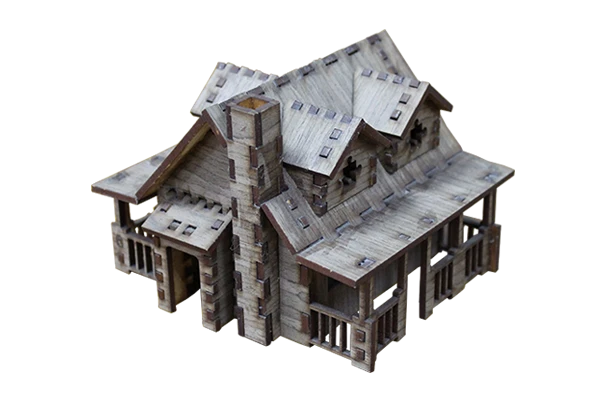

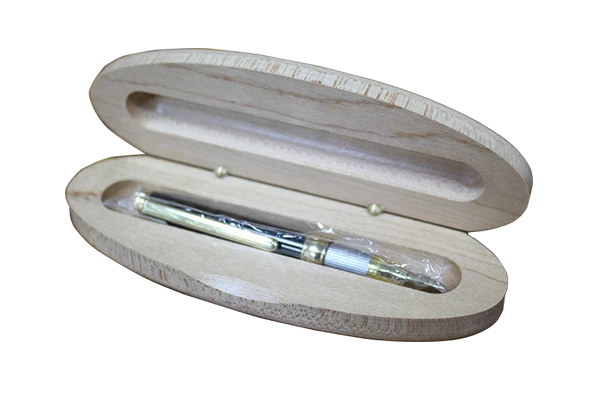

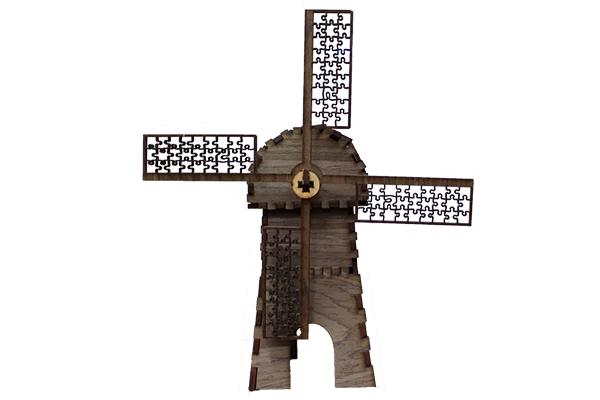

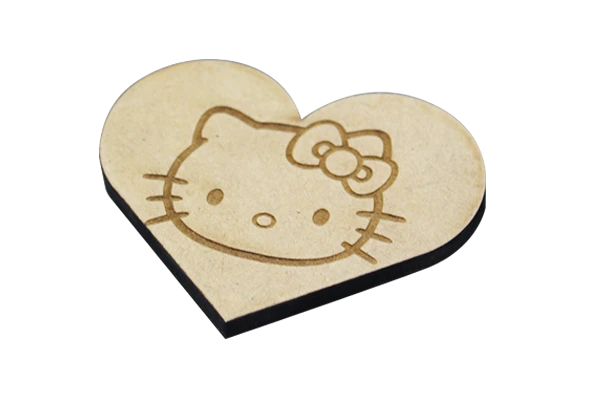

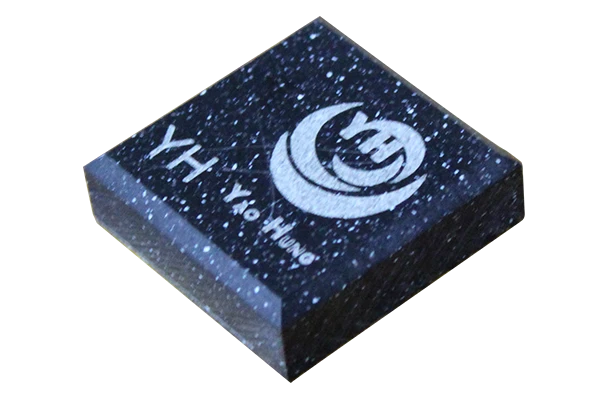

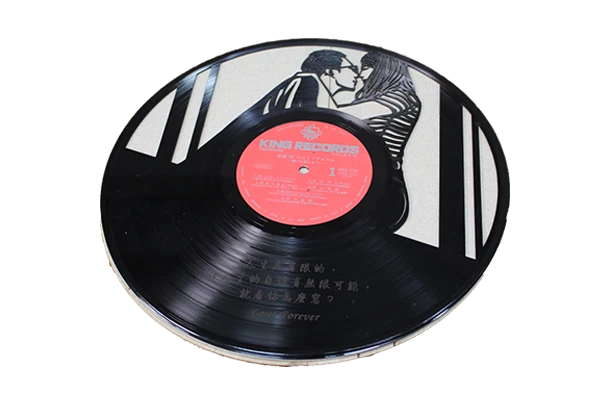

Sample display

Large Bed CCD Automatic Alignment / Feeding Cutting Machine
Model	YH-CM1610AFC	YH-CM1810AFC	YH-CM1815AFC
Laser Type	Sealed CO2 Laser Tube
Laser Power	100W / 130W / 150W / 180W
Engraving Area	1600×1000mm	1800×1000mm	1800×1500mm
Engraving Speed	0～60,000 mm/min
Positioning Accuracy	±0.03 mm
Repeat Positioning Accuracy	±0.01 mm		±0.02 mm
Operating Voltage	AC220V ±10, 60Hz
Total Power	＜1,650W
Operating Temperature	0 ～ 45℃
Operating Humidity	5～95％
Minimum Formed Text	English 1 x 1 mm
Supported Graphic Formats	PLT, AI, DXF, DST, DSB, BMP, JPG, GIF, PNG, MNG, etc.
Cooling Method	Forced Water Cooling and Protection System
Auxiliary Devices	Exhaust Fan and Smoke Pipe
Control Software	32-bit DSP Control System
Compatible Software	CorelDraw／AutoCAD／EngraveLab／Illustrator／GCad
CCD （mm）	Optional 150×150 mm (0.1mm) or Full Frame (0.2mm)
Machine Dimensions LengthWidthHeight ±3%（mm）	173018502540 (Full Frame) (Material Rack Approx. 10001850900)	173023602540 (Full Frame) (Material Rack Approx. 10001850900)	229023602540 (Full Frame) (Material Rack Approx. 10001850900)
Total Machine Weight ±3%（kg）	Approx. 700 kg	Approx. 750 kg	Approx. 800 kg
Machine Configuration Options	Customizable Cutting Table Available
