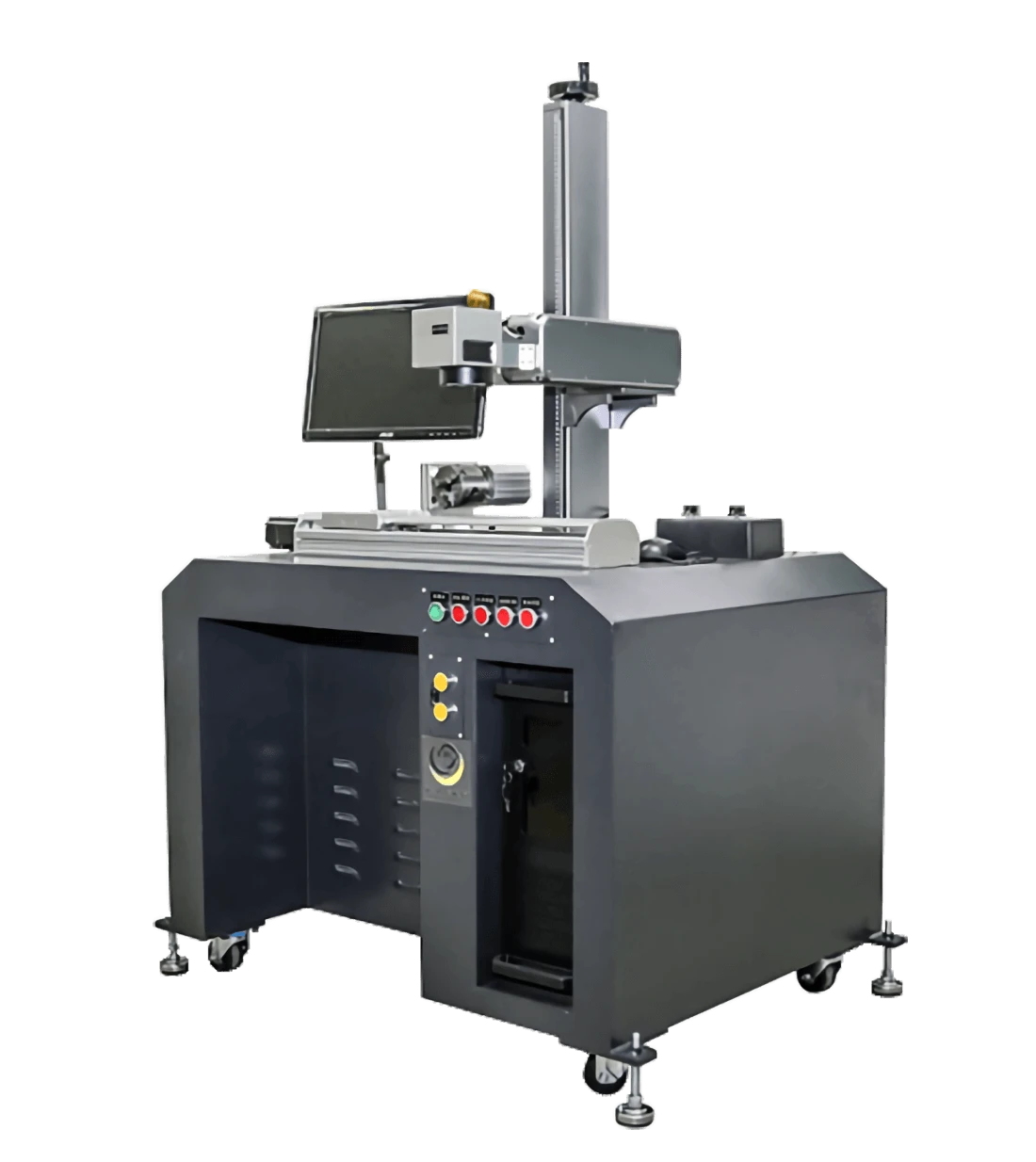

Fiber laser-F series

YH-F20W / YH-F30W / YH-F50W / YH-F100W

Applicable Materials and Industry Applications

The F Series Fiber Laser Marking Machine is designed for high precision needs, capable of engraving on metal materials and some dark, high-hardness plastics, ensuring engraving depth, smoothness, and precision.
It is suitable for electronic components, precision hardware, eyewear and watches, anodized engraving, hand tool engraving, deep engraving on aluminum parts, black marking on stainless steel surfaces, IC surface engraving, and more, achieving precise processing without damaging the substrate.
Whether it's complex patterns, micro text, or precise surface treatments, the F Series offers efficient and eco-friendly solutions.

Precision, Efficiency, and Durability

The F Series Fiber Laser Marking Machine boasts exceptional precision, enabling efficient engraving and marking on various materials such as metal and plastic. Its clear marking effects, resistance to wear, and non-damaging properties make it particularly suitable for industrial applications requiring long-term use. With its outstanding durability, it is the ideal choice in the field of industrial marking.

Powerful Laser Capabilities

Equipped with powerful fiber laser technology, the F Series meets the engraving needs of metal and high-hardness plastic materials, significantly enhancing production efficiency and processing quality. The stable high-power output ensures consistent and precise marking, making it the go-to solution for high-performance industrial production.

Eco-friendly and Productive

The fiber laser marking machine does not use any chemical consumables during the marking process, fully complying with international environmental standards while reducing the environmental risks in the production process. It not only helps enhance the company’s environmental image but also reflects the company’s commitment to social responsibility, contributing to sustainable development.

High-efficiency Automation System

The F Series Fiber Laser Marking Machine is designed for easy integration into automated production lines, offering flexible customization options to meet diverse industrial application needs. It not only significantly improves production efficiency but also reduces production costs by minimizing manual intervention, helping companies achieve efficient production operations.

Maximized Production Efficiency

An advanced cooling system ensures long-term stable operation of the equipment, effectively preventing overheating and maintaining consistent processing quality. The automated operation system further reduces the risk of human error, saving manpower and maximizing production benefits for companies.

Wide and Versatile Applicability

The F Series Laser Marking Machine is compatible with various design software such as CorelDRAW, AutoCAD, SAF, DXF, AI, and more, allowing flexible handling of diverse marking requirements including logos, batch numbers, text, graphics, serial numbers, barcodes, and more. It is the ideal replacement for traditional inkjet coding systems.

Intuitive Interface for Easy Operation

Equipped with a simple and intuitive Chinese interface, it caters to the operational needs of users ranging from beginners to professional technicians. The intuitive design not only enhances operational efficiency but also significantly shortens training time, enabling staff to quickly get up to speed, thereby improving overall productivity.

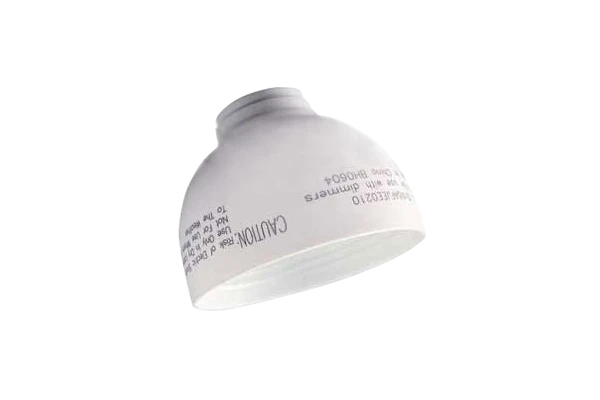

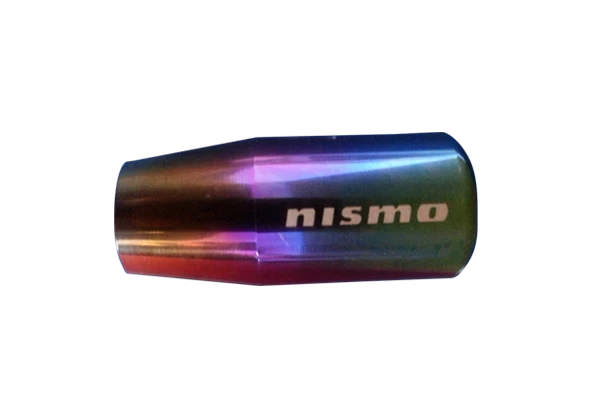

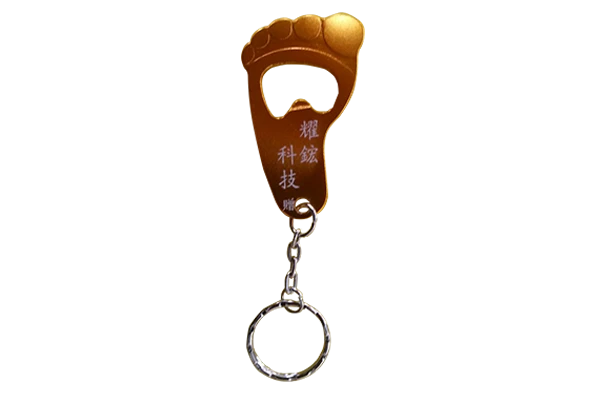

Sample display

Operational Demonstration

耀鋐科技｜文創商品｜金屬鑰匙圈影像雕刻

耀鋐科技｜雷射打標機｜應用_分度盤/旋轉盤雷射打標展示

Technical Parameters

Model	YH-F20W	YH-F50W	YH-F100W
Laser Wavelength	1064nm
Repetition Frequency	20 - 200 KHZ
Beam Quality	M²≦ 1.6
Marking Area	70 × 70mm 110×110mm 150×150mm 200×200mm 300×300mm (Multiple Options Available)
Engraving Depth	(Depends on Material and Focusing Lens)
Engraving Speed	4.0m/s
Minimum Line Width	0.08mm
Minimum Character Size	0.15mm
Repeat Positioning Accuracy	±0.02 mm
Dedicated Software	Controls X, Y, Z motion axes and rotation axis; supports FPK, PPK, R05 first pulse suppression. One IO communication port for PLC communication. Supports one-axis encoder input for flying marking. Built-in DSP; marking operations do not occupy computer CPU time. 24V input signal, can be directly connected to PLC. Provides MARKING READY, MARKING END, MARKING BUSY signals. Supports offline marking control, capable of managing 16 files, 64 layers, and previewing and counting up to 1024 patterns. Expandable to support large-area marking, 2.5D, 3D, XY platform control, large image stitching, and visual automatic alignment.
Power Supply	220V / 60Hz
Total Power Consumption	650W	700W	750W
Machine Dimensions LWH ±3% (mm)	760 x 600 x 1300 mm (500mm Z-axis) Small Cabinet 760 x 600 x 1600 mm (800mm Z-axis) Small Cabinet 1000 x 1000 x 1300 mm (500mm Z-axis) Large Cabinet 1000 x 1000 x 1600 mm (800mm Z-axis) Large Cabinet 580 x 560 x 620 mm (500mm Z-axis) Desktop Model
Overall Machine Weight ±3%	Small Cabinet Approx. 110kg / Large Cabinet Approx. 150kg / Desktop Model Approx. 60kg
Supported File Formats	All fonts and styles in the Windows operating system font library
