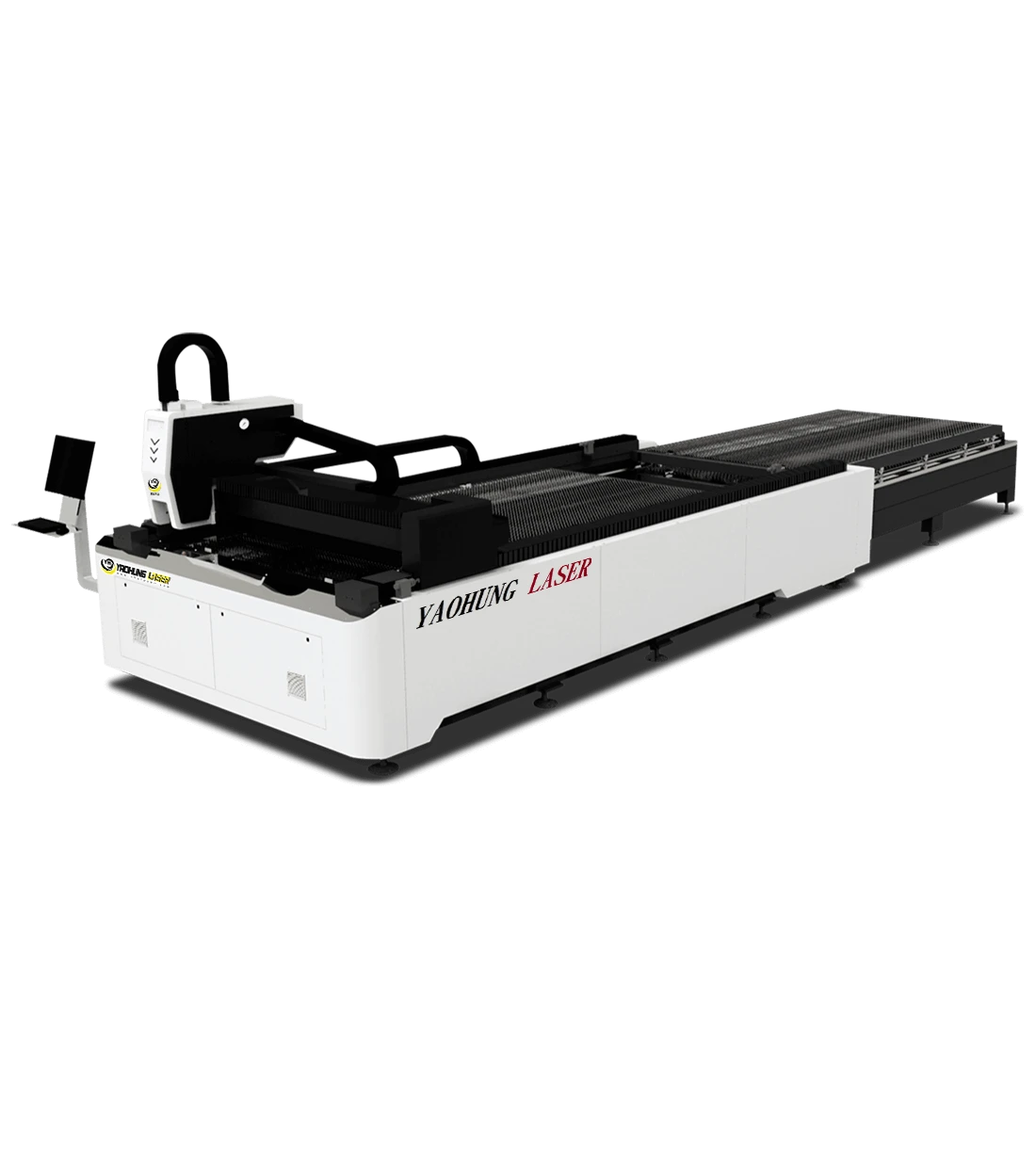

exchanged-bed1

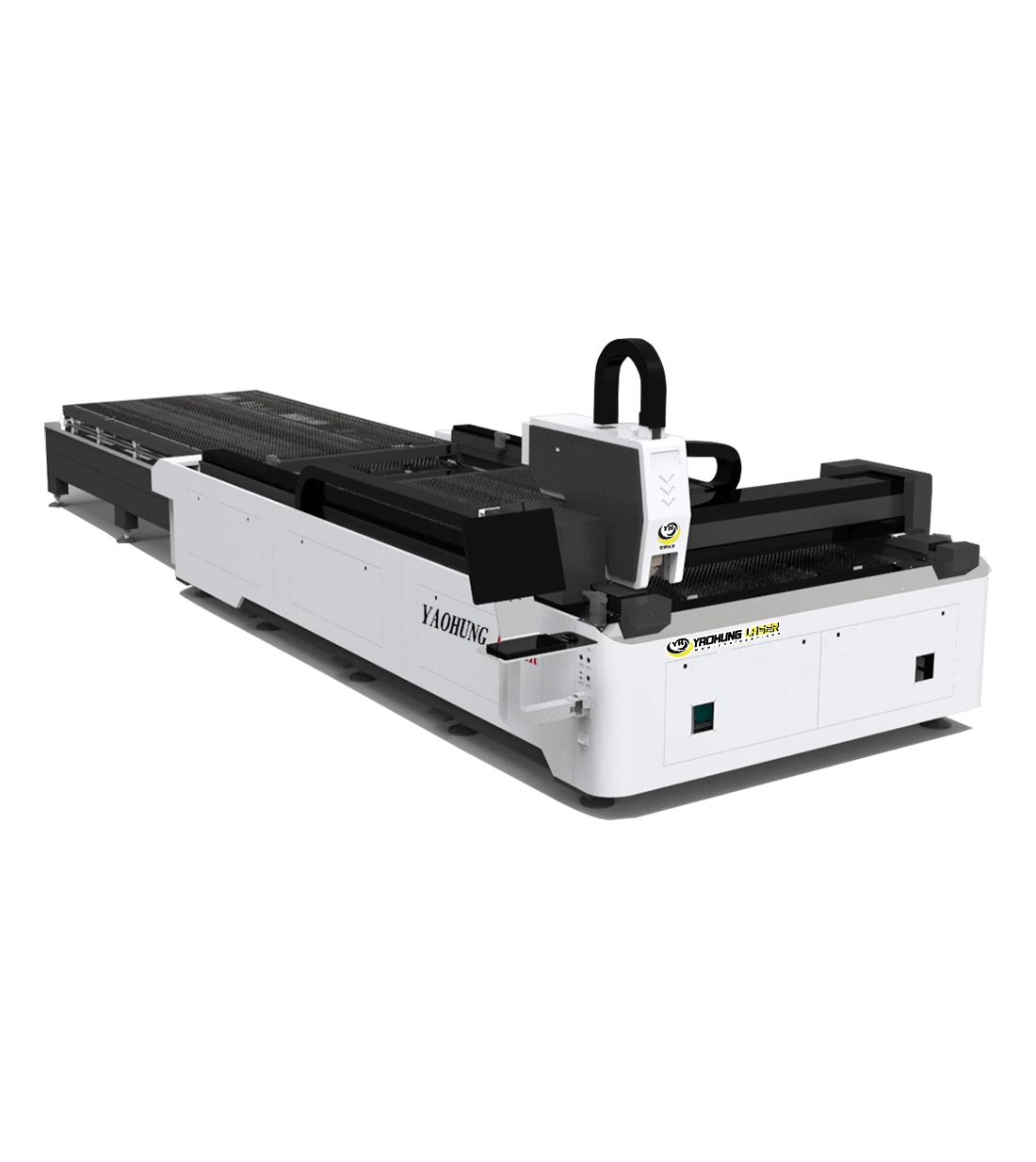

exchanged-bed2

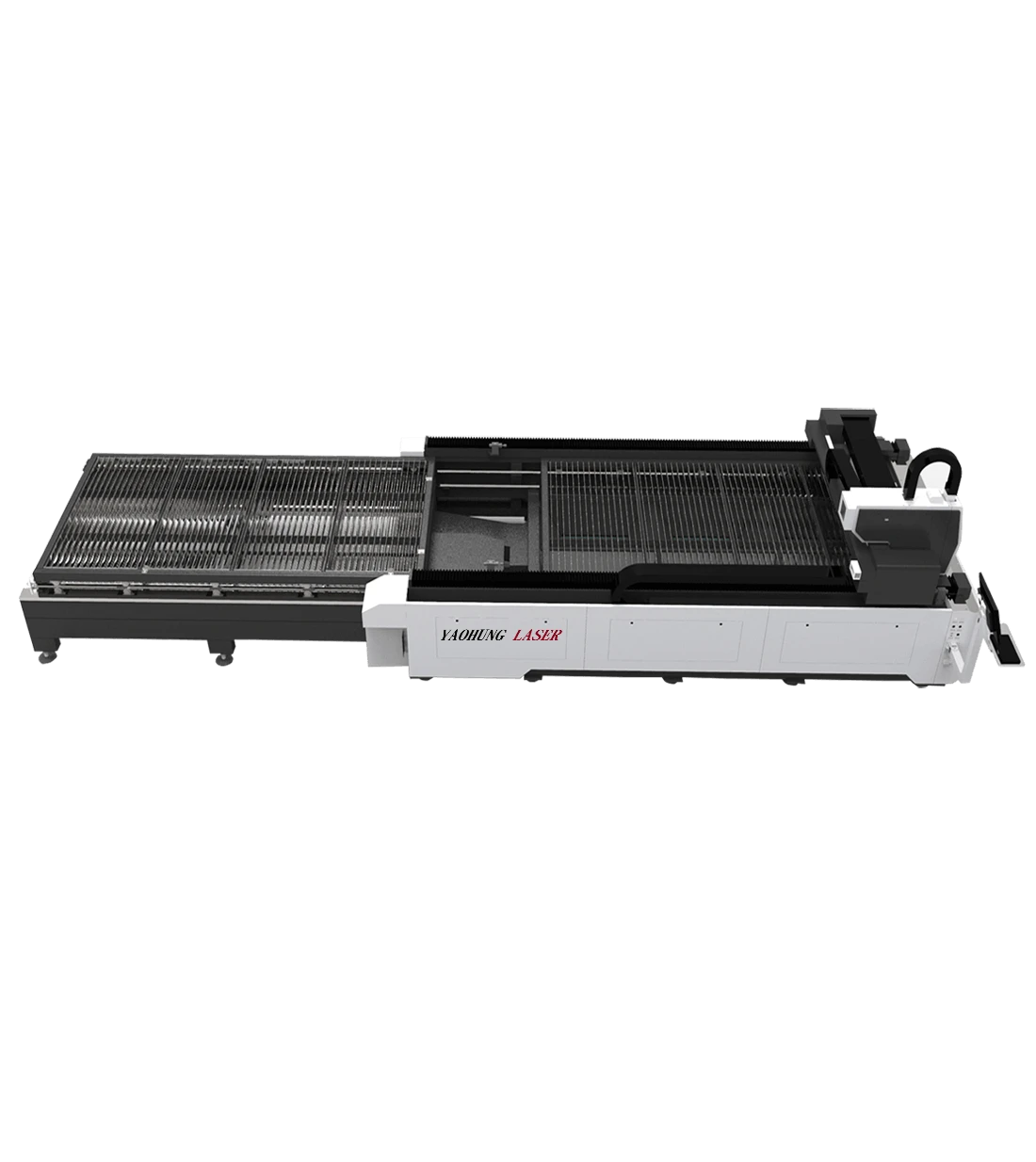

exchanged-bed3

Large Sheet Metal Cutting Machine - Exchangeable Table

YH-FCM1325L2 / YH-FCM1530L2 / YH-FCM2040L2

Applicable materials and industry applications
  • Suitable for various metals and alloys.
  • Widely used in metal crafts, hardware products, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys and advertising industries.
INQUIRE
CATALOG

Machine Features

  • The machine can be equipped with autofocus laser head, the focal spot can be automatically adjusted. It's convenient and accurate.
  • The cutting copper nozzle on the laser head can be quickly replaced for cutting different thickness plates.
  • The cutting table designed for large-area engraving and cutting allows users to cut or engrave on materials of different thicknesses at will.
  • It's an economical equipment with stable performance and easy operation, achieving high-quality and high-performance processing results for various industries.

Product Advantages

  • High precision, fast speed, narrow slit, small light spot, smooth cutting surface without barb, no contact between the laser head and plate material, no scratches, no deformation. The efficiency of Sheet Metal Laser Cutter is twice as high as CO2 Laser Cutter with the same power, and the photoelectric conversion efficiency is three times higher.

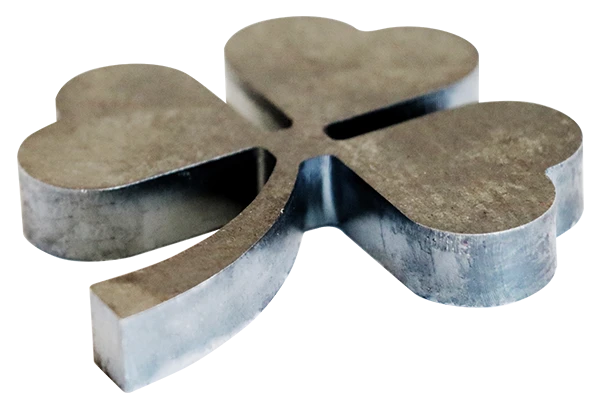

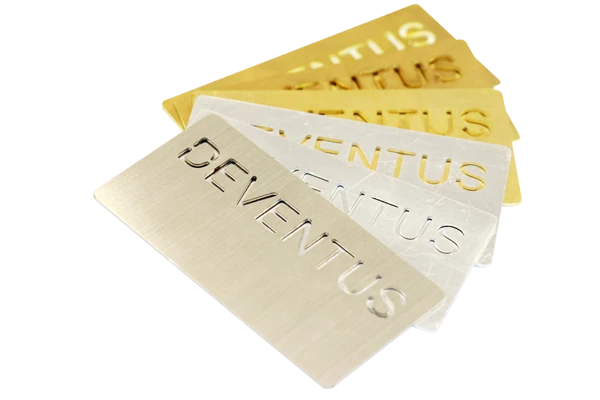

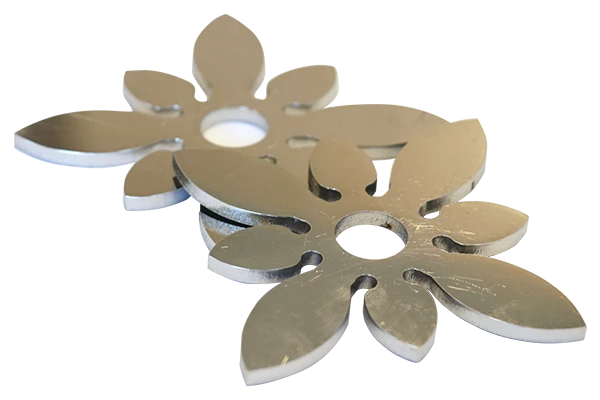

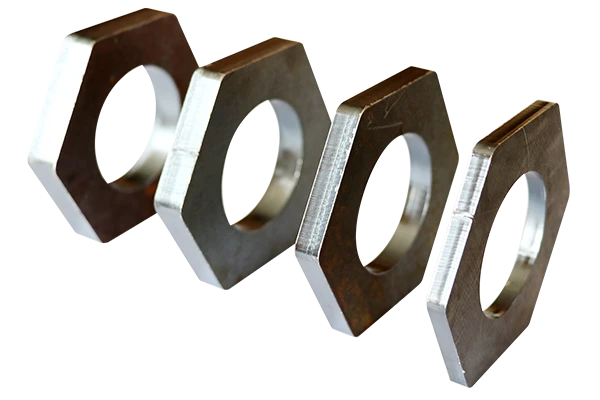

Sample display
1
2
3
4
Operational Demonstration
youtube-q41piu3aoki

耀鋐科技｜雷射板金切割機｜雷射設備_板金切割機交換床台運作

youtube-nd0ylufkc-s

耀鋐科技｜雷射板金切割機｜應用_切割厚度挑戰


Large Sheet Metal Cutting Machine - Exchangeable Table Technical Specifications
Model YH-FCM1325L2 YH-FCM1530L2 YH-FCM2040L2
Processing Area 1300*2500mm 1500*1300mm 2000*4000mm
Positioning Accuracy ±0.03mm
Maximum Travel Speed 70 - 110 m/min
Maximum Acceleration 1.5 ~ 1.8 G
Focal Length of Cutting Head 125 mm

Table Load Capacity (per table)

 1100kg 1400kg 1600kg
Laser Power 1500W to 12000W
Total Power of Machine 1500W (220V_20KW)
2000W (220V_21KW)
3000W (380V_31KW)
6000W (380V_41KW)
12000W (380V_69KW)
Standard Safety Features Laser Abnormal Alarm, Cutting Anomaly Alarm, Water Chiller Abnormal Alarm, Low Gas Pressure Alarm, Automatic Rail Lubrication Feature, Automatic Dust Removal System
Laser Head Auto-Focus / Manual Focus
Cutting Gases Oxygen / Nitrogen / Air (self-provided)
Screen Size 17～21 inches
WIFI Remote Functionality Optional
Control Operating System Baichu Operating System (other systems optional)
Bed Material Welded bed
Machine Dimensions
Length*Width*Height ±3% (mm)		 6480*2600*1700 7480*2800*1700 9480*3300*1700
Total Machine Weight
±3%		 3000kg 4500kg 6000kg
Machine Size Configuration Customizable cutting machine configurations available
