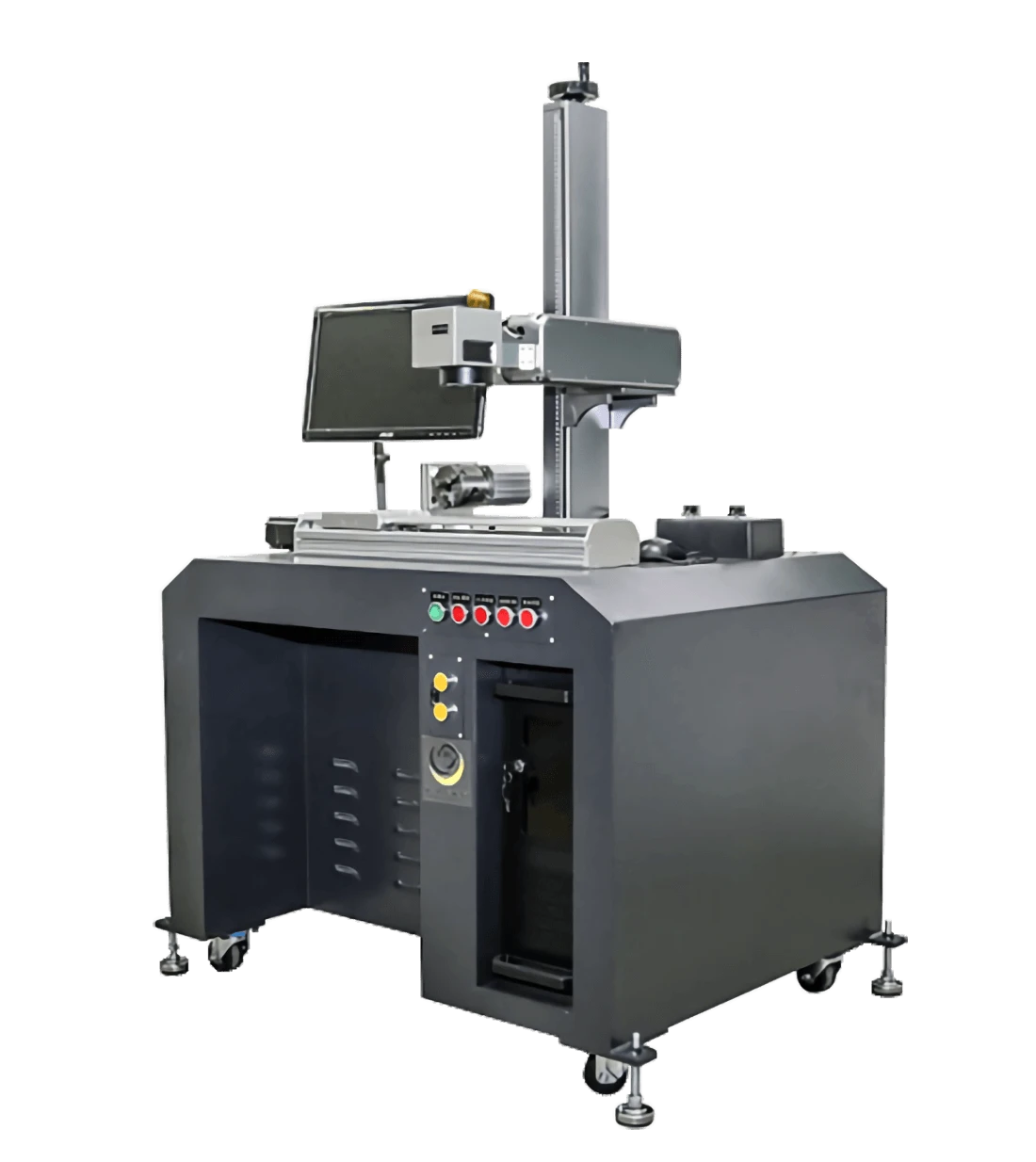

Fiber laser-FI series

YH-FI20W / YH-FI30W / YH-FI50W

Applicable Materials and Industry Applications:

The F Series Fiber Laser Marking Machine is designed for high precision needs, capable of engraving on metal materials and some dark, high-hardness plastics, ensuring depth, smoothness, and fine detail in the engravings.
It is suitable for electronic components, precision hardware, eyewear and watches, anodized engraving, hand tool engraving, deep engraving on aluminum parts, black marking on stainless steel surfaces, IC surface engraving, and more, achieving precise processing without damaging the substrate.
Whether it's complex patterns, micro text, or precise surface treatment, the F Series provides efficient and eco-friendly solutions.

Supported by German IPG Technology

The FI Series utilizes German IPG laser sources, offering stable beam quality and high performance, making it particularly suitable for demanding industrial marking applications. Its exceptional precision and reliability can perfectly present micro text or complex patterns with clear marking results that are resistant to wear, meeting the needs for long-term durability.

Powerful Laser Capabilities

Capable of handling engraving requirements for various metals and high-hardness plastics, significantly improving production efficiency and quality, making it an ideal choice for industrial marking.

Eco-friendly and Productive

The process requires no chemical consumables, fully meeting environmental standards. This not only contributes to sustainable development but also demonstrates the company’s commitment to corporate social responsibility.

High-efficiency Automation System

The FI Series Fiber Laser Marking Machine easily integrates into automated production lines and offers flexible customization options. It is user-friendly and widely applicable, meeting various production needs.

Maximized Production Efficiency

Equipped with a precise cooling system, the equipment ensures stable operation and consistent processing quality, effectively enhancing production efficiency and reducing the risk of overheating. The unified automated operation further minimizes human errors, saving labor costs and supporting efficient business operations.

Wide and Versatile Applicability

Compatible with various design software such as CorelDRAW, AutoCAD, SAF, DXF, AI, it seamlessly replaces traditional inkjet coding, flexibly creating logos, batch numbers, text, graphics, serial numbers, barcodes, and more, meeting diverse marking needs.

Intuitive and Easy-to-use Interface

The Chinese interface is simple and intuitive, suitable for users of all levels, enhancing operational convenience.

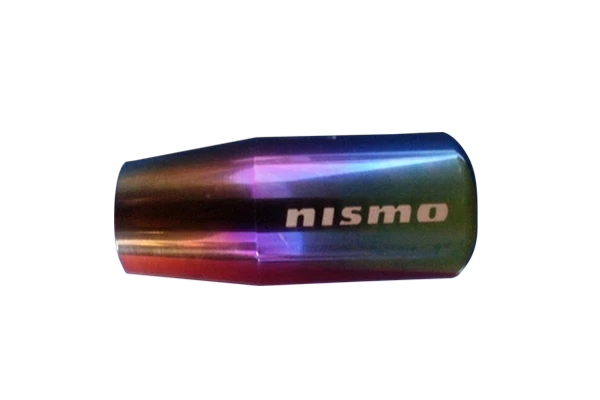

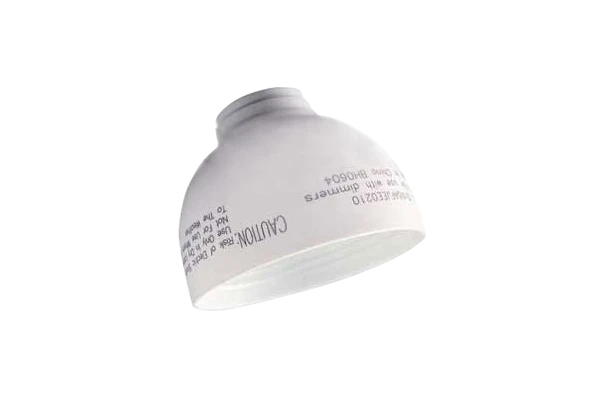

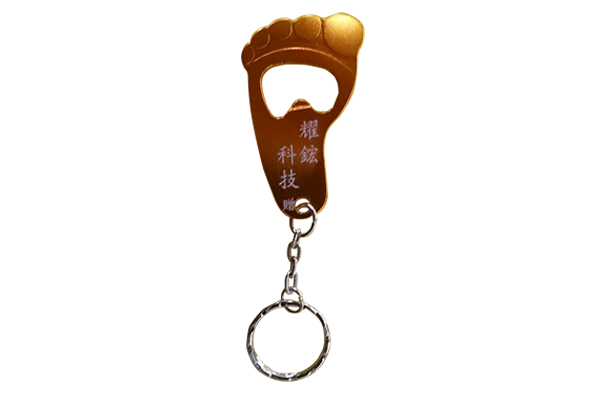

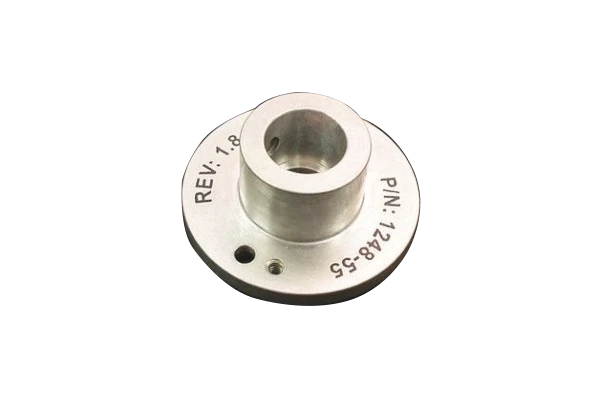

Sample display

Operational Demonstration

【YaoHung耀鋐科技】陽極鋁打黑工藝展示　＃雷射打標 #鋁打黑 #lasermarkingmachine #lasermarking #industrialautomation

耀鋐科技｜文創商品｜客製雷雕禮品—隨身碟雕刻公司行號社團歡迎找我們大量訂購

Technical Parameters

Fiber Laser - FI Series (IPG Germany)
Model	YH-FI20W	YH-FI30W	YH-FI50W
Laser Wavelength	1064nm
Repetition Frequency	2 – 5000 KHZ
Beam Quality	M² ≦ 1.3
Marking Area	70× 70mm 110×110mm 150×150mm 200×200mm 300×300mm (Multiple Options Available)
Engraving Depth	(Depends on Material and Focusing Lens)
Engraving Speed	4.0m/s
Minimum Line Width	0.08mm
Minimum Character Size	0.15mm
Repeat Positioning Accuracy	±0.02 mm
Dedicated Software	Controls X, Y, Z motion axes and rotation axis; supports FPK, PPK, R05 first pulse suppression. One IO communication port for PLC communication. Supports one-axis encoder input for flying marking. Built-in DSP; marking operations do not occupy computer CPU time. 24V input signal, can be directly connected to PLC. Provides MARKING READY, MARKING END, MARKING BUSY signals. Supports offline marking control, capable of managing 16 files, 64 layers, and previewing and counting up to 1024 patterns. Expandable to support large-area marking, 2.5D, 3D, XY platform control, large image stitching, and visual automatic alignment.
Power Supply	220V / 60Hz
Total Power Consumption	650W		700W
Machine Dimensions LWH ±3% (mm)	760 x 600 x 1300 mm (500mm Z-axis) Small Cabinet 760 x 600 x 1600 mm (800mm Z-axis) Small Cabinet 1000 x 1000 x 1300 mm (500mm Z-axis) Large Cabinet 1000 x 1000 x 1600 mm (800mm Z-axis) Large Cabinet 580 x 560 x 620 mm (500mm Z-axis) Desktop Model
Overall Machine Weight ±3%	Small Cabinet Approx. 110kg / Large Cabinet Approx. 150kg / Desktop Model Approx. 60kg
Supported File Formats	All fonts and styles in the Windows operating system font library
